APS-100/400GE Series

APS

Industry's most powerful application and cybersecurity test platform

Buy / Quote

Already own this product? View Technical Support

Meet the APS-100/400GE Series of Application and Cybersecurity Test Platforms

APS-One-100

A single APS-ONE-100 appliance can actively use up to four QSFP28 100GE interfaces per single test configuration to deliver unparalleled TLS and application performance. Powered by hardware-based TLS acceleration, BreakingPoint, with one APS-ONE-100 appliance can generate up to 100K TLS connections per second, 3.2M TLS concurrent connections and 150 Gbps of encrypted throughput, improving the transmission of realistic application mixes over TLS connections.

Managed by the APS-M1010 controller, IxLoad is also supported on the APS-ONE-100 appliance and can scale TLS performances up to 340K TLS connections per second, 4.5M TLS concurrent connections and 180 Gbps of encrypted throughput, enabling advanced L47 network protocol testing.

The APS-100GE/400GE Series supports a flexible 'pay-as-you-go' model: run the APS-ONE-100 appliance in standalone mode or build a stacked system with the APS-M1010 controller or APS-M8400 appliance to craft a solution that meets your current test needs, and then expand as requirements change and budgets allow.

APS-M1010

APS-M1010 controller scales to support up to ten APS-ONE-100 compute nodes, driving hyperscale throughput like 3.4M TLS connections per second, 45M TLS concurrent connections, and 1.78 Tbps of encrypted throughput1 while fanout support for 100/25/10GE preserves the existing test capabilities.​2

Centralized 'single pane of glass' management of up to ten APS-ONE-100 compute nodes simplifies testing and software updates through a single management IP address.​

Unrivaled elephant flow performance of up to 65 Gbps over a single TCP connection​.​3

1 APS-M1010 + 10 x APS-ONE-100 running IxLoad.

2 Fanout modes only supported in BreakingPoint.

3 APS-ONE-100 with BreakingPoint.

For additional information, see the APS-100/400GE Series data sheet.

APS 100 400

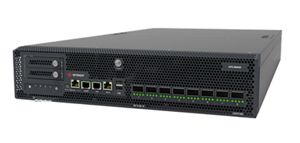

APS-M8400 features ultrafast 8x400GE QSFP-DD native I/O, aggregating up to 16 APS-ONE-100 compute nodes while 200/100/50/40/25/10GE fanout preserves the existing test capabilities​​.

Test at hyperscale performance, generating up to 3.2 Tbps of L47 throughput, 5.1 billion concurrent HTTP connections and 56 million HTTP connections per second.​

Unparalleled encrypted traffic performance capabilities, generating up to 2.4 Tbps TLS throughput, 1.6M TLS connections per second, and 51M TLS concurrent connections.​​

Centralized 'single pane of glass' management allowing testing and software updates through a single management IP​.

Balancing Security + Performance in Hyperscale Networking

Data center operators and service providers face exponential growth in encrypted traffic volumes and continually expanding attack surfaces driven by digital transformations in cloud computing, artificial intelligence, machine learning, and more. 400GE puts further demands on critical infrastructure like NGFWs and application delivery controllers by transmitting traffic at unprecedented speed, making it more critical than ever for data center NEMs and operators validate that their solutions can support these hyperscale loads without sacrificing security and usability.

Keysight Data Center Infrastructure
APS Series application and security test platform

Modular and Flexible Hyperscale Test Platform

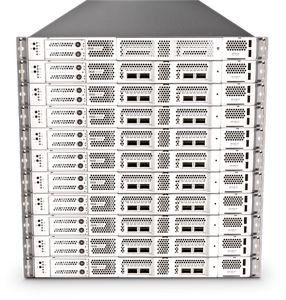

The APS-100/400GE Series employs a modular approach that allows users to stack APS-ONE-100 appliances and scale up to 16 compute nodes all managed by a single APS-M8400 appliance, creating a system capable of driving 5.1 billion of concurrent TCP connections and generating 3.2 Tbps of L47 traffic through Keysight’s industry-leading application delivery and security testing tools.​

What Can Hyperscale, 400GE Capable Testing Do For You?

A single APS-ONE-100 appliance delivers unparalleled TLS performance of up to 100K TLS connections per second, 3.2M TLS concurrent connections, and 150 Gbps of encrypted throughput.1​

Use the APS-M1010 controller to scale up to 10 compute nodes and drive hyperscale throughput like 3.4M TLS connections per second, 45M TLS concurrent connections, and 1.78 Tbps of encrypted throughput.2

Need even more test capacity? Leverage the APS-M8400 appliance and its 8x400GE QSFP-DD native I/O to aggregate up to 16 compute nodes and harness the industry’s most powerful application and security test platform, capable of generating 1.6M TLS connections per second, 51M concurrent TLS connections, and 2.4 Tbps of encrypted throughput.​

1 APS-ONE-100 with BreakingPoint.

2 APS-M1010 + 10 x APS-ONE-100 running IxLoad.

For additional information, see the APS-100/400GE Series data sheet.

Watch this BreakingPoint Ultra-High Performance Test of FortiGate 7121F Enterprise Security Next-Generation Firewall (NGFW)

Watch this BreakingPoint SSL Performance Test of FortiGate 7121F Next-Generation Firewall (NGFW)

Keysight APS-M1010 Controller

Centralized Management

The APS-100/400GE Series features centralized management of up to 10 compute nodes with the APS-M1010, and up to 16 compute nodes with the APS-M8400, creating a single pane of glass view of all devices in a stack while also simplifying both device configuration and installation of software updates.
