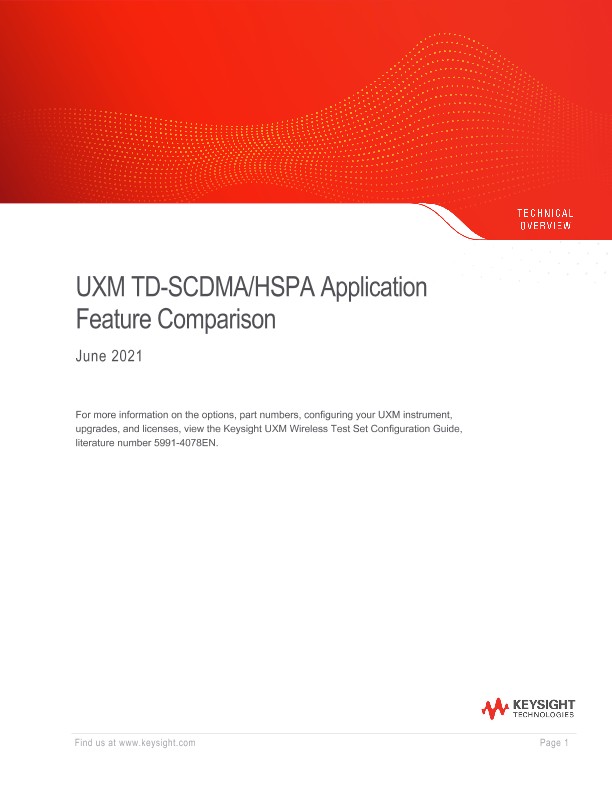

UXM TD-SCDMA/HSPA Application Feature Comparison

TD-SCDMA/HSPA  fundamentals

E7529A test application

First available in revision

Fast switch with TD-SCDMA and W-CDMA ¹

Yes

1.6.1.0

Supported cells = 1

Yes

1.6.1.0

TDD test mode (non-signaling mode)

Yes

1.6.1.0

RB test mode

Yes

1.6.1.0

PS data connections

E7529A-FFP-0P1

1.6.1.0

CW mode

Yes

1.6.1.0

3GPP frequency bands 34, 39, 40, 41

Yes

1.6.1.0

Cell power

Yes

1.6.1.0

UE target power

Yes

1.6.1.0

Closed-loop power control

Yes

1.6.1.0

Channelization codes and relative levels

Yes

1.6.1.0

Dual device parallel RF test in one UXM ²

Yes

1.6.1.0

Dual IP device test in one UXM (e.g. dual-SIM) ²

E7515A-D01, E7529A-FFP-0P1

1.6.1.0

Internal applications server

E7515A-S01

1.6.1.0

Channel emulation (fading)

E7515A-C01

1.6.1.0

Wireshark protocol logging and analysis

E7515A-L01

1.6.1.0

TD-SCDMA/HSPA  data throughput

E7529A test application

First available in revision

PS data connections

E7529A-FFP-0P1

1.6.1.0

Simultaneous services (CS voice + PS data)

E7521A-FFP-0P1

1.6.1.0

One primary PDP context

E7529A-FFP-0P1

1.6.1.0

IPv4

Yes

1.6.1.0

DL QPSK, 16QAM

Yes

1.6.1.0

UL QPSK, 16QAM

Yes

1.6.1.0

DL up to 2.8 Mbps test modes

Yes

1.6.1.0

DL up to 2.8 Mbps end-to-end data

E7529A-FFP-0P1

1.6.1.0

UL up to 2.2 Mbps test modes

Yes

1.6.1.0

UL up to 2.2 Mbps end-to-end data

E7529A-FFP-0P1

1.6.1.0

HS-DSCH UE categories 1-15, E-DCH UE categories 1-6

Yes

1.6.1.0

Data throughput monitor - IP

E7529A-FFP-0P1

1.6.1.0

Data throughput monitor - OTA

Yes

1.6.1.0

HSPA throughput results (not graphical)

Yes

1.6.1.0

TD-SCDMA/HSPA  detailed network behavior

E7529A test application

First available in revision

CS voice page/release

Yes

1.6.1.0

Paging parameters

Yes

1.6.1.0

SMS (MO, MT)

Yes

1.6.1.0

Reference measurement channels (RMC)

Yes

1.6.1.0

Fixed reference channels (FRC)

Yes

1.6.1.0

User-defined DL configuration

E7529A-FFP-0P1

1.6.1.0

Variable RMC

Yes

1.6.1.0

DL configuration based on HS-SCCH detection

Yes

1.6.1.0

DL configuration based on UE reports (CQI)

Yes

1.6.1.0

Cell ID parameters (MCC, MNC, LAC, RAC, cell ID)

E7529A-FFP-0P1

1.6.1.0

Cell reselection parameters

Yes

1.6.1.0

UE timers and constants

Yes

1.6.1.0

Uplink parameters

Yes

1.6.1.0

BCCH call setup parameters

Yes

1.6.1.0

USIM preset and user-defined configurations

Yes

1.6.1.0

UE-reported information

Yes

1.6.1.0

Call status results

Yes

1.6.1.0

Automatic RRC state transitions

E7529A-FFP-0P1

1.6.1.0
