Meet the SL101XA Scienlab BMS (Battery Management System) Environment Series

A BMS assumes important safety, control, and regulation functions. Those functions include monitoring parameters such as voltage, current, temperature, and state of charge (SOC). A BMS also regulates thermal management, energy management, cell balancing, and performance.

The Scienlab BMS Environment from Keysight enables you to test and improve all the above-mentioned functions of the BMS during the BMS development. Instead of real cells, Scienlab Cell Emulators are connected to emulate various cell types including ready-to-use cell-models. The modular system architecture enables individual compilation and flexible control of the system. The emulators are implemented by standardized interfaces into HiL environments such as Vector or dSpace.

  • Safety for personnel and product even in critical operating points — because no real components are used
  • No risk of hazards from the cell chemistry and the electrical energy of the battery
  • Real-time interfaces for fast data transfer (1 Gbps) between the test systems and the HiL system

High Performance for All Your Battery Management System Test Applications

The Scienlab Battery Management Systems (BMS) test solutions leave nothing to be desired:

  • Parameterizable cell models for each cell type
  • Maximum measuring precision and dynamic control
  • Cell temperature through emulation of typical RTD sensors such as PT-100, PT-500, PT-1000, Ni and KTY
  • Battery current sensors (up to ±1000 A at a 100 µOhm shunt)
  • Individually defined errors such as insulation faults at the battery voltage, line breaks, short-circuits, or reverse polarity

Key Specifications

Voltage

0 – 8 V

Current (parallel operation)

±5 A (±10 A)

Power (parallel operation)

±40 W (±80 W)

Measuring Range

up to ±2 µA ±0.05% of measured value

Voltage Set and Measuring Accuracy

< ±0.2 mV (offset), ±0.01% of measured value

Find the Model that is Right for You

Control your SL101XA Scienlab BMS Environment Series via HiL for a model-based test approach.

Already own one of these products? Visit Technical Support

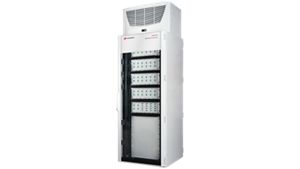

SL1010A Scienlab BMS Environment

  • Cabinet version
  • Up to 240 Cell Emulator Channels
  • Up to 48 CSE Channels
  • Up to 120 TSE Channels
  • Dimensions: ca. 2600 x 1600 x 800 mm

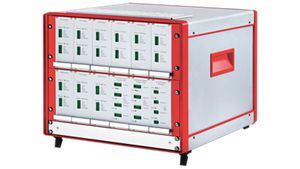

SL1011A Scienlab BMS Environment

  • Bench top version
  • Up to 24 Cell Emulator Channels
  • Up to 24 CSE Channels
  • Up to 48 TSE Channels
  • Dimensions: ca. 400 x 600 x 520 mm

Extend the Capabilities of Your Scienlab BMS Environment

See the further hardware for your test environment for the SL101XA Series. With Keysight, you always have the latest capabilities.
