Meet the SL100XA | SL1133A Battery Test System Cell Level Series

The cell is the basis of any battery system and directly influences its function, performance  and safety. Therefore it is essential to test and characterize the cell at an early development stage. For this purpose, Keysight offers reliable test systems for precise and reproducible measurement results. The Cell Level Series (SL1002A, SL1003A SL1004A, SL1005A, and SL1133A) — also known as Battery Cell Tester — emulates sink and source for battery cells for automotive and industrial applications.

  • Efficient and cost-effective operation because of recovery capabilities for endurance tests with many channels
  • Modular configuration — any number of channels adapts to changing requirements
  • Convenient test bench control with Scienlab Software ESD incl. Test Systems, DUTs, temperature or climate chambers
  • Compact size for space-saving on-site operation
  • Integrated electrochemical impedance spectroscopy (EIS) per channel — programmable directly into the test processes without changing the contacting of the DUT (optional)

HIGH PERFORMANCE FOR ALL YOUR APPLICATIONS

In order to evaluate the properties of future systems and optimize you battery cell, Keysight offers reliable test systems for precise and reproducible measurement results.

Cell Sample Level

  • Characterization, selection, and optimization of cell chemistry and material in R&D (also for HV materials up to 8 V), production and quality assurance
  • Simultaneous characterization of up to several hundred cell specimens, e.g. round cells, button cells, and laboratory cells with a reference electrode
  • Identification of the electrode processes: galvanostatic and potentiostatic test methods, cyclovoltammetry, and more
  • Determination of capacity, energy, power, voltage, internal resistance, efficiency

Cell Level

  • Precise characterization of cells by determining internal resistance, efficiency, capacity, cyclical life span and calendar life, reaction to temperature changes, mechanical resistance
  • Perform extensive standard-compliant and individual tests
  • Perform load and endurance tests

Discover the Features of the Combined Battery Test Solution (CBTS)

Key Specifications

Output voltage:

0...6 V

Output current:

currents between 150 μA up to ±600 A

Current dynamics:

-90% – 90%: 0.8 ms typ.

Current measuring accuracy:

up to 0.05% of the measured value

Want to see more specifications?

Find the Model that is Right for You

Already own one of these products? Visit Technical Support

SL1002A Scienlab Battery Test System – Cell Level

  • Voltage range: 0 – 6 V
  • Output current: ±100 A, ±300 A, ±600 A
    (parallel connection for increasing current and power possible)

SL1003A Scienlab Battery Test System – Cell Level

  • Compact cabinet version
  • Voltage range: 0 – 6 V
  • Output current: ±100 A, ±300 A, ±600 A
    (parallel connection for increasing current and power possible)

SL1004A Scienlab Battery Test System – Cell Sample Level

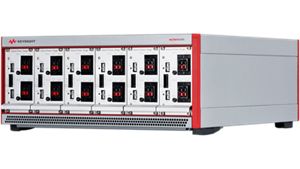

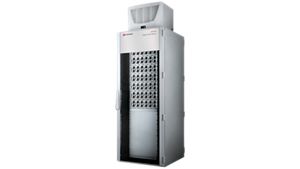

  • Bench top version, also available as cabinet version (SL1005A)
  • Voltage range: -2 – 8 V (or -6 – 6 V)
  • Output current: up to ±5 A (4 current ranges between ±150 μA up to ±5 A)

SL1007A Scienlab Battery Test System – Cell Level

  • Cabinet version
  • Voltage range: 0 – 6 V
  • Current options: 25 A, 50 A, 75 A, 100 A

SL1133A Scienlab Combined Battery Test Solution

  • Space-saving combination of power electronics, test chamber, and DUT holder
  • Voltage range: 6V
  • Current options: 300 A, 400 A, 500 A
