M9309A PXIe Vector Network Analyzer Synthesizer: 187.5 MHz to 6 GHz
The M9309A PXIe Vector Network Analyzer Synthesizer is a component of the M9485A PXIe Multiport Vector Network Analyzer operating from 187.5 MHz to 6 GHz.
The M9309A PXIe vector network analyzer (VNA) synthesizer is a component for the M9485A PXIe multiport vector network analyzer. Control the M9309A through the M9485A software front panel. The M9485A provides a true multiport VNA with up to 12-ports in one chassis and up to 24-ports in two chassis.
- Generate signals between the frequency range of 187.5 MHz to 6 GHz
- Provide maximum output power of +5 dBm
Interested in a M9309A?
Featured Resources for M9309A PXIe Vector Network Analyzer Synthesizer: 187.5 MHz to 6 GHz
Ecal Module Calibration
Data Sheets 2017.12.01

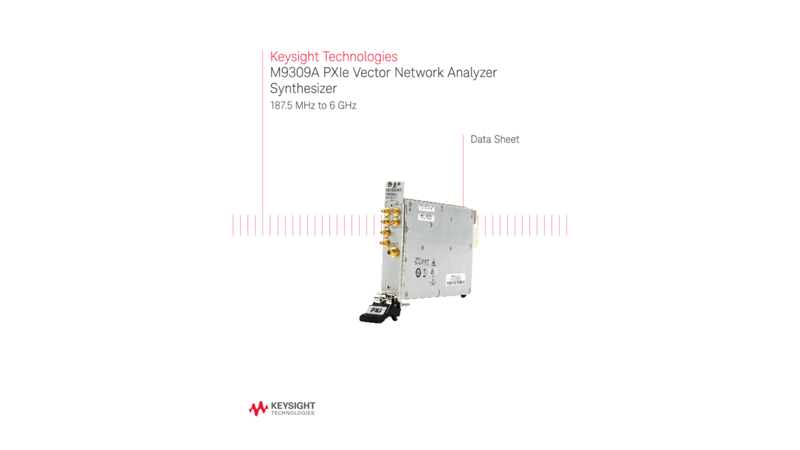

M9309A PXIe Vector Network Analyzer Synthesizer
View All Resources
