HIGHLIGHTS

  • Silicon detector covers wavelength range from visible to infrared: 450 – 1020 nm
  • 5 mm diameter detector for fiber NA to 0.3 and open beams
  • ±2.2% uncertainty at reference conditions
  • Low noise for measurements down to -90 dBm optical power

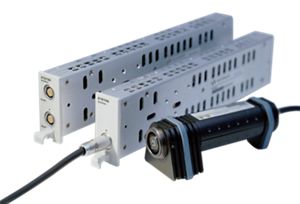

The 8162xB family of optical power heads provide accurate power measurements with a large area detector in a remote head for flexible positioning. Functionality includes averaging time settings from 100 µs to 10 s, automatic power ranging, monitoring of minimum and maximum values and logging up to 20k samples. Fiber adapters are available for common connector types including MT ribbon fiber connectors and bare fiber clamps. (see www.keysight.com/find/octaccessories) The D-shaped adapter type are held magnetically for quick adapter change. The heads also include a removable 81624DD adapter ring for use with the threaded type adapters. The heads are connected to the 816x mainframes using the 81618A single channel or 81619A dual-channel interface module.

8162xB Product Comparison
  81620B 81623B 81624B 81626B 81628B
Sensor element Si, Ø 5 mm Ge, Ø 5 mm InGaAs, Ø 5 mm InGaAs, Ø 5 mm InGaAs
Wavelength range 450 nm to 1020 nm 750 nm to 1800 nm 800 nm to 1700 nm 850 nm to 1650 nm 800 nm to 1700 nm
Power range +10 dBm to –90 dBm +10 dBm to –80 dBm +10 dBm to –90 dBm +27 dBm to –70 dBm (1250nm – 1650nm)
+23 dBm to –70 dBm (850nm – 1650nm)
+40 dBm to –60 dBm (800nm – 1700nm)
Relative uncertainty
-due to polarization
-spectral ripple
(due to interference)
  < ± 0.01 dB
(typ. < ± 0.005 dB)
< ± 0.006 dB
(typ. < ± 0.003 dB)
≤ ± 0.005 dB
(typ. ± 0.002 dB)
≤ ± 0.005 dB
(typ < ± 0.002 dB)
≤ ± 0.005 dB
(typ. ± 0.002 dB)
≤ ± 0.005 dB
(typ. < ± 0.002 dB)
typ. ≤ ± 0.006 dB

Learn more about Keysight Optical Power Measurement



Key Specifications

Mainframe Compatibility
8163B via 81618A or 81619A
8164B via 81618A or 81619A
8163A via 81618A or 81619A
8164A via 81618A or 81619A
Number of Channels
1
Power Range
+10 dBm to -90 dBm
Sensor type
Si, 5 mm diameter
Uncertainty at ref. cond.
± 2.2% (600-1020 nm)
Wavelength range
450 nm to 1020 nm
Mainframe Compatibility
Number of Channels
Power Range
Sensor type
Uncertainty at ref. cond.
Wavelength range
8163B via 81618A or 81619A
8164B via 81618A or 81619A
8163A via 81618A or 81619A
8164A via 81618A or 81619A
1
+10 dBm to -90 dBm
Si, 5 mm diameter
± 2.2% (600-1020 nm)
450 nm to 1020 nm
View More
Mainframe Compatibility:
8163B via 81618A or 81619A
8164B via 81618A or 81619A
8163A via 81618A or 81619A
8164A via 81618A or 81619A
Number of Channels:
1
Power Range:
+10 dBm to -90 dBm
Sensor type:
Si, 5 mm diameter
Uncertainty at ref. cond.:
± 2.2% (600-1020 nm)
Wavelength range:
450 nm to 1020 nm
