Arbitrary Waveform Generation Basics
  • Courses
  • 9 items

This course covers the basics of arbitrary waveform generators (also known as AWGs).

Learn:

  • Applications for an AWG
  • Key AWG specifications
  • How to optimize your waveforms
Lessons
Lesson 1 - Introduction - Arbitrary Waveform Generation Basics

Lesson 1 - Introduction - Arbitrary Waveform Generation Basics

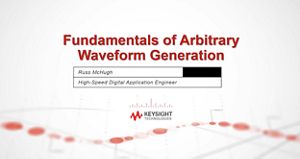

An introduction to the course objectives, topics, and benefits of learning the basics of arbitrary waveform generators (AWGs).

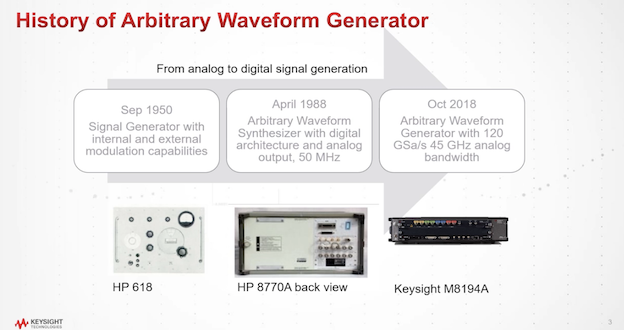

Lesson 2 - Why AWGs?

Lesson 2 - Why AWGs?

Explains the applications and advantages of using AWGs for testing various systems and devices with repeatable, realistic signals.

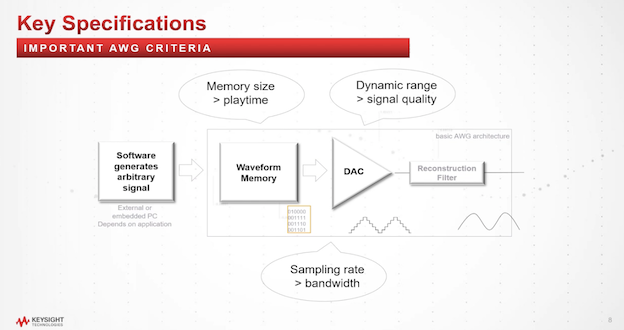

Lesson 3 - Playback Time & Memory Depth

Lesson 3 - Playback Time & Memory Depth

Defines playback time and memory depth and how they affect the duration and resolution of AWG waveforms, and how to optimize them for different signals and applications.

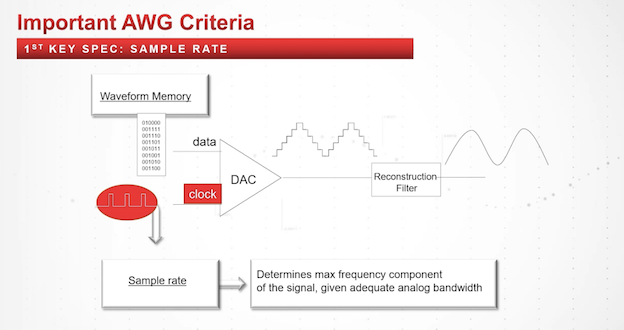

Lesson 4 - Sample Rate

Lesson 4 - Sample Rate

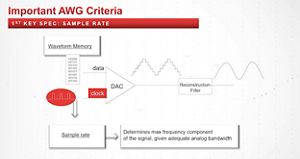

Explains what sample rate is, how it affects the accuracy and bandwidth of AWG waveforms, and how to optimize it for different signals and applications.

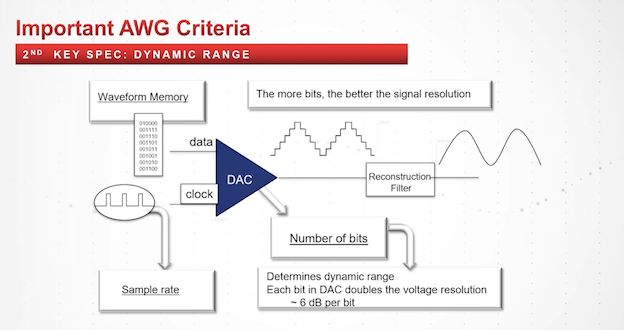

Lesson 5 - Dynamic Range & ENOB

Lesson 5 - Dynamic Range & ENOB

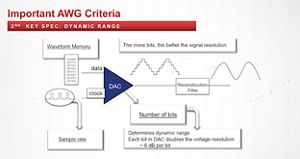

Describes what dynamic range and effective number of bits (ENOB) are, how they affect the fidelity and noise performance of AWG waveforms, and how to optimize them for different signals and applications.

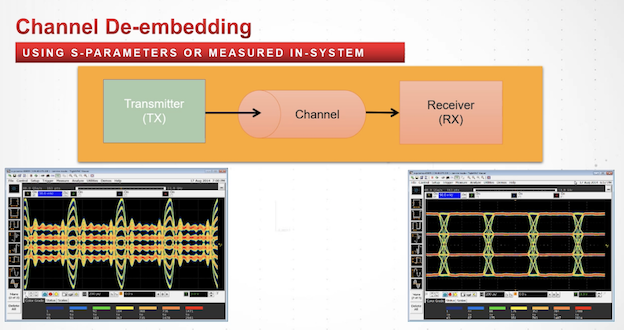

Lesson 6 - Channel Embedding & De-Embedding

Lesson 6 - Channel Embedding & De-Embedding

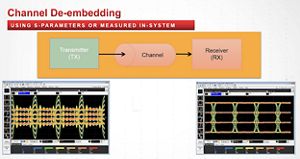

An overview of channel embedding and de-embedding, their impact on signal integrity and AWG waveform distortion, and their versatile applications for various signals and scenarios.

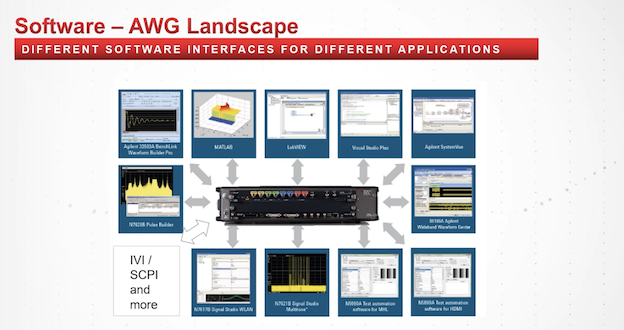

Lesson 7 - Optimize with Software

Lesson 7 - Optimize with Software

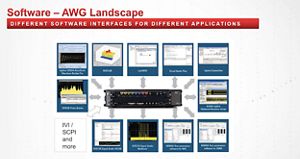

Demonstrates how to use various software tools to automate and optimize the AWG waveform generation process, such as PathWave Signal Generation Software, PathWave BenchVue Software, PathWave Test Automation Software, and PathWave Signal Studio Software.
High-Performance Digital Products

Catalogs

High-Performance Digital Products

Keysight Technologies provides high-performance digital products for testing and validating complex signals in various applications, such as data center, communication infrastructure, consumer technologies, electronic warfare, and quantum computing.
400GE is Revolutionary, not Evolutionary: Overcome 3 Key Challenges in Transceiver Upgrades

eBooks

400GE is Revolutionary, not Evolutionary: Overcome 3 Key Challenges in Transceiver Upgrades

Emerging technologies such as fifth-generation wireless (5G), artificial intelligence (AI), Virtual Reality (VR), Internet of Things (IoT), and autonomous vehicles will generate vast amounts of data in the network, creating new computing, storage and performance demands in the data center. Data center operators need to embrace new technologies to support the response times and high bandwidth that these technologies will require.
Related Product

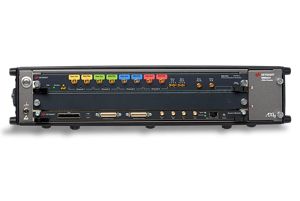

M8194A 120 GSa/s Arbitrary Waveform Generator
