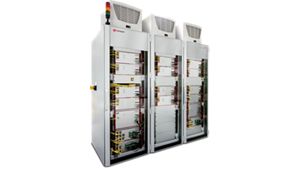

Meet the SL1001A Scienlab Battery Test System – Module Level

The SL1001A Battery Test Systems – Module Level helps you emulate sink and source for battery modules for automotive and industrial applications.

  • Efficient and cost-effective operation because of recovery capabilities even for endurance tests with many channels
  • Module is useable as a cell test system with a relatively constant measurement precision for testing battery cells with up to 6 V (optional)
  • Synchronize Battery Management System (BMS) values as variable or as switch-off criteria directly in the test sequence
  • Direct control of the output source via the BMS

High Performance for All Your Applications

With the interconnection of battery cells to modules further requirements are necessary on your test equipment. Higher tensions and an increase in electrical power is necessary to:

  • Record several temperatures to investigate the reciprocal electrical and thermal influence of the cells
  • Check the mechanical connections and the performance of the module
  • Communicate with the BMS
Scienlab Laboratory

Drive the Future of E-Mobility

Accelerate the development and validation of batteries with Keysight’s Scienlab Battery Test Solutions. From cell chemistry to battery pack Keysight’s holistic approach is your key to success:

Key Specifications

Voltage Range

20 – 300 V

Current Options

100 – 750 A

Power Options

2 – 68 kW

Accuracy

± 0.05% of measured value

Want to see more specifications?

View Data Sheet

Extend the Capabilities of your Scienlab Battery Test System - Module Level

Software
Services
See All Services
Support
See All Support
