Explore Signaling at Higher Speeds and Modulation Levels for 3.2T Research

As data rates push beyond 224 Gb/s, engineers face significant challenges evaluating whether higher‑order modulation formats such as PAM6 and PAM8 are viable at 448 Gb/s speeds. At these extreme baud rates, signal generation itself becomes non‑trivial due to bandwidth limits, waveform fidelity, timing accuracy, and increased sensitivity to noise, linearity errors, and implementation impairments across electrical and optical channels. These 448 Gb/s per‑lane studies form the foundation for future 3.2T electrical and optical interfaces built from multiple high‑speed lanes.

To explore feasibility at 448 Gb/s, engineers need the ability to generate controlled, high‑quality multi‑level PAM waveforms at baud rates such as 174 GBaud PAM6 and 150 GBaud PAM8. This requires ultra‑high‑speed waveform synthesis techniques capable of extending effective signal bandwidth while maintaining precise amplitude and timing control, enabling pathfinding workflows that reveal signal integrity limits, modulation tradeoffs, and achievable performance margins before standards and interoperable ecosystems are established.

448 Gb/s Signal Generation Solution

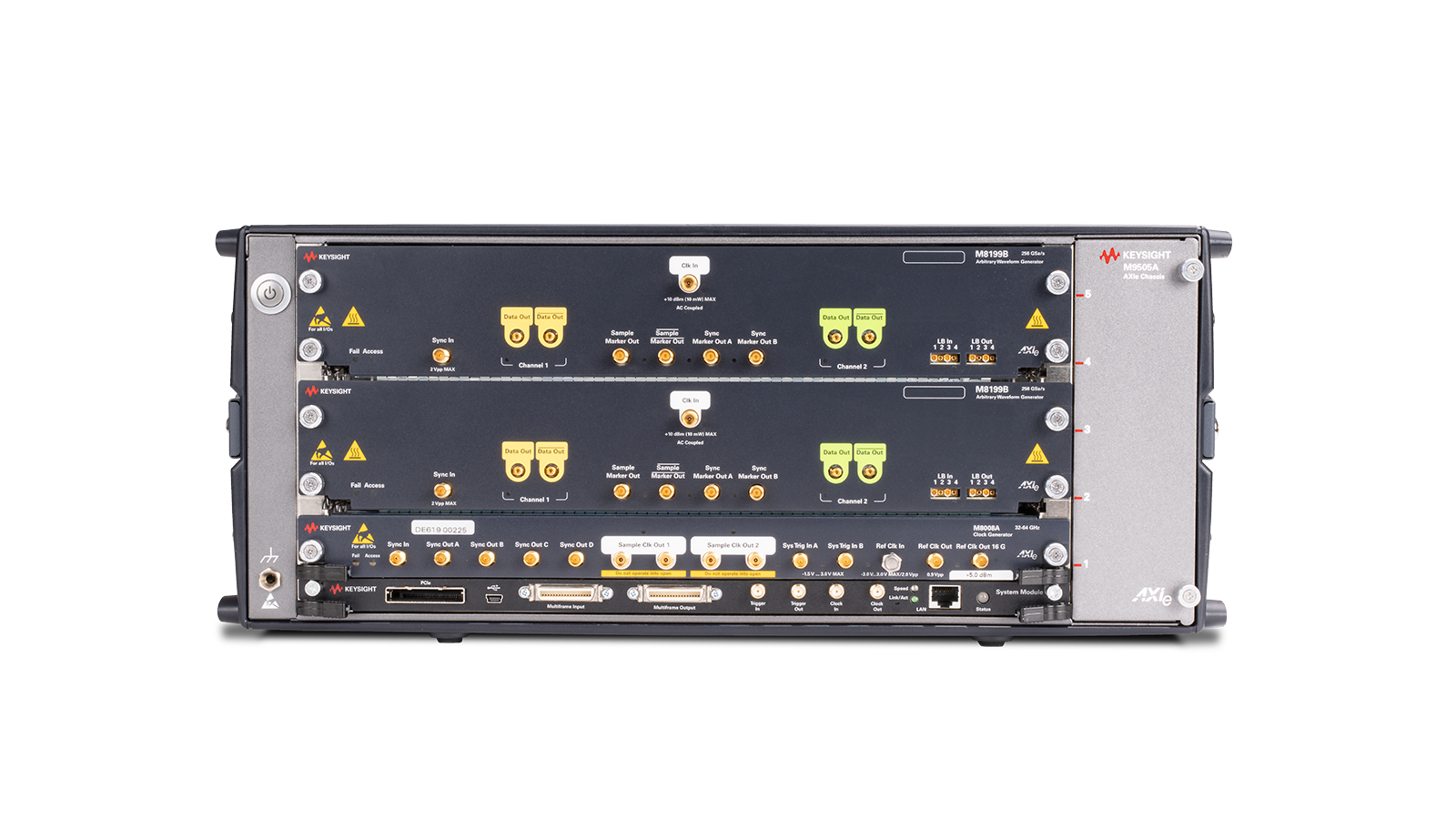

Generating and evaluating 448 Gb/s PAM6 and PAM8 signals requires precise, repeatable waveform synthesis at extreme baud rates to support early‑stage signal pathfinding and feasibility analysis. The Keysight 448 Gb/s signal generation solution includes a 256 GSa/s Arbitrary Waveform Generator combined with a frequency‑domain interleaver unit (FDIU), enabling effective extension of signal bandwidth to achieve ultra‑high baud rates while preserving waveform fidelity. Together, these capabilities allow engineers to generate multi‑level PAM signals that stress real‑world channels, characterize signal integrity and noise tolerance, and inform lane‑count, modulation, and system‑architecture tradeoffs for next‑generation electrical and optical interconnects at 448 Gb/s and beyond.
Get Quote

See a Demo of Our 448 Gb/s PAM Pathfinding Solution

Explore Products for Our 448 Gb/s PAM Signal Generation Solution
