Highlights

Keysight nanoVTEP is the smallest vectorless test probe in the industry

As devices got smaller, the amplifier used in VTEP testing become too big to use. Keysight NanoVTEP Vectorless Test Solutions offer more robust analysis with a smaller foot print. Keysight devised a way to test the smaller, less powerful signals emitted by these devices.

  • miniaturized amplifier allows you to perform vectorless test on electronic devices as small as 4 mm by 4 mm, a 60% reduction in footprint compared to a VTEP probe
  • slim profile allows you to implement vectorless testing in high density fixtures, thereby increasing coverage and fault detection rate in the test process
  • Increased both test coverage and fault detection with miniaturized test probe that overcome placement challenges in high density fixtures
VTEP Vectorless Test Solution has discontinued on 30th Dec 2020. And Keysight is committed to assist the customer in the transition process to serve your business needs in the future.

Meet the All-New NanoVTEP Gen 2
(Coming Soon)

Assembling the barrel and receptacle of the nanoVTEP will soon become a whole lot easier with nanoVTEP Gen 2. The new and improved nanoVTEP Gen 2 features a redesigned barrel, receptacle, and spring clip that enhances your assembling experience.

  • New Barrel - New locking mechanism with tactile feedback.
  • New Receptacle - Tight fit design
  • New Spring Clip - Improved spring clips with a stronger gripping force

Stay tuned to this page for more information that is coming your way.

N4333A/N4333C Vectorless Test Products

NanoVTEP Vectorless Test Signal Conditioner Card

N4333B-001/002, NanoVTEP Signal Conditioner Card, pack of 1/10. (e-Commerce PN: N4334B)

NanoVTEP Signal Conditioner Card, pack of 1 and 10. option. Each nanoVTEP probe is wired to a port on a Signal Conditioner Card (mux card) with two wires, a signal and a ground. The mux card improves the signal quality and reduces the number of test resources required.

NanoVTEP Vectorless Test Sensor Plate

N4333A-405/406, NanoVTEP Sensor Plate, Single Probe, 0.4 inches/10mm, Pack of 50 & 200. (e-Commerce PN: N4339A)

Sensor plate for nanoVTEP application, suitable for testing device geometry up to 0.4”/10mm in size.

NanoVTEP receptacle for vectorless test

N4333A-A01, NanoVTEP receptacle, Pack of 50. (e-Commerce PN: N4346A)

For a single probe application, the receptacle is used to secure the nanoVTEP amplifier assembly.

NanoVTEP ConnectCheck Signal Conditioner Card

N4333B-102, NanoVTEP/ConnectCheck Signal Conditioner Card, pack of 10. (e-Commerce PN: N4348B)

Connect Check uses the intrinsic pin protection diodes of the device-under-test to verify contact between the device and the PC board. Only available for MUX system.

NanoVTEP Sensor Plat for Vectorless Solution

N4333A-501/502, NanoVTEP Sensor Plate, 1.2 inches/30.5mm, Pack of 20 & 100. (e-Commerce PN: N4340A)

Sensor plate for nanoVTEP application, suitable for testing device geometry up to 1.2”/30.5mm in size.

Spring probes for vector less solution

N4333A-801, Spring probes, Pack of 100. (e-Commerce PN: N4345A)

Spring probes are used in conjunction with sensor plates larger than 10mm for better contact.

NanoVTEP Spring Chip

N4333A-701, NanoVTEP Spring Clip, Pack of 50. (e-Commerce PN: N4344A)

NanoVTEP Spring Clip, pack of 50.

NanoVTEP amplifier for Vector Testing

N4333A-301, NanoVTEP amplifier, pack of 50. (e-Commerce PN: N4336A)

Miniaturized nanoVTEP amplifier for vectorless testing, designed to be assembled with various sensor plate sizes without the need to perform additional soldering.

NanoVTEP barrel with spring clip

N4333A-601, NanoVTEP barrel with spring clip, Pack of 50. (e-Commerce PN: N4343A)

NanoVTEP barrel with spring clip, pack of 50.

NanoVTEP Sensor Plate for Vector Testing

N4333A-401/402, NanoVTEP Sensor Plate, Single Probe, 0.16 inches/4mm, pack of 50 & 200 (e-Commerce PN: N4337A)

Smallest sensor plate for nanoVTEP application in high density fixture, 0.16” x 064mm x 4mm

NanoVTEP sensor plate N4333A-505

N4333A-505, NanoVTEP sensor plate, 12.5mm X 152mm, Pack of 10. (e-Commerce PN: N4342A)

Sensor plate for nanoVTEP application, suitable for testing device geometry up to 12mm x 152mm in size.

NanoVTEP Sensor Plate N4333A-403/404

N4333A-403/404, NanoVTEP Sensor Plate, Single probe, 4mmx6.65mm, Tant. C/D, Pack of 20 & 100 (e-Commerce PN: N4338A)

Sensor plate for nanoVTEP application, 4mm x 6.65mm, suitable for testing tantalum chip size C/D

N4333A-503/504, NanoVTEP Sensor Plate, 2.5 inches/63.3mm, Pack of 10 & 50 (e-Commerce PN: N4341A)

Sensor plate for nanoVTEP application, suitable for testing device geometry up to 2.5”/63.3mm in size

N4333A-201/202,NanoVTEP probe full kit without assembly, Pack of 100/250. (e-Commerce PN: N4335A)

NanoVTEP probe full kit without assembly, Pack of quantity 100 and 250 options. With a smaller physical profile, nanoVTEP enables greater opportunity for vectorless test implementation on high density boards when fixture clearance is a premium. The amplifier is to be placed ideally above the device under test, providing a shorter signal path for better signal measurement with less distortion.

N4333A-211,NanoVTEP, pre-assembled barrel, amplifier and spring clip, pack of 50(e-Commerce PN: N4347A)

NanoVTEP pre-assembled barrel, amplifier and spring clip, Pack of quantity 50.. With a smaller physical profile, nanoVTEP enables greater opportunity for vectorless test implementation on high density boards when fixture clearance is a premium. The amplifier is to be placed ideally above the device under test, providing a shorter signal path for better signal measurement with less distortion. This is a 3-in-1 unit to ease manual assembly at fixture house.

Q4036A-001/010,NanoVTEP Mini Signal Conditioner Board pack of 1/10 (e-Commerce PN: Q4036A)

NanoVTEP Mini Signal Conditioner board has 16 ports to connect to 16 NanoVTEP probes.

This board has two 3.175 mm holes, which allow the MUX card to be mounted on the probe plate(s) with two screws and two standoffs/spacers.

NanoVTEP Gen 2 barrel with spring clip

N4343C-050, nanoVTEP Gen 2 barrel with spring clip, pack of 50. (e-Commerce PN: N4343C)

An enhanced version of the barrel with a spring clip. Additional ring on the barrel body to lock the receptacle.

It has to assemble in pair with Gen 2 receptacle.



NanoVTEP Gen 2 barrel with spring clip

N4346C-050, nanoVTEP Gen 2 receptacle, pack of 50. (e-Commerce PN: N4363C)

An enhanced version of the receptacle. Upgrade to tight fit design to increase holding force.

It has to assemble in pair with Gen 2 barrel with a spring clip.

NanoVTEP Gen 2 barrel with spring clip

N4347C-050, NanoVTEP Gen 2, pre-assembled barrel, amplifier and spring clip, pack of 50 (e-Commerce PN: N4347C)

A pre-assembled version of Gen 2 barrel with amplifier. No version change in the amplifier.

It has to assemble in pair with Gen 2 receptacle.



NanoVTEP Gen 2 barrel with spring clip

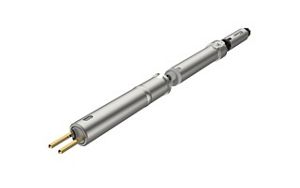

N4335C-100, NanoVTEP Gen 2 probe full kit without assembly, pack of 100. (e-Commerce PN: N4335C)

Full set but a loose kit of Gen 2 barrel with amplifier (no version change), Gen 2 barrel with spring clip and receptacle.

Find THE NanoVTEP Vectorless Test Model That's Right for You
