Vision X 400G
Scalable visibility for data centers today and tomorrow
Already own this product? Visit Technical Support
Highlights
- Easy-to-use web interface with point-and-click functionality
- Unlimited packet processing power including deduplication
- Highly resilient, active-active inline and out-of-band capabilities
- Built-in line-rate filtering and lossless processing capabilities
- Flexibility with up to 54 multispeed ports ranging from 10 to 400G per chassis
Note: Pricing is for Information purposes only and can vary by country. Contact your local Keysight/Channel Partner for local market process prices. US In-country Sales Only
- Simultaneous inline and out-of-band monitoring capabilities
- Supports Keysight Vision Orchestrator (KVO)
- Supports full feature set of PacketStack (PS) and PacketStack Plus (PS+)
- 3 RU
Unlimited Performance, Zero Dropped Packets

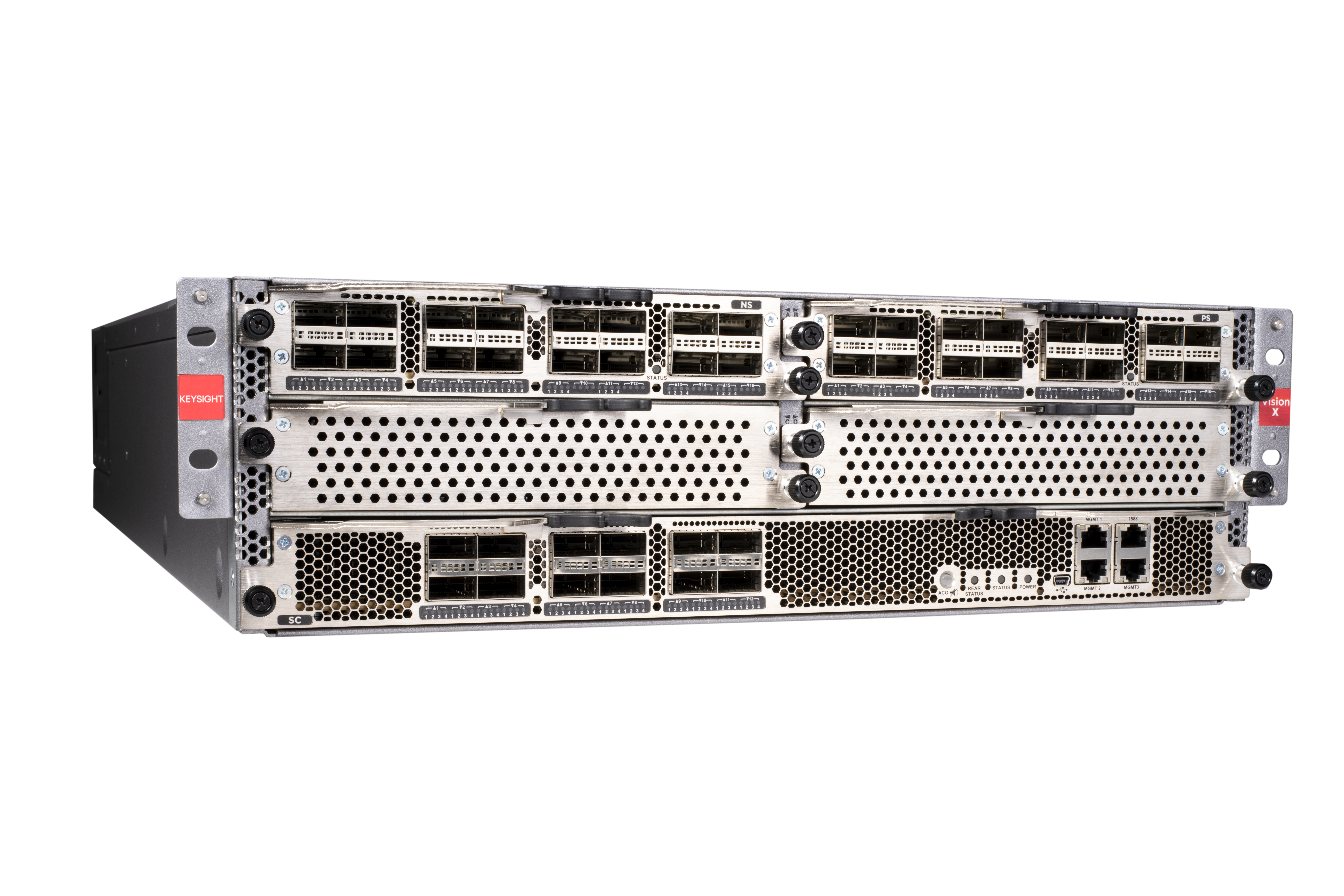

Vision X 400G
Vision X 400G is Keysight's high-performance, high-density network visibility solution. In only three rack units, you can get up to 54 multispeed ports ranging from 10 to 400G. Each chassis provides up to 2Tbps of advanced packet processing capability (deduplication, stripping etc.) through dedicated FPGA hardware — so you can guarantee no packets are dropped, ever. With customizable, swappable module bays, Vision X 400G scales with your needs without expanding its footprint.
Vision X 400G is a continuation of Vision X product family with a new 400G switch card. Existing Vision X can be upgraded to Vision X 400G by purchasing the new Vision X 400G switch card. All existing modules and features will continue to work under the new switch card. Your past investment is fully protected.

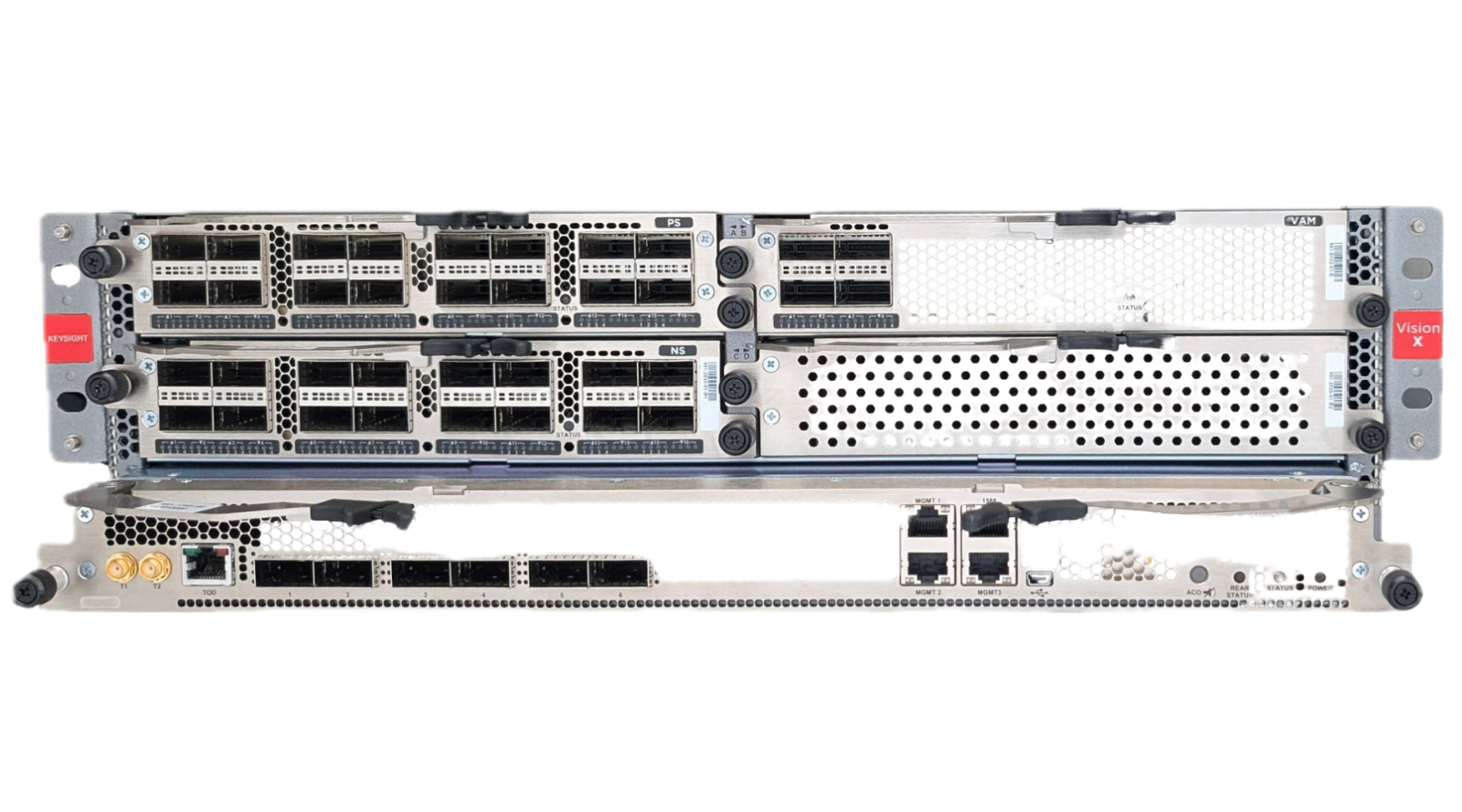

With the new switch card, the chassis offers up to 48 QSFP28 ports and 6 QSFP-DD ports. Each QSFP-DD pot can fan-out to 2x200G, 4x100G, 2x (100/40G), or 8x(10/25/50G). It also offers full feature set provided by PacketStack Plus (PS+), including unlimited deduplication, protocol header striping, MAC/IP rewrite, packet trimming and timestamping. With Vision X 400G, scalability reaches new height.
Key Specifications
TAA Compliant
Yes
Max Backplane Capacity
12.8 Tbps
Max Number of 10 Gb Ports
240
Max Number of 40 Gb Ports
76
Max Number of 100 Gb Ports
72
Max Number of 400 Gb Ports
6
Want to see more specifications?
Built For Your Next-Generation Network
Maintain visibility as your data center evolves with the Vision X 400G network packet broker. Next-generation technology upgrades are simple without replacing your existing security and monitoring tools.
Vision X 400G enables you to see the data on your network. This gives you the information you need to make better business decisions and keep your network running smoothly today, tomorrow, and in the future.
Mobile Core Visibility With Vision X 400G
Mobile network operators get customized visibility flows with highly-accurate subscriber detection and load balancing at scale. Find out more on the MobileStack page.
Inline and Out-of-Band Capabilities
INLINE SECURITY
Inspect live traffic for malware and attacks without risk to network availability. Keysight's solution for inline security ensures continuous security monitoring with fast failover and the ability to upgrade security solutions without downtime.
Out-of-Band Monitoring
Deliver network traffic to your out-of-band monitoring tools with speed and accuracy. Keysight's dynamic filtering engine makes it easy to identify relevant interactions, even as your network grows and changes.
Visibility Intelligence
Stack up Keysight’s leading visibility intelligence features to optimize your traffic analysis and security tool performance. Used with a network packet broker, virtual or cloud platform, the extensive set of intelligent features allows you to modify, mold, and transport traffic specific to tool needs. Each feature is executed with a purpose-built design to ensure you get the best performance whether in a physical data center or the cloud. To learn more, click on each stack.
PacketStack
Intelligent packet filtering, manipulation, and transport with deduplication, header (protocol) stripping, packet trimming, and burst protection
SecureStack
Optimized handling for secure traffic with active SSL, passive SSL decryption, threat insights and data masking
AppStack
Context-aware, signature-based application layer filtering with application identification, geolocation & tagging, and optional RegEx filtering
MobileStack
Visibility intelligence tailored for the mobile carrier evolved packet core with GTP & SIP correlation and load balancing
Interested in a Vision X 400G Network Packet Broker?
Extend the Capabilities of Your Vision X Network Packet Broker
