Customizable, High-Performance PXIe Signal Generator

Based on the PXIe industry standard, the Keysight M9383A PXIe microwave signal generator is flexible enough to solve your immediate test needs, and upgradable for what comes next – whether that's testing at higher frequencies or shifting to high volume production.

  • Modular test solution for design validation that can be efficiently leveraged into manufacturing
  • Flexible design offers rapid and easy upgrades
  • Supports a variety of uses from LO and blocking applications to 5G test
  • Keysight PathWave Signal Generation software simplifies the creation of 5G NR waveforms

High-Performance Foundation for Advanced Measurement

  • Achieve a complete stimulus and response solution by placing the M9383A microwave signal generator side-by-side with other PXIe instruments
  • Get fast waveform loading and tuning speed from high-speed Gen3 backplane in the M9019A chassis
  • Run the newest instrument control software with the powerful M9037A high-performance embedded controller
M9383A Hardware, High-performance foundation for advanced measurements

Key Specifications

Download Data Sheet
Frequency
1 MHz to 44 GHz
Output Power @1 GHz
+19 dBm
Frequency Switching (Typical)
250 µs (nom)
Harmonics @1 GHz
-46 dBc
Phase Noise @1 GHz (20 kHz offset)
-118 dBc/Hz (10 kHz offset)
Type
Vector
Frequency
Output Power @1 GHz
Frequency Switching (Typical)
Harmonics @1 GHz
Phase Noise @1 GHz (20 kHz offset)
Type
1 MHz to 44 GHz
+19 dBm
250 µs (nom)
-46 dBc
-118 dBc/Hz (10 kHz offset)
Vector
View More
Bandwidth Options:
40, 160, 500 MHz, 1 GHz
Baseband Generator Mode:
Waveform Playback
Frequency:
1 MHz to 44 GHz
Frequency Options:
14, 20, 31.8, 44 GHz
Frequency Switching (Typical):
250 µs (nom)
Harmonics @1 GHz:
-46 dBc
Non-Harmonics @1 GHz:
-45 dBc
Output Power @1 GHz:
+19 dBm
Performance Level:
◆◆◆◆◇◇
Phase Noise @1 GHz (20 kHz offset):
-118 dBc/Hz (10 kHz offset)
Sweep Mode:
Step
Type:
Vector
Waveform Playback Memory:
1024 MSa

PathWave Signal Generation Software

PathWave Signal Generation software is a flexible suite of signal-creation tools that will reduce the time you spend on signal simulation. Its performance-optimized reference signals - validated by Keysight - enhance the characterization and verification of your devices.

  • Create performance-optimized reference signals
  • Validate component, transmitter, and receiver testing
  • Ensure designs meet latest standards
  • Speed signal creation and reduce simulation time
Download Brochure
Pathwave signal generation software
M9383A Signal Generator

Interested in a M9383A?

Extend the Capabilities

Software
See Related Software
Accessories
See Related Accessories
Services
See All Services
Support
See All Support

Featured Resources

Data Sheets 2023.05.10

M9383A PXIe Microwave Signal Generator

M9383A PXIe Microwave Signal Generator

The M9383A PXIe microwave signal generator is a compact modular instrument that provides frequency coverage from 1 MHz to 44 GHz, up to 1 GHz RF modulation bandwidth with an internal baseband generator, and over 2 GHz RF modulation bandwidth with external I/Q inputs. Based on the PXIe industry standard, the M9383A is highly configurable and expandable. The smallest configuration, a 14 GHz analog signal generator, can be used in simple LO or blocking applications, and the largest configuration, a 44 GHz vector signal generator, can be used for 5G applications. Many other configurations are possible, allowing the M9383A PXIe microwave signal generator to be customized for specific application requirements.

2023.05.10

Technical Overviews 2023.02.15

Selecting a Signal Generator

Selecting a Signal Generator

This guide provides an overview and side-by-side comparisons to help determine which signal generator is right for you.

2023.02.15

Application Notes 2018.01.11

Understanding Phase Noise Needs and Choices in Signal Generation

Understanding Phase Noise Needs and Choices in Signal Generation

Learn about phase noise signal generator fundamentals and ways to optimize phase noise for your application.

2018.01.11

White Papers 2023.01.10

4 Tips for 5G New Radio Signal Creation

4 Tips for 5G New Radio Signal Creation

5G NR require you to think differently about how you design and test devices. Learn the four tips to help you successfully generate 5G NR test signals to get your designs to market faster.

2023.01.10

Application Notes 2020.05.12

Receiver Test: Overcoming Five Fundamental Challenges

Receiver Test: Overcoming Five Fundamental Challenges

Learn how to address five fundamental challenges in the development of wireless receivers.

2020.05.12

Application Notes 2018.10.17

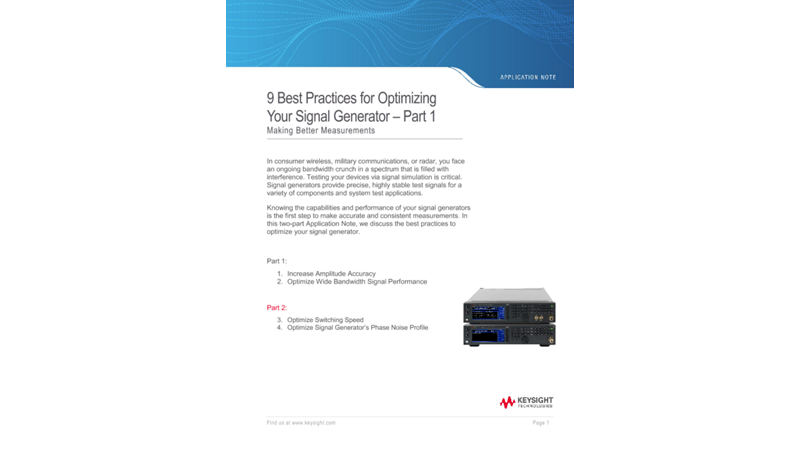

9 Best Practices for Optimizing Your Signal Generator – Part 1

9 Best Practices for Optimizing Your Signal Generator – Part 1

Knowing the capabilities and performance of your signal generators is the first step to make accurate and consistent measurements. In this two-part Application Note, we discuss the best practices to optimize your signal generator.

2018.10.17

Application Notes 2018.10.18

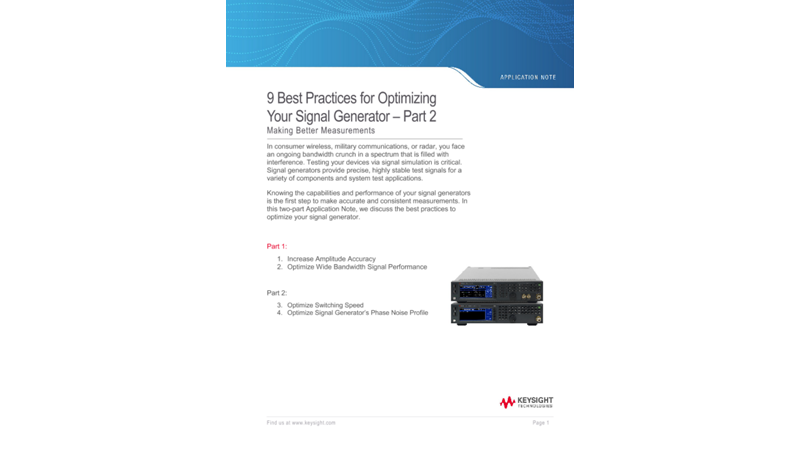

9 Best Practices for Optimizing Your Signal Generator – Part 2

9 Best Practices for Optimizing Your Signal Generator – Part 2

Knowing the capabilities and performance of your signal generators is the first step to make accurate and consistent measurements. In this two-part Application Note, we discuss the best practices to optimize your signal generator.

2018.10.18

White Papers 2018.10.29

AWGN Noise and Phase Noise – Simplify Performance Tests

AWGN Noise and Phase Noise – Simplify Performance Tests

Learn what the AWGN and phase noise are and how to apply the noise to the desired signal for receiver characteristic and performance test.

2018.10.29

Configuration Guides 2018.12.09

M9383A PXIe Microwave Signal Generator

M9383A PXIe Microwave Signal Generator

This configuration guide helps you select performance options, accessories and services for the M9383A PXIe microwave signal generator - up to 44 GHz, 1 MHz BW

2018.12.09

Technical Overviews 2022.08.10

Millimeter Wave Frequency Extenders from Virginia Diodes Inc

Millimeter Wave Frequency Extenders from Virginia Diodes Inc

Keysight microwave signal generators, when paired with frequency extenders from Virginia Diodes, Inc., provide capabilities up to 1.1 THz to meet existing and emerging millimeter wave applications.
