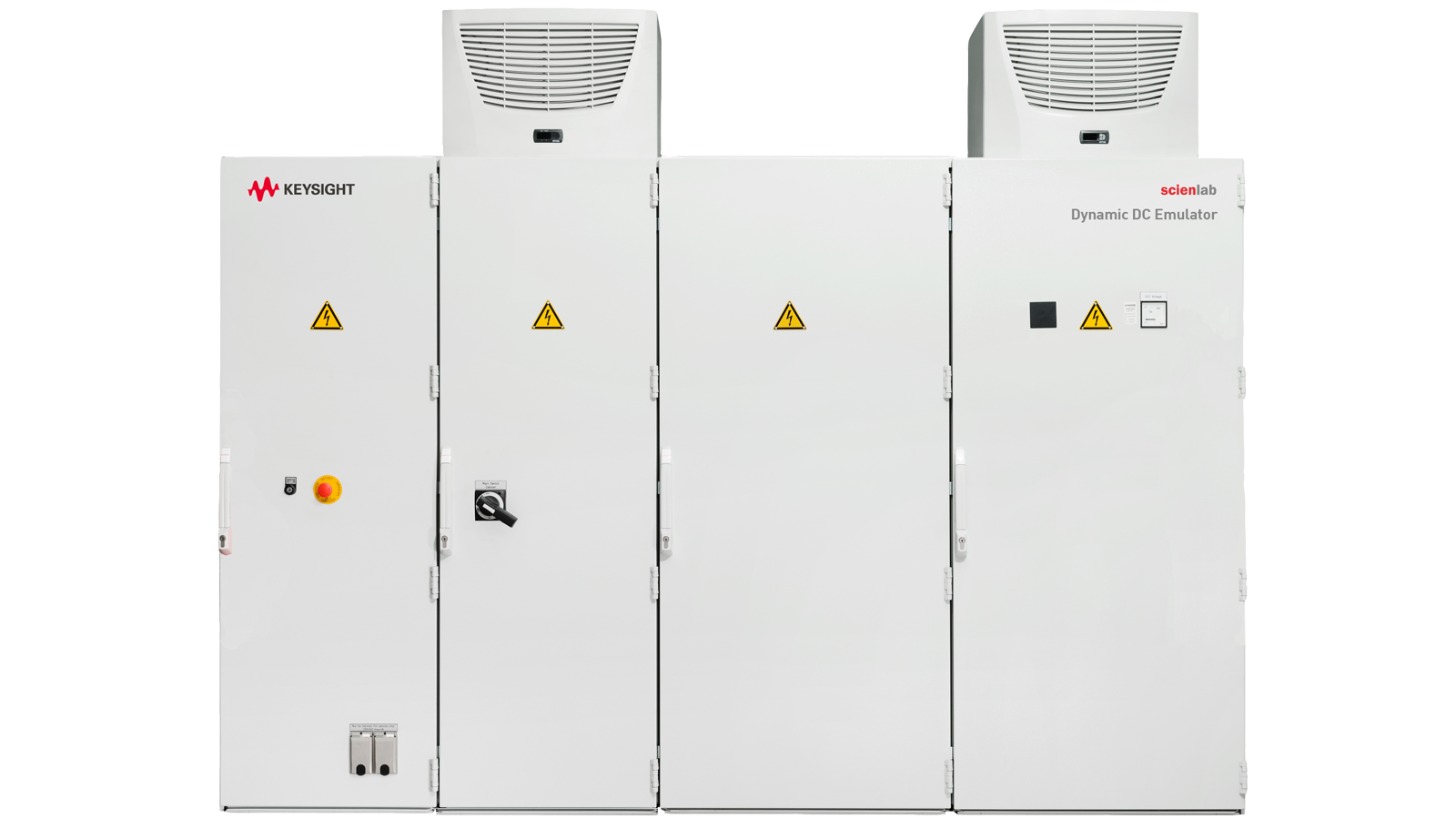

SL104XX Series Scienlab Dynamic DC Emulator
Highlights
Meet the SL104XX Series
The Scienlab Dynamic DC Emulator provides an all-in-one system for efficient and effective testing of the power electronic components in electric vehicles (EV) and electric vehicle supply equipment (EVSE).
- Test your power electronics and charging technology efficiently
- Covers high voltage and 48 V applications testing
- Capable to perform bi-directional mode testing, enabling EV emulation as a sink, or charging infrastructure as a source
- Capable of real-time test
- Emulate any EV and EVSE through an openly accessible state machine
- Increase the power through parallel connection of several emulators
High Performance System for All Your Applications
Use the Scienlab Dynamic DC Emulator Series from Keysight for various applications:
- Test power electronic components and systems for maximum failure safety, energy efficiency, and quality
- Emulate batteries using an integrated battery model
- Test in bi-directional mode, enable EV emulation as a sink, or charging infrastructure as a source to investigate their interoperability in combination with the Scienlab Charging Discovery System (CDS) from Keysight
- Validate the DC charging processes

Key Specifications
High-Power Series
up to 1000 V, 1800 A, 360 kW
48 V Series
up to 80 V, 1200 A, 44 kW
Voltage / Current Accuracy
± 0.05% of setpoint ± 0.02% FS
Energy Efficiency
> 90%
Find the Model that's Right for You
Prev

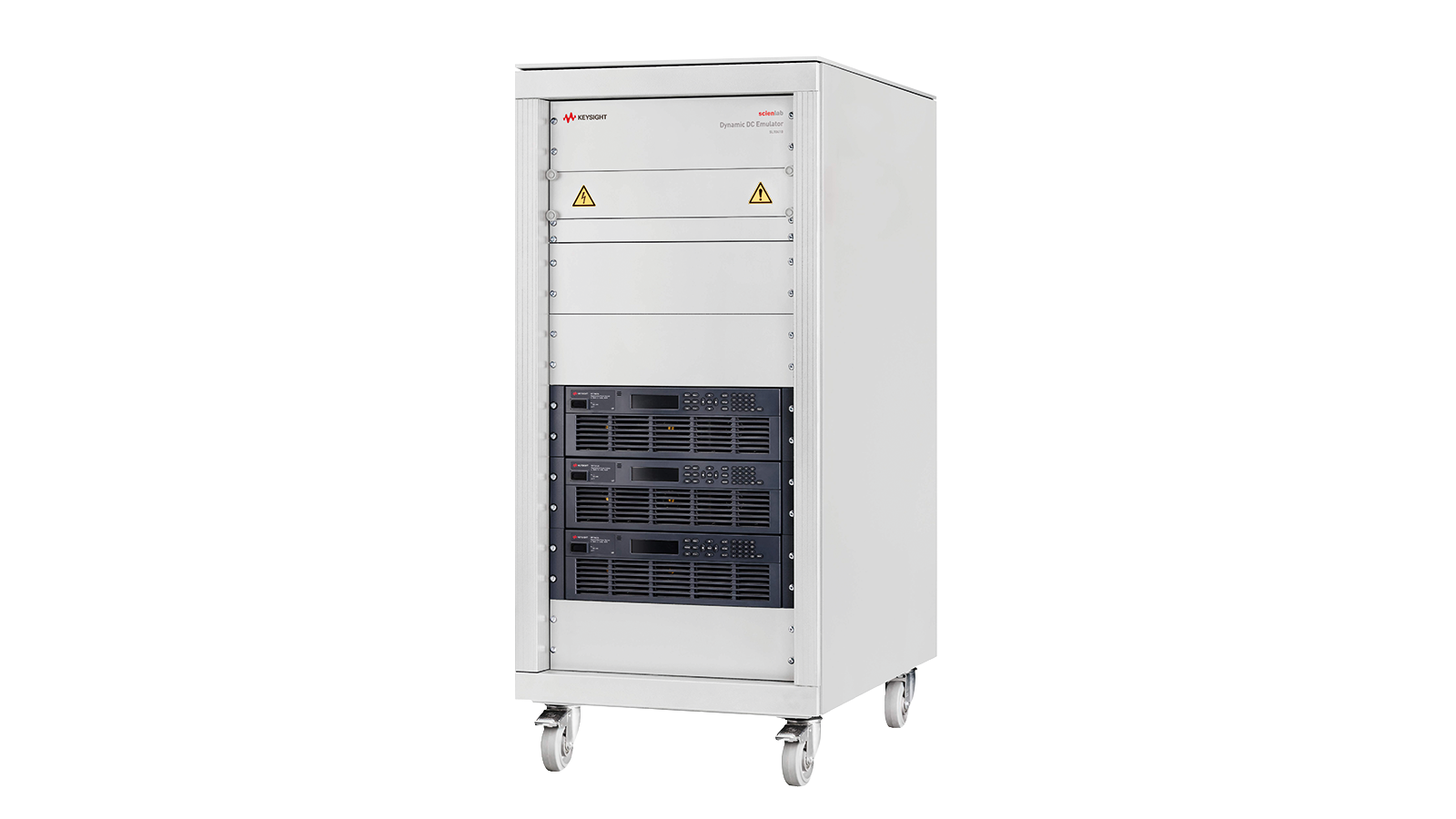

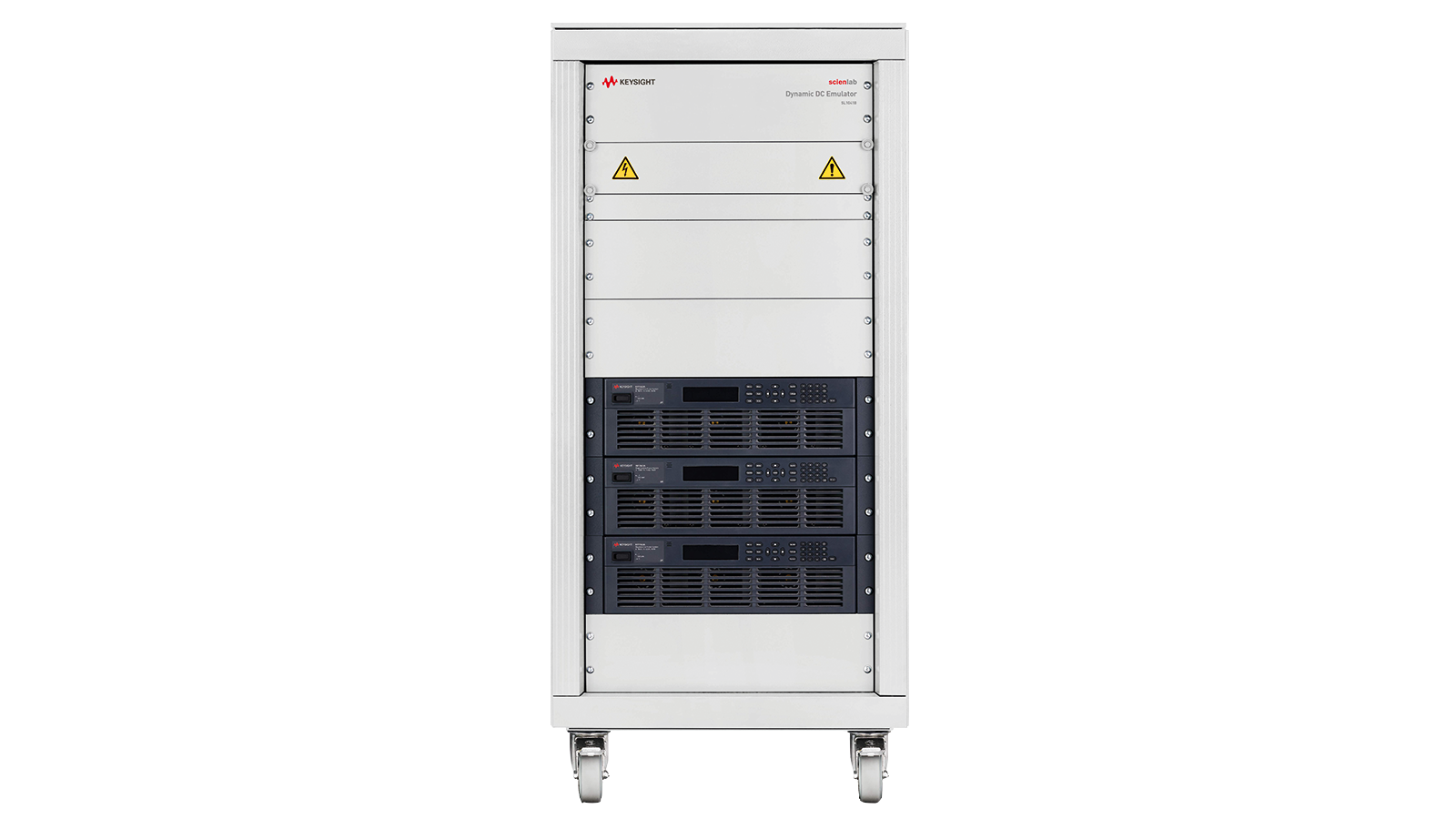

The Scienlab Dynamic DC Emulator Mid-Power Series from Keysight provides up to five power stages, called Regenerative Power Systems (RP79xx series). It is a family of bi- directional, regenerative DC power supplies.
The Scienlab Dynamic DC Emulator (DCE) is an electric system which is designed to emulate batteries for automotive applications.
The Scienlab Machine Emulator from Keysight emulates the characteristics of electrical machines. It enables you to operate and test your traction inverters independently of its real environment.
Next
