N7623A Signal Studio for DV

Signal Creation

• Single-carrier DVB-T/H/C
• Set channel spacing, transmission mode, and modulation type
• Choose raw or hierarchical coded data (outer/inner encoding and interleaving)
• Supports MPEG file source data to monitor video at the receiver

Signal Generator Control and Additive Impairments

• Compatible signal generators: E4438C ESG, E8267D PSG
• Control frequency and amplitude
• I/Q impairments, static fading, and real-time AWGN
• Real-time fading with Baseband Studio

Automation and Communication Interface

• Automate test with .net API and SCPI
• API HELP system
• 10BaseT LAN and GPIB

Other Features

• Graphs: I(t), Q(t), I(t)+Q(t), P(t), spectrum, CCDF
• Embedded HELP

Create standard-compliant DVB-T/H/C waveforms

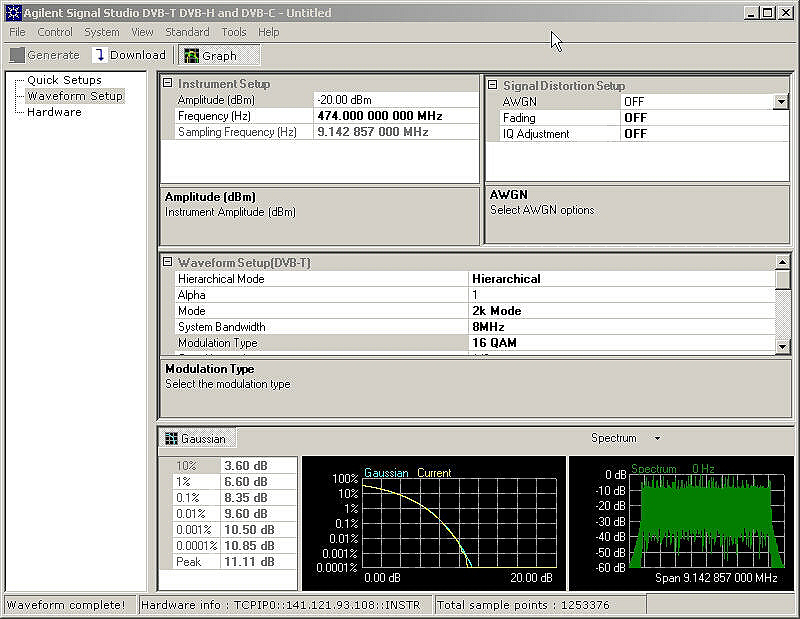

Signal Studio for DVB enables you to easily create DVB-T, DVB-H, and DVB-C waveforms. Playback your waveforms using the E4438C ESG or E8267D PSG, high-performance vector signal generators that supports a wide range of applications including cellular and wireless connectivity communications. From a simple graphical user interface specify channel coding and modulation parameters, OFDM frame structure, and TPS information to create DVB signals that meet your specific receiver and component test needs.

Test DVB-H handheld devices
Engineers incorporating digital TV into handheld devices can create test signals in compliance with the new DVB-H standard. Generate waveforms for use in BER tests using a general-purpose instrument that also supports a variety of mobile and wireless connectivity formats.

Evaluate DVB-T/C receivers
Verify receiver performance by adding real-time AWGN and I/Q impairments to fully channel coded DVB-T/H/C signals. Or, monitor video at the receiver by supplying your own MPEG file as source data.

Typical applications
Test power amplifiers, filters, modulators, and other system components using statistically correct DVB-T/H/C test signals to make measurements such as power efficiency, linearity, and frequency accuracy. Test receivers with channel coded DVB test signals that can be used for bit error rate (BER) analysis before Viterbi decoder, and before and after RS decoder.

1. National Instrument GPIB card users must install a patch for Keysight IO Libraries 14.1 or 14.2 (see FAQ).
