Highlights

Communication signals continue to evolve as new and emerging wireless standards are defined and deployed. Next generation standards have wider bandwidth and added complexity. They are also time variant and low power. Traditional methods of monitoring communication signals from outside the city limits, within a crowded vehicle, or walking with a handheld analyzer will not support these new standards.

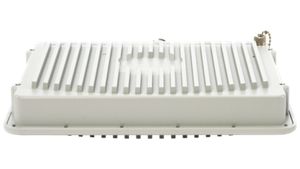

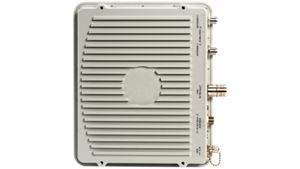

The Keysight N6841A RF Sensor enables you to place an RF spectrum monitoring station wherever and whenever you need it, and for as long as you need it, without location constraints or physical infrastructure.

  • Automate wide area, close-proximity signal monitoring, interference detection, identification, location, and reporting
  • Increase flexibility — set up rugged, portable RF sensors in fixed, temporary, or mobile platforms in any environment for extended time
  • Remotely deploy a single sensor or a network of sensors synchronously, country- or city-wide
  • Customize for your application with software for spectrum monitoring, emitter location, signal intercept, and capture/analysis
  • Acheive high reliability in indoor and outdoor environments
  • Increase preselection filtering over traditional spectrum analyzers
  • Continuously monitor the spectrum, in real time, 24/7
  • Record I/Q with analog and digital signal analysis for signal classification, demodulation, and decoding

KEY SPECIFICATIONS

Frequency
20 MHz to 6 GHz
DANL @1 GHz
-150.8 dBm
Maximum Analysis Bandwidth
20 MHz
Maximum Real-Time Bandwidth
20 MHz
Phase Noise @1 GHz (10 kHz offset)
-82 dbc/Hz
Frequency
DANL @1 GHz
Maximum Analysis Bandwidth
Maximum Real-Time Bandwidth
Phase Noise @1 GHz (10 kHz offset)
20 MHz to 6 GHz
-150.8 dBm
20 MHz
20 MHz
-82 dbc/Hz
View More
Applications Available:
n/a
Applications-Cellular:
n/a
Applications-General Purpose:
Analog Demodulation
Spectrogram
Field Strength Measurement
Applications with Frequency Mask Trigger:
89600 VSA Software
Bandwidth Options:
n/a
DANL @1 GHz:
-150.8 dBm
DANL @10 GHz, No Preamplifier:
n/a
DANL @2 GHz, No Preamplifier:
<144.5 dBm
Detectable Signal Duration w/Signal to Mask >60 dB:
1 μs
Display Views:
Spectrogram
Frequency:
20 MHz to 6 GHz
Frequency Options:
6 GHz
Instrument Type:
n/a
Maximum Analysis Bandwidth:
20 MHz
Maximum Dynamic Range 3rd Order @1 GHz:
85 dB
Maximum Real-Time Bandwidth:
20 MHz
Maximum Real-Time Bandwidth Options:
n/a
Minimum Duration for 100% Probability of Intercept:
1 μs
Multi-Domain Bandwidth:
20 MHz
Overall Amplitude Accuracy:
± 2.0 dB
Performance Level:
◆◆◆◇◇◇
Phase Noise @1 GHz (1 MHz offset):
n/a
Phase Noise @1 GHz (10 kHz offset):
-82 dbc/Hz
Phase Noise @1 GHz (30 kHz offset):
n/a
Real-Time Bandwidth Options:
n/a
Spur Free Dynamic Range:
75 dBc
Standard Attenuator Range:
62 dB
Standard Attenuator Step:
1 dB
TOI @1 GHz (3rd Order Intercept):
>8.5 dBm
Triggering:
TQT (Time Qualified Trigger)
