M9192A DSR Pattern Editor Software
The M9192A DSR Pattern Editor software provides a development system GUI for M9195A/B PXIe DSR modules. Error logs can be dropped into the waveform editor, speeding up test debugging and showing discrepancies between ATE pattern state versus the DUT.

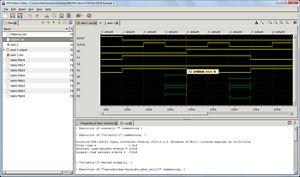

The Keysight M9192A DSR Pattern Editor software provides additional advanced capability to the Keysight M9195A/B PXIe digital stimulus / response (PXI DSR) modules by adding a graphical user interface for the development system. M9195A/B error log files can be dragged and dropped into the waveform editor, speeding test debugging. This gives immediate visibility of discrepancies between the expected state in the ATE patterns and that of the DUT.
The M9192A DSR Pattern Editor software is based on the WaveMaker+ module, which is part of the Solstice-TDS platform from Test Systems Strategies Incorporated (TSSI). The M9195A/B PXIe DSR is fully integrated into the TSSI Solstice-TDS environment, including Keysight DSR in-converter, tester bridge, and error-log handling.
The M9192A DSR Pattern Editor software and the M9193A DSR Pattern Editor with data converters together provide a complete set of vector translation and pattern validation software tools for the Keysight M9195A/B PXIe DSR. These tools allow design and test engineers to save time, cut costs, and dramatically decrease time to market.
- Provides a graphical user interface for M9195A/B PXIe DSR test development and debug
- Keysight DSR STIL In-converter specially designed for use with M9195A/B
- Keysight DSR tester bridge outputs STIL files that work with M9195A/B Soft Front Panel (SFP) or can be used programmatically
