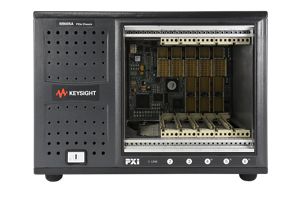

M9005A PXIe Chassis: 5-slot, with Integrated System Module

Product Status:

Discontinued / Currently Supported

Technical Support

Service Notes

Calibration and Repair

Request Service

Download Data Sheet

Replacement Product

M9010A PXIe Chassis: 10-slot, 3U, 24 GB/s, Gen 3

View Product Details

Buy or Rent Options

Overview and Features
Post-Purchase Upgrades
Resources

HIGHLIGHTS

Applications

Aerospace and Defense
Electronic test
Communications

Functionality

Integrated system module
5 available slots: 3 PXIe hybrid, 2 PXIe
Does not contain a PXIe timing slot

Performance characteristics

Integrated PXIe Gen1 x1 system module for use with a desktop host adapter
Up to 250 MB/s total system bandwidth and per-slot bandwidth
Small footprint, bench friendly, PXIe chassis

The M9005A is the smallest footprint family member of PXIe chassis product line. It has been designed as a low cost, bench friendly solution while still enabling PXIe compatibility and performance. The integrated system module enables a solution that is fast and easy to setup. The combination of footprint, cost, and performance make it a perfect entry-level chassis for a wide range of applications

The M9005 PXIe chassis provides 5 peripheral slots: 3 hybrid-compatible slots and 2 PXI Express for a combination of measurement flexibility and performance. Each slot has a PCIe x1 Gen 1 link to the upstream PC. Each hybrid peripheral slot can accept a PXI Express peripheral module, a CompactPCI Express Type-2 peripheral, or a PXI-1 module which has the J2 connector replaced with the XJ4 connector. The hybrid slots provide full PXI Express and 32-bit PXI functionality.
