- Compliance testing of clock jitter, electrical and timing measurements in accordance to JEDEC specifications.
- Superior signal integrity and probing that meets DDR2 and LPDDR2 measurement needs.
- JEDEC test measurement with navigation capability for DDR debug.
- Statistical analysis on read or write data for margin testing.
- Data analytics capabilities which include data import into data repository server and aggregate test results viewing
Use the DDR2 and LPDDR2 application to test, debug and characterize your DDR2 and LPDDR2 designs quickly and easily. It automatically configures the oscilloscope for each test and generates an informative HTML report at the end of the test. The application not only compares the results with the specification test limit, but also includes margin analysis. Margin analysis indicates how closely the device passes or fails each test. In addition, the complex analysis of the DDR2 and LPDDR2 signals is taken care of by the application saving the user time and effort if the measurements are done manually.

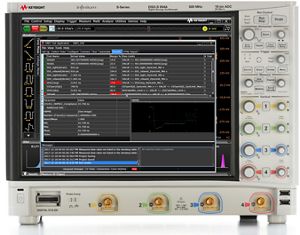

D9020DDRC DDR2(+LP) Compliance Test Application Software and 30-Day Trial LicenseKeysight D9020DDRC DDR2(+LP) compliance test application software for Infiniium Series oscilloscopes.
Interested in a D9020DDRC?
Featured Resources for D9020DDRC DDR2 and LPDDR2 Compliance Test Software
Data Sheets 2021.04.26
D9020DDRC DDR2 and LPDDR2 Compliance Test Application Software
Programming Guides 2019.05.29
Remote Programmer's Reference, D9020DDRC DDR2(+LP) Compliance Test Application Software
Help Files 2019.05.31
Online Help, D9020DDRC DDR2(+LP) Compliance Test Application Software
Reference Guides 2019.05.31
Methods of Implementation, D9020DDRC DDR2(+LP) Compliance Test Application Software
