- Output voltage: 0 to 50 V
- Output current: 0 to 2 A
Programming Accuracy at 25°C ±5°C
- Voltage: 20 mV
- + Current 0.05% + 1 mA
Ripple & Noise (20 Hz to 20 MHz)
- Voltage Normal mode rms: 0.5 mV
- Voltage Normal mode peak-to-peak: 3 mV
- Fast mode rms/peak-to-peak: 1 mV/15 mV
- Current rms: 2 mA
This product will be discontinued on June 1, 2017. The recommended substitute products are: N6752A or N6762A.

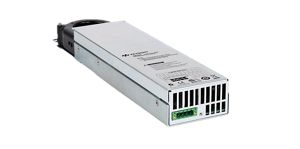

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 80-100 W, GPIB 6631B-6634B provide fast, low-noise outputs; programmable active down-programmer sinks the full rated current; dual-range, precision low current measurement; as well as optional isolation and polarity reversal relays.
The Keysight 100W, GPIB, single output 6633B is a versatile medium-power solution for automated applications that reduces development time with a combination of benchtop and system features designed for demanding design and test requirements.
