This sample program enables the ENA user to save the multiple channel/trace data with various format.

Revision Number

Rev.01.02 (for E5071C, E5070B/71B)
Rev.01.00 (for E5061B)

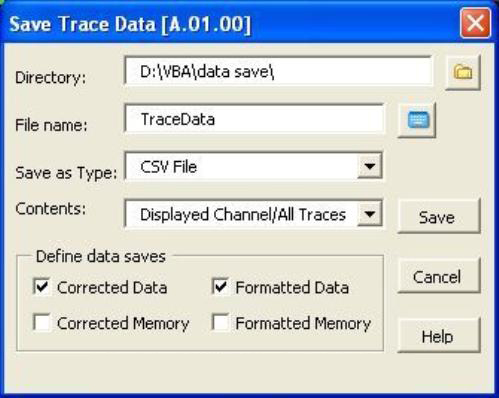

Supported functions

  • Data save as Active trace only, Active channel all traces, Displayed channel and all traces
  • CSV, MATLAB, and CITI format saving
  • Corrected or formatted data and memory saving

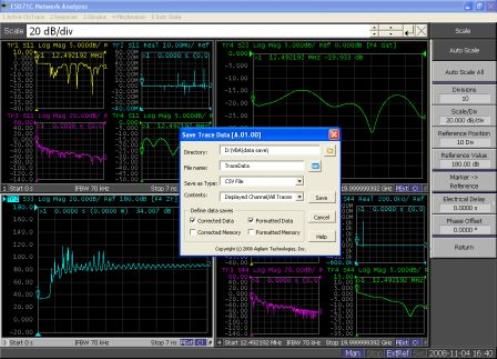

How to install and run this file

  • Copy the download file to the D:\VBA folder of your ENA. To run the macro, press [Macro Setup] on the ENA front panel, then select Load & Run, and click on "SaveTrace.." on the softkey menu.
