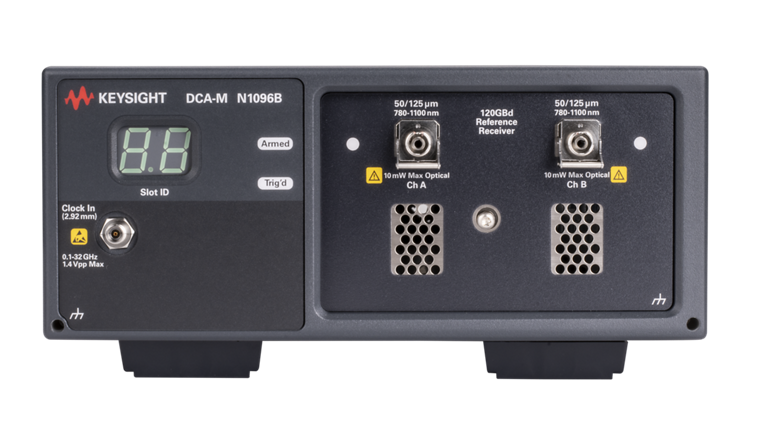

SX2-class Sampling Oscilloscope, 58 GHz Maximum optical bandwidth, Multimode only, Dual Optical Channel

The N1096 multimode DCA-M supports the high-speed demands of AI-driven data centers, offering 224 Gbps or 112 GBd PAM4 measurement capability for multimode (MM) short-reach applications for next-generation AI infrastructure.

prod_image

  • Fiber mode

    Multimode only

  • Intrinsic jitter

    < 200 fs rms

  • Electrical channels

    0

  • Optical channels

    2

  • Maximum electrical bandwidth

    N/A

  • Maximum optical bandwidth

    58 GHz

sortDropdown icon View Brochures

Ready for a quote

Find out what's included and explore available upgrade options from Keysight.

Highlights

Optimize transceiver performance and scale production testing with the N1093A 224 Gb/s signle channel optical sampling oscilloscope. One weak link in an AI data center can slow the entire network. Maximize network reliability with accurate optical measurements using a low-noise, low-jitter, and high-optical-sensitivity oscilloscope. Scale high-volume manufacturing testing with FlexOTO optimization software which lessens program setup and oscilloscope idle time.

  • Optical bandwidth 60 GHz with SIRC (System Impulse Response Correction) enabled
  • High sensitivity with <20 uW noise
  • Accurate high data-rate analysis with <90 fs jitter (option PTB)
  • Up to 120 GBd Integrated clock recovery available (option CDR and CRX)
  • Fast throughput with high 250 kHz sample rate
  • Small footprint from compact design

What's included:

  • USB cable (for connection to DCA-X mainframe or user-supplied PC)
  • Power cord
  • Instrument cover
Optimize transceiver performance and scale production testing with the N1093A 224 Gb/s signle channel optical sampling oscilloscope. One weak link in an AI data center can slow the entire network. Maximize network reliability with accurate optical measurements using a low-noise, low-jitter, and high-optical-sensitivity oscilloscope. Scale high-volume manufacturing testing with FlexOTO optimization software which lessens program setup and oscilloscope idle time.

  • Optical bandwidth 60 GHz with SIRC (System Impulse Response Correction) enabled
  • High sensitivity with <20 uW noise
  • Accurate high data-rate analysis with <90 fs jitter (option PTB)
  • Up to 120 GBd Integrated clock recovery available (option CDR and CRX)
  • Fast throughput with high 250 kHz sample rate
  • Small footprint from compact design

What's included:

  • USB cable (for connection to DCA-X mainframe or user-supplied PC)
  • Power cord
  • Instrument cover
The N1096B 224 Gb/s multimode dual channel optical DCA-M sampling oscilloscope delivers leading-edge technology to optimize 1.6T multimode transceiver performance and scale production testing to meet the growing demands of AI data centers. It maximizes network reliability through highly accurate optical measurements, enabled by a low-noise, low-jitter architecture and exceptional optical sensitivity—ensuring confident validation from design through high-volume manufacturing.
  • 780 to 1100 nm, multimode.
  • Optical bandwidth 58 GHz with System Impulse Response Correction (SIRC) enabled.
  • High sensitivity with ≤35 uW noise.
  • Accurate high data-rate analysis with <200 fs jitter (option LOJ).
  • Fast throughput with a high 250 kHz sample rate.
  • Small footprint through compact design.

What's included:

  • USB cable (for connection to DCA-X mainframe or user-supplied PC).
  • Power cord.
  • Instrument cover.
