Future-Ready Memory Design
The next generation of double data rate (DDR) memories, such as DDR5 and GDDR6, deliver significant performance. These standards also introduce new SI challenges. Designers must generate IBIS-AMI models for receivers, extract accurate electromagnetic (EM) models of the DDR channel, and predict margin to the eye-mask at specific bit error rates.
PathWave ADS for memory design minimizes the engineering effort required to set up and extract EM models, simulate buses, and perform compliance testing. With the combined capabilities of Memory Designer and SIPro, you can set up your end-to-end DDR analysis five times faster than before.

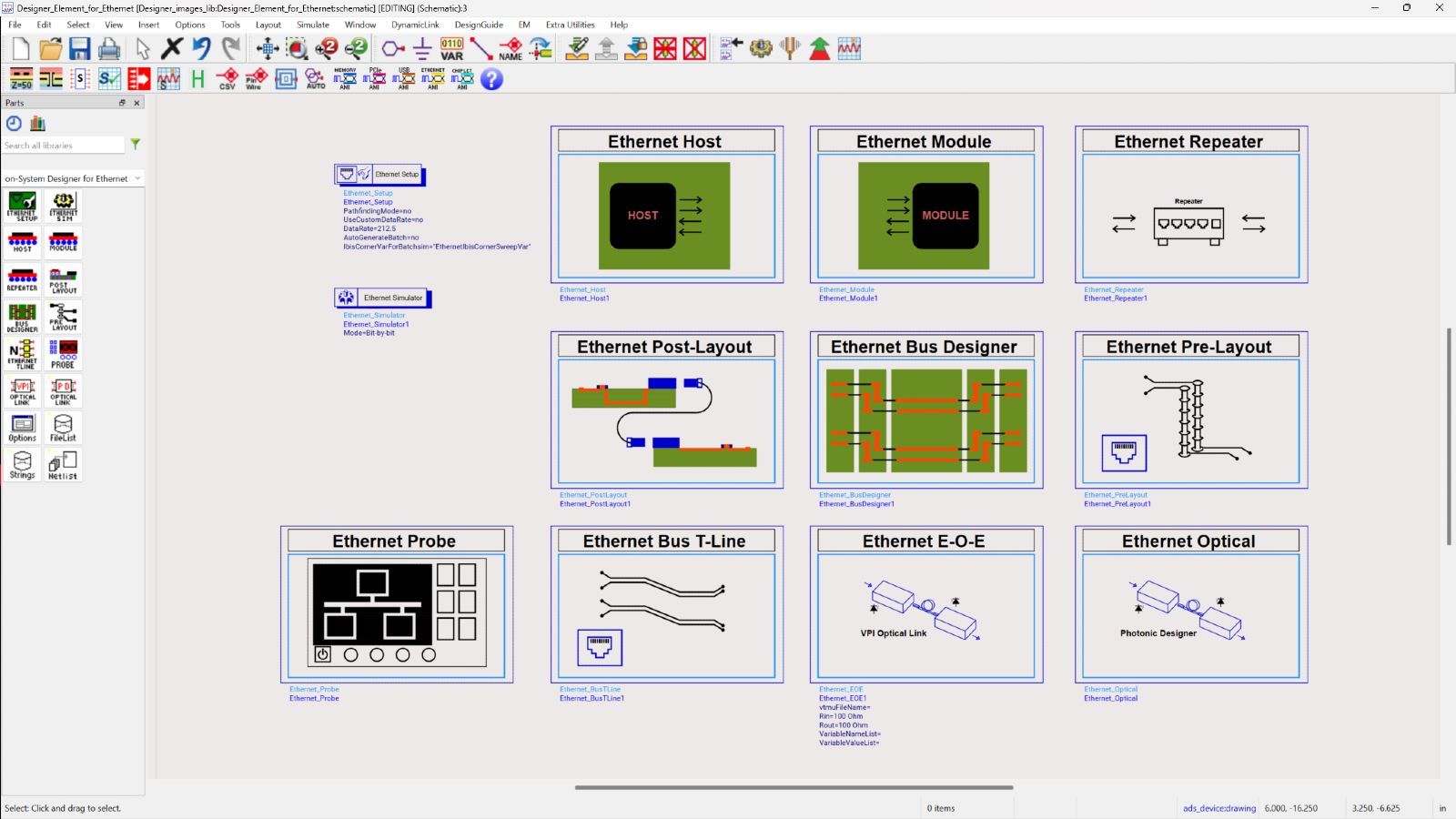

Signal Integrity for High-Speed Serial
Each new digital standard brings faster speeds and higher frequencies. Signal integrity engineers need to have confidence in their channel design, including optimal via design, managing crosstalk, signal loss, jitter, and equalization.
With advanced channel simulation in PathWave ADS, you can simulate for pulsed amplitude modulation (PAM-4, PAM-3, and PAM-N) signaling schemes. Complemented by fast and accurate signal integrity EM analysis, you can achieve 100% board success by catching critical errors before build-out.
Attend the Keysight University Course
Designing for Signal Integrity (10 min)
Power Integrity: More Than Just DC
With lower voltages, higher currents, and multiple supplies, power integrity issues can be difficult to troubleshoot and cost thousands of dollars to fix. Overcoming this challenge requires a cohesive design flow for frequency and time-domain analysis of power distribution networks (PDNs). With Keysight’s PI design workflow, you can visualize the worst-case ripple caused by a dynamic load and engineer an optimum low-noise PDN.
Simulate Five Times Faster by Moving Simulation to the Cloud
The latest innovations in cloud technology have advanced to the world of electronic design and simulation. Design workspaces can be gigabytes in size, but the simulation files you need may only be 10’s of megabytes. You don’t need to utilize the entire workspace file to simulate.
With cloud simulation, the software only sends the files that it needs in order to run the simulation. Using high-performance computing and cloud simulation, design teams are cutting their simulation times by over 80%.
Find the Model that's Right for You
Protect Your Innovation Investment
Case Studies 2022.10.25
Design Team Increases Efficiency of High-Speed Digital Boards by 100%
Case Studies 2019.09.30
SECO Reduces DDR4 Board Failures to Zero
