Highlights

Tough-to-Beat Microwave Performance up to 13.6 GHz

Achieve higher productivity with the Keysight N9323C basic spectrum analyzer (BSA). Get proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements.

  • Provides fast RF spectrum analysis from 1 MHz to 13.6 GHz
  • Comes equipped with a tracking generator for stimulus-response tests
  • Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
  • Supports AM / FM, ASK / FSK demodulation analysis suites for Internet of Things transmitter characterization
  • Enables you to automatically implement up to 20 predefined measurements and reduce test setup time by 95% with the task planner feature
  • Provides straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys
View Data Sheet

Three Steps to Fast Pass/Fail Tests

The N9323C includes a window limit feature that makes simultaneous determinations on the frequency and power limits of a signal. This one-button pass / fail determination reduces instrument setup complexity and significantly improves testing efficiency.

Examples of use cases include electromagnetic interference (EMI) emission tests, spectrum monitoring, and consumer electronics applications.

Download Application Note
N322C hardware front left view

Key Specifications

Download Data Sheet
Frequency
1 MHz to 13.6 GHz
DANL @1 GHz
-144 dBm
Maximum Analysis Bandwidth
1 MHz
Frequency
DANL @1 GHz
Maximum Analysis Bandwidth
1 MHz to 13.6 GHz
-144 dBm
1 MHz
View More
DANL @1 GHz:
-144 dBm
Frequency:
1 MHz to 13.6 GHz
Frequency Options:
1 MHz to 13.6 GHz
Maximum Analysis Bandwidth:
1 MHz
Maximum Frequency:
13.6 GHz
Performance Level:
◆◇◇◇◇◇
Phase noise @ 500 MHz 10 kHz Offset:
-92 dBc/Hz
Standard Attenuator Step:
5 dB
TOI @1 GHz (3rd Order Intercept):
+11 dBm
Triggering:
RF Burst
External
Video
Type:
Benchtop
N9323C-TRANSP-04-20180119

Interested in an N9323C?

Extend The Capabilities

Software
See Related Software
Accessories
See Related Accessories
Services
See All Services
Support
See All Support

Featured Resources

Data Sheets 2023.05.08

N9323C Basic Spectrum Analyzer 1 MHz to 13.6 GHz

N9323C Basic Spectrum Analyzer 1 MHz to 13.6 GHz

This document provides information of the specifications of N9323C Basic Spectrum Analyzer.

2023.05.08

Configuration Guides 2021.09.08

N9321C/N9322C/N9323C/N9324C Basic Spectrum Analyzer (BSA)

N9321C/N9322C/N9323C/N9324C Basic Spectrum Analyzer (BSA)

This configuration guide contains information to configure N9321C, N9322C, N9323C and N9324C Basic Spectrum Analyzer (BSA).

2021.09.08

Application Notes 2018.04.02

A Flexible Test Solution for 2.4 GHz ZigBee Transmitters and Receivers

A Flexible Test Solution for 2.4 GHz ZigBee Transmitters and Receivers

This application note explains a low cost measurement solution for 2.4 GHz ZigBee O-QPSK signal generation for receiver test and signal analysis for transmitter test.

2018.04.02

Application Notes 2017.11.30

A Cost-effective Way to Test Sub 1-GHz Wireless Modules

A Cost-effective Way to Test Sub 1-GHz Wireless Modules

Keysight sub 1GHz test solution offers a cost-effective solution to address RF test needs for more sub 1GHz wireless module testing.

2017.11.30

Application Notes 2022.11.03

A Cost-effective Way to Test Bluetooth® Smart Devices

A Cost-effective Way to Test Bluetooth® Smart Devices

See how to reduce test costs for Bluetooth modules on smart devices using Keysight’s cost-effective Bluetooth test solution based on N9320B/N9322C BSA.

2022.11.03

Application Notes 2014.12.10

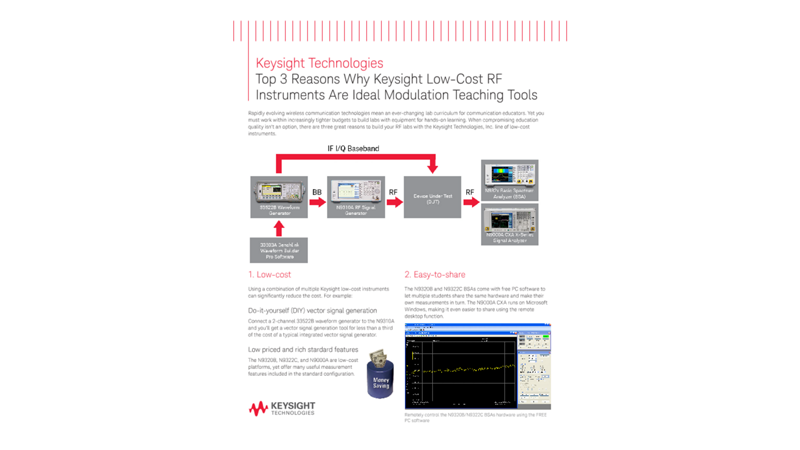

Using Low-Cost Instruments for Teaching Modulation
