Highlights

Outperform Expectations in Your Essential RF Applications

Built to address your essential applications, the N9321C Basic Spectrum Analyzer (BSA) offers proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements.

  • Provides fast RF spectrum analysis from 9 kHz to 4 GHz
  • Comes equipped with a tracking generator and built-in VSWR bridge for transmission and reflection tests
  • Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
  • Supports AM / FM, ASK / FSK demodulation analysis suites for Internet of Things transmitter characterization
  • Enables you to automatically implement up to 20 predefined measurements and reduce test setup time by 95% with the task planner feature
  • Provides straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys

Three Steps to Fast Pass/Fail Tests

The N9321C includes a window limit feature that makes simultaneous determinations on the frequency and power limits of a signal. This one-button pass / fail determination reduces instrument setup complexity and significantly improves testing efficiency.

KEY SPECIFICATIONS

Frequency
9 kHz to 4 GHz
DANL @1 GHz
-152 dBm
Maximum Analysis Bandwidth
1 MHz
Phase Noise @1 GHz (10 kHz offset)
-90 dBc/Hz
Frequency
DANL @1 GHz
Maximum Analysis Bandwidth
Phase Noise @1 GHz (10 kHz offset)
9 kHz to 4 GHz
-152 dBm
1 MHz
-90 dBc/Hz
View More
DANL @1 GHz:
-152 dBm
Frequency:
9 kHz to 4 GHz
Frequency Options:
9 kHz to 4 GHz
Maximum Analysis Bandwidth:
1 MHz
Overall Amplitude Accuracy:
±0.6 dB
Performance Level:
◆◇◇◇◇◇
Phase Noise @1 GHz (10 kHz offset):
-90 dBc/Hz
Standard Attenuator Step:
1 dB
TOI @1 GHz (3rd Order Intercept):
+15 dBm
Triggering:
RF Burst
External
Video
Type:
Benchtop

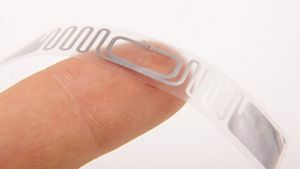

Easily Measure the Resonance Frequency of an RFID Tag

The N9321C provides cost-effective, general-purpose spectrum analysis. It quickly and easily characterizes one-port passive devices, including reflection tests for RFID device characterization, by adding the optional tracking generator and built-in VSWR bridge.
