Highlights

See the Real Performance of Your Design

E6416A Multi Transceiver RF Test Set (MTRX) is a scalable RF test platform hardware that provides 4 or up to 16 Vector Signal Analyzer (VSA) and 4 or up to 16 Vector Signal Generators (VSG) in one instrument with an advanced digital MIMO and massive MIMO signal weighting matrix and pass-through connectivity options for end-to-end beamforming test of network and device(s).

VSA measurements are available for analysis through Keysight PathWave software, Keysight Wireless Analyzer WaveJudge software, or in an open IQ file format. VSG waveforms are configured with Keysight PathWave software.

Key Specifications

Download Data Sheet
Frequency Range
30 MHz to 450 MHz
450 MHz to 3 GHz
450 MHz to 7.25 GHz
Max. RF Bandwidth
100 MHz
200 MHz
Number of Channels
4
8
12 channels
16
Number of Transceivers
4
8
12
16
Standards Testing
5G BS MIMO RF testing
Test Domain
Performance
Frequency Range
Max. RF Bandwidth
Number of Channels
Number of Transceivers
Standards Testing
Test Domain
30 MHz to 450 MHz
450 MHz to 3 GHz
450 MHz to 7.25 GHz
100 MHz
200 MHz
4
8
12 channels
16
4
8
12
16
5G BS MIMO RF testing
Performance
View More
Frequency Range:
30 MHz to 450 MHz
450 MHz to 3 GHz
450 MHz to 7.25 GHz
Max. RF Bandwidth:
100 MHz
200 MHz
Number of Channels:
4
8
12 channels
16
Number of Transceivers:
4
8
12
16
Standards Testing:
5G BS MIMO RF testing
Test Domain:
Performance
Test Types:
MIMO RF testing

Related Products

SJ001A WaveJudge Wireless Analyzer Toolset

SJ001A WaveJudge Wireless Analyzer Toolset

The SJ001A WaveJudge Wireless Analyzer Toolset allows engineers to gain visibility into protocol and physical layer interaction in wireless transmissions.

PathWave Vector Signal Analysis (89600 VSA)

PathWave Vector Signal Analysis (89600 VSA)

Keysight vector signal analysis software, also known as Pathwave 89600 VSA, is ideal for evaluating and troubleshooting wireless signals for hardware measurements.

PathWave Signal Generation

PathWave Signal Generation

Comprehensive PC-based signal creation software for cellular, wireless connectivity, aerospace/defense, broadcast and general purpose applications.

U5040BSCB Open RAN Studio for O-RU Testing and Validation

U5040BSCB Open RAN Studio for O-RU Testing and Validation

Open RAN Studio includes powerful O-RAN focused tools to construct, play, capture, and measure O-RAN traffic over Ethernet fronthaul interfaces. Optional extraction of IQ vectors enables modulation analysis with Keysight 89600 VSA software.

Featured Resources

Data Sheets 2023.10.03

E6464A Multi Transceiver RF Test Set

E6464A Multi Transceiver RF Test Set

E6464A Multi Transceiver RF Test Set (MTRX) is a scalable RF test platform hardware that provides 8 or up to 64 ports for Vector Signal Analysis (VSA) and 8 or up to 64 ports for Vector Signal Generation (VSG) in one instrument. It features advanced digital MIMO and massive MIMO signal weighting matrix and pass-through connectivity options for end-to-end beamforming testing of network and device(s).

2023.10.03

Data Sheets 2023.10.03

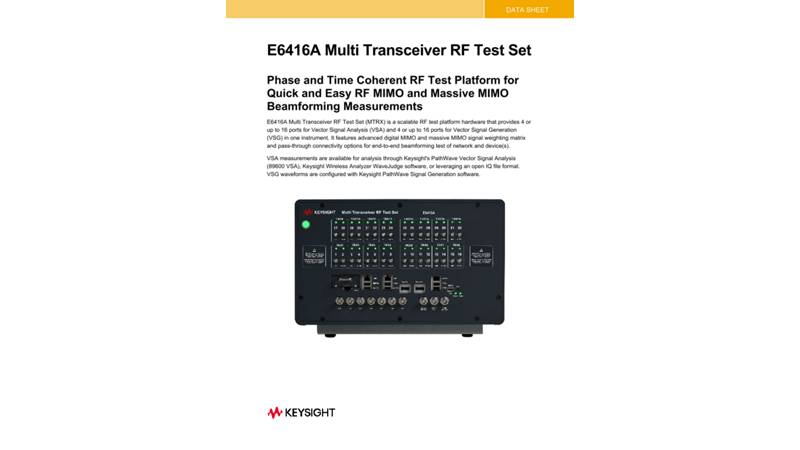

E6416A Multi Transceiver RF Test Set
