N5991MM6A MIPI M-PHY® 6 Receiver Conformance Test Software
The RX solution maximizes the usage of test instruments and provides automated system calibration and test according to the M-PHY® 6 Specification v1.0.
Starting from
Highlights

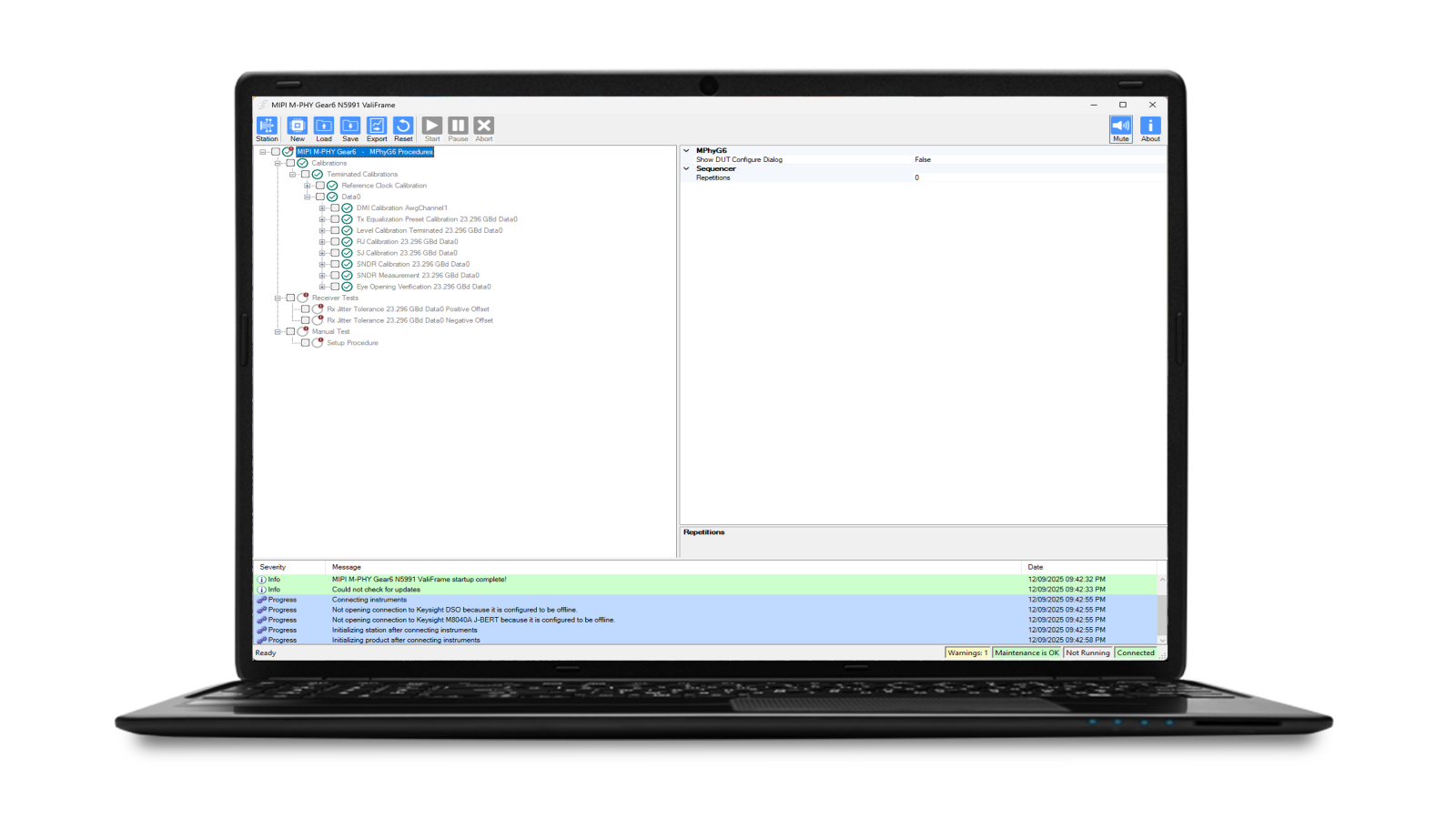

The N5991MM6A MIPI M-PHY® 6 Receiver Test Software maximizes the value of your Keysight M8040A BERT platform, helping you test, debug and characterize your M-PHY® 6 receiver designs easily with an intuitive user interface. The software automates signal synthesis, calibration, and characterization procedures, ensuring consistency and repeatability. During the process, the software generates reports that you can export in HTML format for further data analysis.
Jitter and SNDR calibrations, as well as Jitter Tolerance test are all present to ease the pathfinding and development of M-PHY® 6 receiver products. At the same time, a freely configurable characterization procedure allows easy testing of any impairment combination. And because the test patterns defined in the specification are supported, only minimal user input is required.
- Guided setup with automated receiver signal calibration and characterization procedures.
- Expert mode for beyond-conformance testing and characterization.
- Fast characterization of MIPI M-PHY® receivers.
- HTML reports for easy post-processing.
- The software will be expanded with additional CTS tests as they become available.
Keysight partner BitifEye Digital Test Solutions provides integrated solutions that complement the Keysight portfolio. Explore the wide range of software tools for Keysight instruments by clicking the Free Trials link below or visit www.bitifeye.com.
MIPI® service marks and logo marks are owned by MIPI Alliance, Inc. and any use of such marks by Keysight Technologies is under license. Other service marks and trade names are those of their respective owners.
Free Trials
A 30-day trial license can be requested from our partner BitifEye.
