346CH08 USB to BNC Adapter
Data Sheets
Keysight Technologies

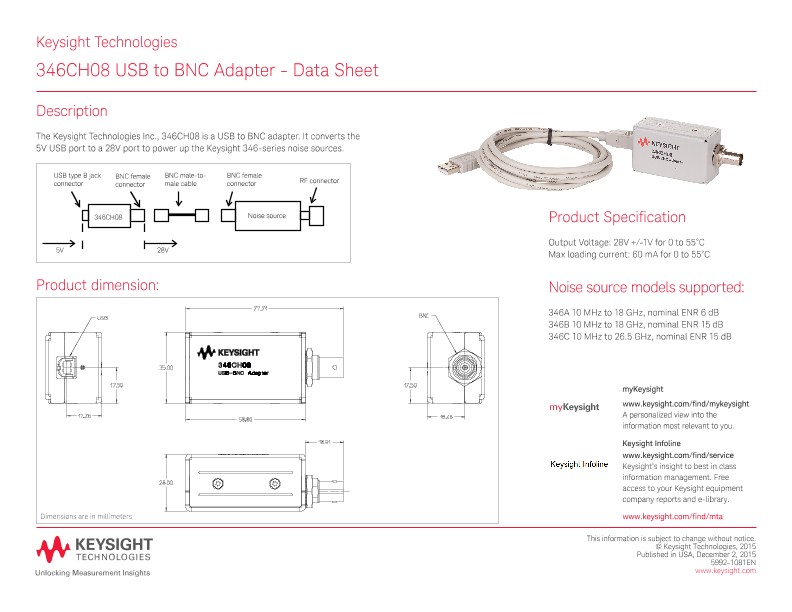

346CH08 USB to BNC Adapter - Data Sheet
Description
The Keysight Technologies Inc., 346CH08 is a USB to BNC adapter. It converts the 5V USB port to a 28V port to power up the Keysight 346-series noise sources.
Product Specification
Output Voltage: 28V +/-1V for 0 to 55˚C
Max loading current: 60 mA for 0 to 55˚C
Noise source models supported:
346A 10 MHz to 18 GHz, nominal ENR 6 dB
346B 10 MHz to 18 GHz, nominal ENR 15 dB
346C 10 MHz to 26.5 GHz, nominal ENR 15 dB
