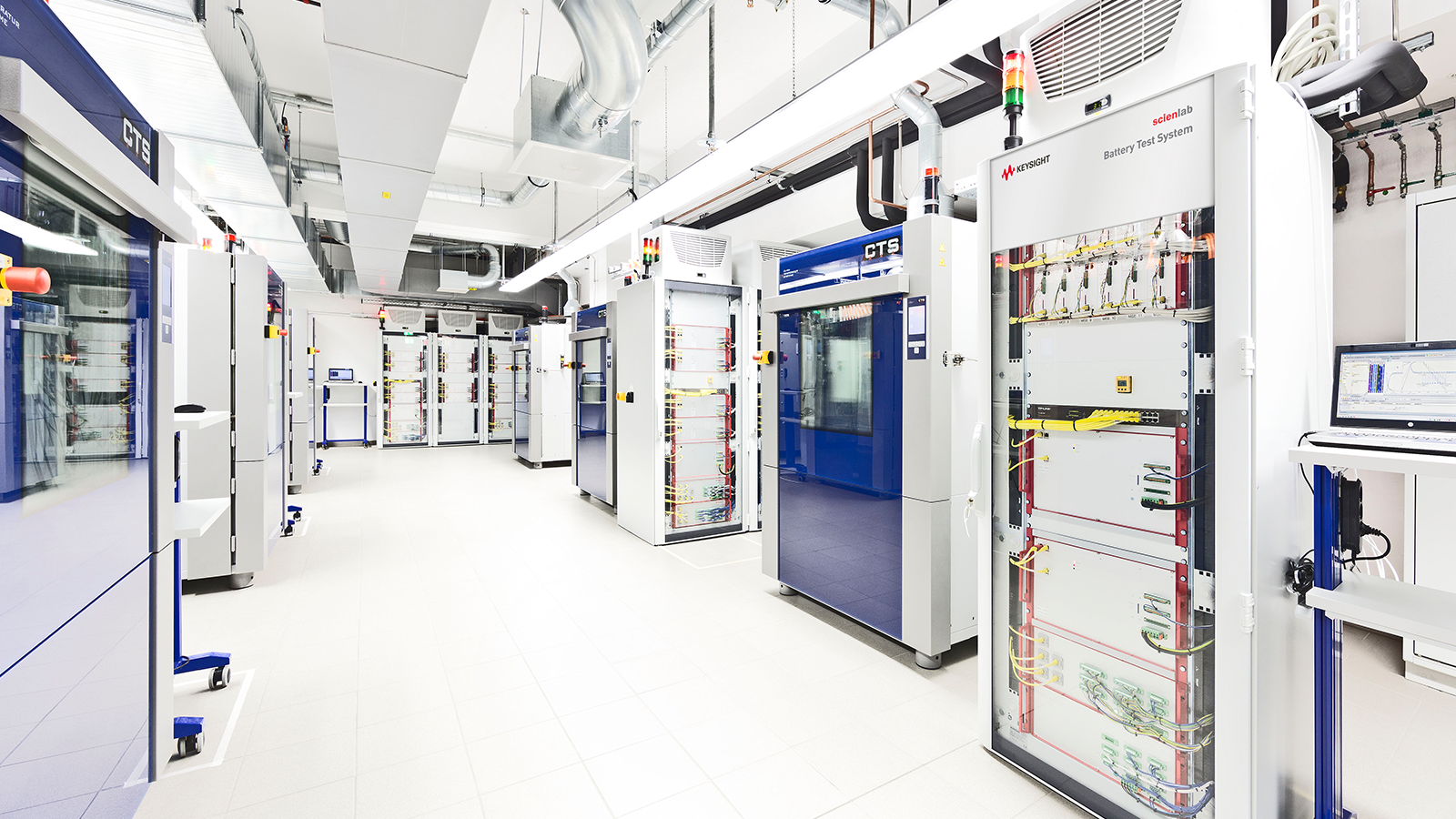

Meet the SL1001A Scienlab Battery Test System – Module Level Series
The SL1001A Scienlab Battery Test System for module level is a test platform that provides a complete test setup with unique testing capabilities to validate the performance of modules for different applications. Built as a bidirectional regenerative source and sink it performs the tests with the highest efficiency.
- Efficient and cost-effective operation ensured by energy recovery capabilities during performance and lifetime tests with high channel count.
- Optimized integration of BMS values in the automation system for synchronization, as input value, or as switch-off criteria directly in the test sequence.
- Multi-purpose test system to bridge the levels:
- Coverage of lower voltage applications with a starting range of 20 V
- Coverage of higher voltage applications with ranges up to 300 V
- Optional cell test integration extending the range down to 0 V (0 to 6 V range) and allowing a four-quadrant operation
High Performance for All Your Applications
With the interconnection of battery cells to modules further requirements are necessary on your test equipment. Higher tensions and an increase in electrical power is necessary to:
- Record several temperatures to investigate the reciprocal electrical and thermal influence of the cells
- Check the mechanical connections and the performance of the module
- Communicate with the BMS
Drive the Future of E-Mobility
Accelerate the development and validation of batteries with Keysight’s Scienlab Battery Test Solutions. From cell chemistry to battery pack Keysight’s holistic approach is your key to success:
- Battery Test Systems for cell, module, and pack
- Intuitive and powerful test software Energy Storage Discover
- Optimize your test workflows with PathWave Lab Operations for Battery Test
- Benefit from Keysight’s global service and support
Key Specifications
Voltage Range
20 – 300 V
Current Options
100 – 750 A
Power Options
2 – 68 kW
Accuracy
± 0.05% of measured value
