Spectrum Analyzer With Bandwidth Digitizer

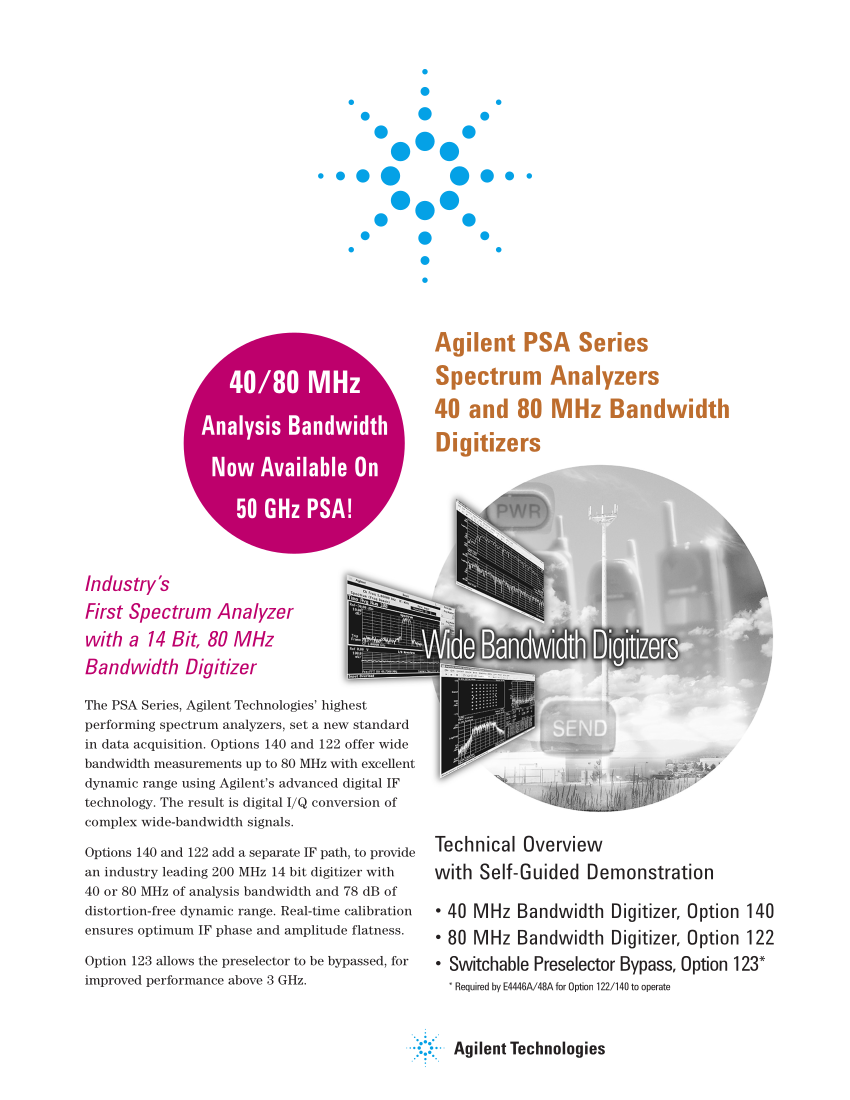

The PSA Series proves to be an emerging trend in data acquisition. Options 140 and 122 provide wide bandwidth measurements ranging all the way up to 80 MHz with outstanding diverse range utilizing Agilent’s advanced digital IF technology. The outcome is digital I/Q conversion of complex wide-bandwidth communication signals.

Analyze Designs Calling for Wide Bandwidth Signal Measurement with High Dynamic Range

Commercial and military communications so far seem to demand increasing data rates. Improved data rates correspond to wider bandwidths. The PSA takes care of those requirements with 40 and 80 MHz bandwidth digitizers.

Extra bandwidth does not validate the correct analysis of broadband signals alone. In fact, they call for the contribution of low residual EVM, including efficient amplitude and phase flatness, plus extended dynamic range.

Analyze Your Broadband Designs

Keysight’s PSA with its 14 bit digitizer and modern digital IF technology takes note and records the instantaneous phase and amplitude associations on broadband signals. With up to 80 MHz analysis bandwidth. Assuring 78 dB of distortion-free and 76 dB of image-free dynamic scope.

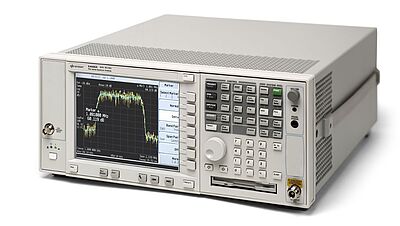

PSA Spectrum Analyzer

Right from the beginning, the Keysight PSA spectrum analyzer has been assisting the aerospace/aviation/defense and communications organizations in applications where the utmost performance and wideband analysis capacity are the requirements. PSA coupled with frequency range of 50 GHz and beyond, and capability for up to 80 MHz bandwidth internal analysis or 300 MHz bandwidth utilizing external digitizers, presents best results.
