How to Validate DC Power Supply Load Regulation and Transient Response

Get Quote
Benchtop DC Electronic Load
+ Benchtop DC Electronic Load
Benchtop DC Electronic Load
+ Benchtop DC Electronic Load

Ensure Reliable Power Supply Performance

Engineers must ensure that DC power supplies maintain stable and accurate output across a wide range of load conditions, as load regulation and transient response directly influence overall system performance and reliability. In applications such as server infrastructure, industrial control systems, and battery-powered devices, fluctuations in load demand can introduce voltage deviations or instability, potentially impacting sensitive components and system operation. Thorough validation of power supply behavior under dynamic conditions is therefore essential during design and verification.

By using a DC electronic load, engineers can precisely emulate real-world operating scenarios and stress conditions. Configurable load modes—such as constant current, constant voltage, and constant resistance—enable detailed evaluation of voltage stability, transient recovery, and response time. This approach provides deeper insight into power supply robustness, supporting optimized design and ensuring reliable performance in demanding applications.

DC Power Supply Validation Solution

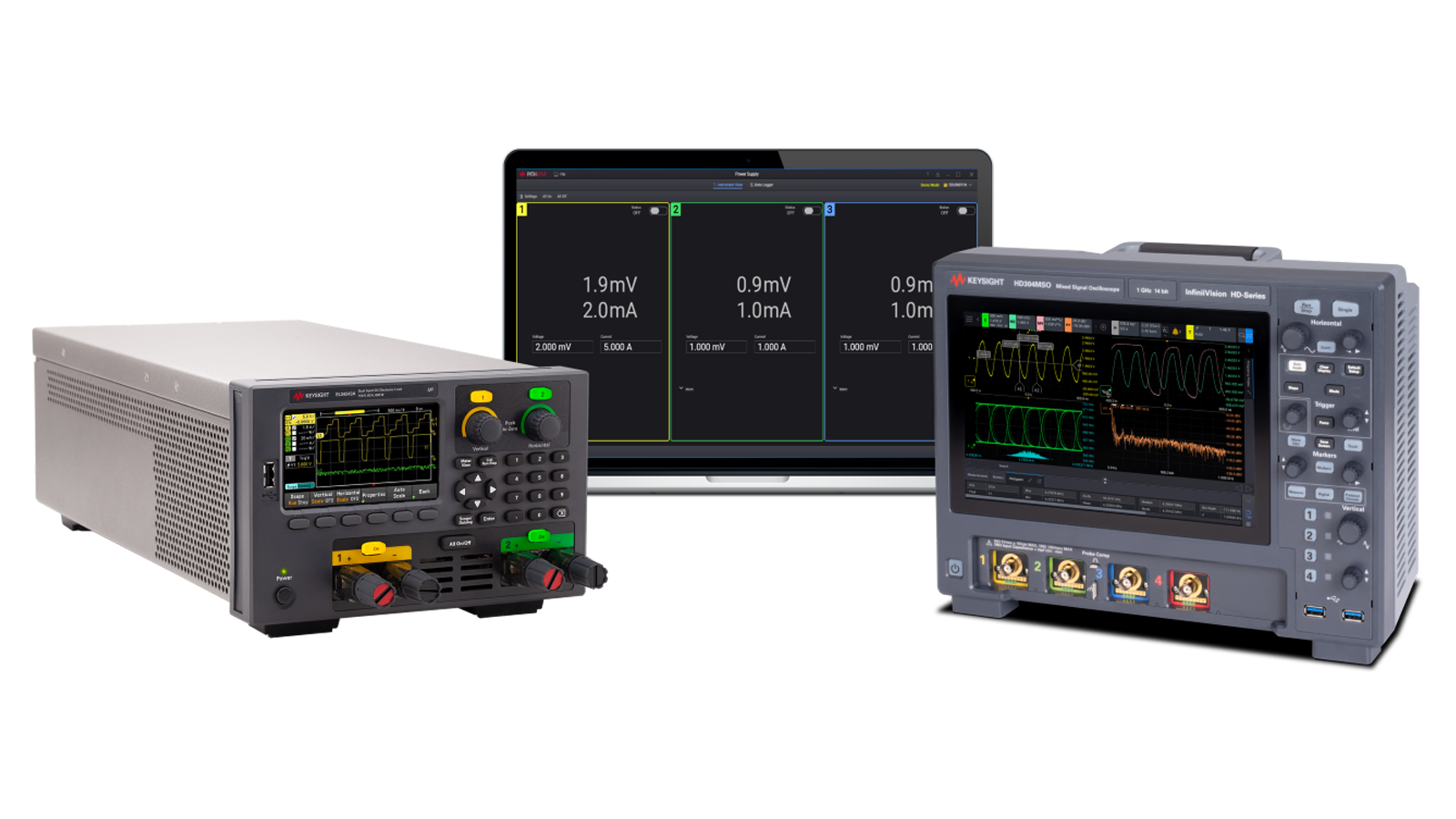

Validating DC power supply performance requires test systems capable of applying precise, dynamic load conditions while accurately measuring voltage response under varying operating scenarios. This solution uses a programmable benchtop DC electronic load to emulate real-world load profiles, including steady-state and transient conditions across multiple operating modes. With support for dynamic loading and fast transient generation, this integrated setup enables engineers to analyze voltage regulation, transient response, and recovery behavior in detail. Together, these capabilities allow for accurate validation of power supply performance, ensuring compliance with design specifications and reliable operation in demanding applications.
Get Quote

Block Diagram of DC Power Supply Validation Solution

How to Validate DC Power Supply Load Regulation and Transient Response - Block Diagram
