D9330DPHC MIPI D-PHY Transmitter Conformance Test Software
MIPI D-PHY Transmitter Conformance Test Software
Starting from
Highlights
Features
- Supports MIPI D-PHY testing based on v3.5 specification, up to 9.0 Gbps
- Supports LP and HS tests
- Automated oscilloscope measurement setup, testing and reporting for increased accuracy, time-savings and repeatability
- Automated margin analysis
Requirements
- Infiniium updated to a firmware version recommended in the most recent Release Notes
- D9320ASIA Advanced Signal Integrity Software (Crosstalk)
- D9320JITA EZJIT Complete – Jitter and Vertical Noise Analysis Software

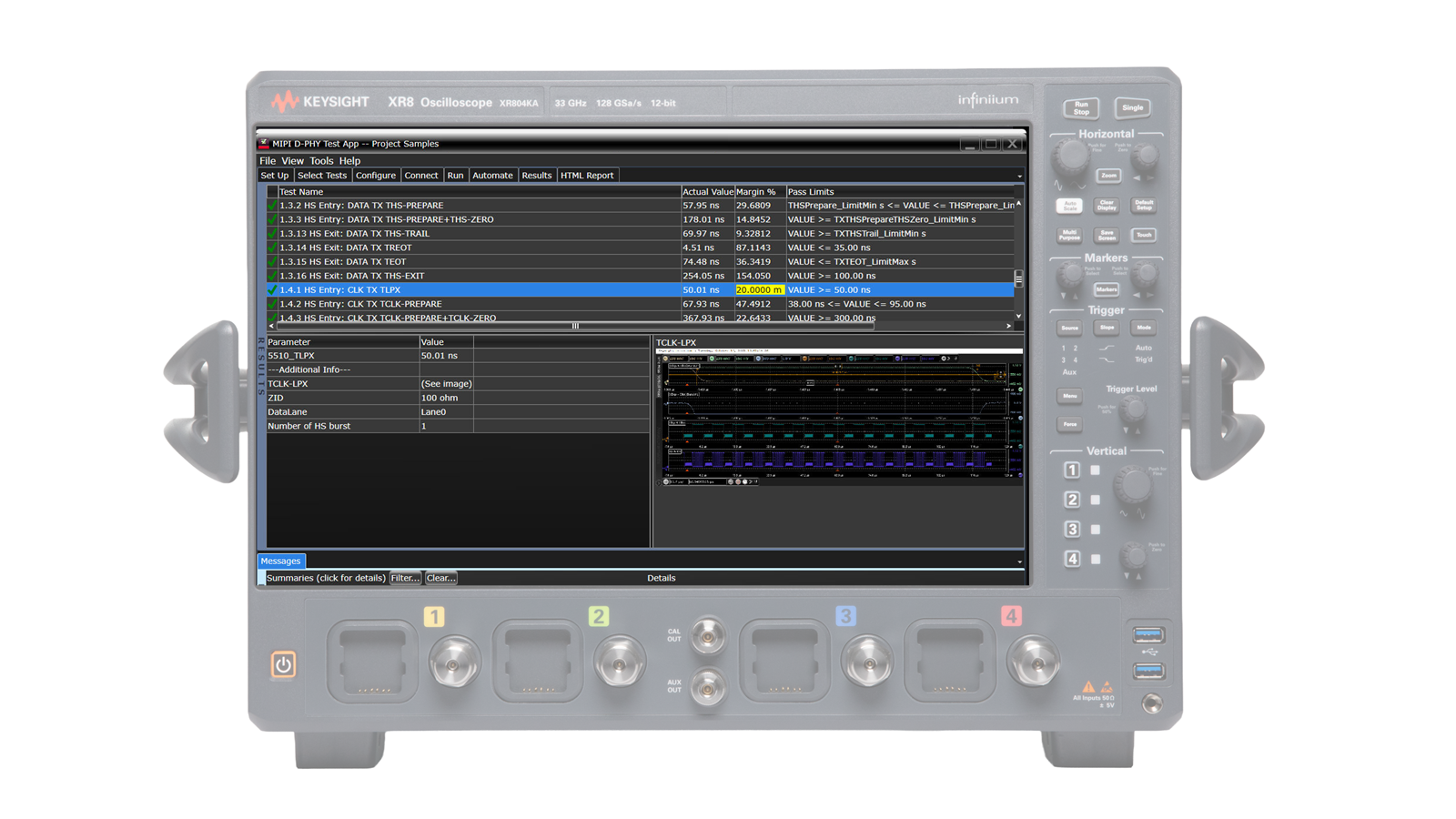

The MIPI D-PHY Transmitter Conformance Test Software for Infiniium oscilloscopes gives you a fast, easy way to validate and debug your D-PHY data links. The D-PHY electrical test software allows you to automatically execute D-PHY conformance tests for your CSI and DSI architectures. The application automatically displays the results in a flexible report format. In addition to measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.
Free Trials
D9330DPHC MIPI D-PHY Transmitter Conformance Test Software and 30-Day Trial License
Keysight D9330DPHC MIPI D-PHY Transmitter Conformance Test Software for Infiniium XR8 and UXR-Series oscilloscopes.
Interested in a D9330DPHC?
Extend the Capabilities of Your D9330DPHC MIPI D-PHY Transmitter Conformance Test Software for Infiniium Oscilloscopes
