Use the Keysight D90203DJC IEEE 802.3dj transmitter (Tx) test application with Keysight Infiniium UXR-Series oscilloscopes to quickly and accurately perform electrical (physical layer) conformance measurements to meet the following specifications:

  • IEEE P802.3dj 200 Gb/s, 400 Gb/s, 800 Gb/s, and 1.6 Tb/s operation.
  • 200GAUI-1 C2M, 400GAUI-2 C2M, 800GAUI-4, and 1.6TAUI-8 chip-to-module attachment unit interfaces (C2M) transmitter electrical characteristics.
  • 200GBASE-CR1, 400GBASE-CR2, 800GBASE-CR4, and 1.6TBASE-CR8 transmitter electrical characteristics.
  • 200GAUI-1 C2C, 400GAUI-2 C2C, 800GAUI-4 C2C, and 1.6TAUI-8 C2C transmitter electrical characteristics.
  • 200GBASE-KR1, 400GBASE-KR2, 800GBASE-KR4, and 1.6TBASE-KR8 transmitter electrical characteristics.

The D90203DJC IEEE 802.3dj Tx test application simplifies complex 212 Gbps IEEE transmitter physical layer measurements to help you:

  • Reduce time spent understanding the details of standards.
  • Decrease the time it takes to characterize your PAM4 design from hours to minutes.
  • Enable the debugging of your device using custom configurations.
  • Generate HTML reports that summarize the performance of your device quickly.

Key measurements include:

  • Jitter measurements Jnu, JRMS, and EOJ on a 12-edge PRBS13Q.
  • Output waveform measurements, including steady-state voltage, linear fit pulse ratio, and signal-to-noise-and-distortion ratio (SNDR).
  • Effective return loss.

Download and install the D90203DJC free trial onto a Keysight UXR-Series oscilloscope for a comprehensive list of specific tests the application covers.

Comprehensive Measurement and Debugging Solution

  • Characterizes 212.5 Gbps C2M, CR, KR, and C2C based on IEEE P802.3dj specification.
  • Includes key measurements such as 12-edge output jitter (Jnu, JRMS, EOJ), SNDR, RLM, and SNRISI.
  • Provides advanced clock recovery capabilities for IEEE PLL requirements.
UXR Measurement Master Selection 212G
UXR Measurement Results 212G

Flexible and Extensible

  • Operates on a UXR-Series real-time oscilloscope.
  • Generates automatic HTML reports.
  • Tests all or selected parameters to compliance limits or custom user-defined limits.

Compatible

  • UXR-Series oscilloscope operating at or above 90 GHz (recommended).
UXR Jitter 212G
UXR Measurement Master Selection 212G

Free Trials

Get a 30-day trial license for D90203DJC.

UXR Measurement Selection 212G

Interested in a D90203DJC?

Extend the Capabilities of Your D90203DJC IEEE 802.3dj Electrical Transmitter Compliance Test Software

See Related Accessories
See All Services
See All Support

Featured Resources

Data Sheets 2026.05.29

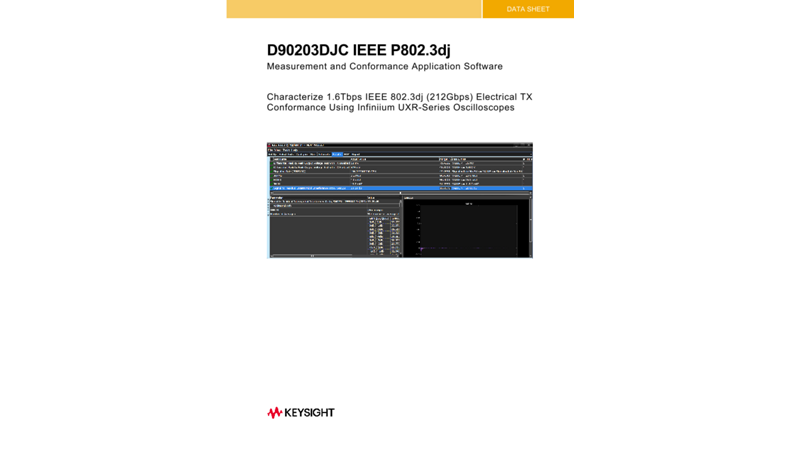

D90203DJC IEEE P802.3dj Measurement and Conformance Application Software

The D90203DJC solution is an Infiniium UXR Series Oscilloscope based electrical validation software application which performs IEEE P802.3dj 212Gbps physical layer electrical validation for C2M (Clause 176D) and CR (Annex 179A). C2C (Annex 176C) and KR (Clause 178) support will follow as these sections are advanced in the draft P802.3dj specification. This semi-automated test solution will support unform application of the accepted measurement science and methods established by the IEEE P802.3dj technical task force’s draft specifications. Test limits and methodology are all subject to change before the final IEEE standards release which is expected in Q4 2025.
