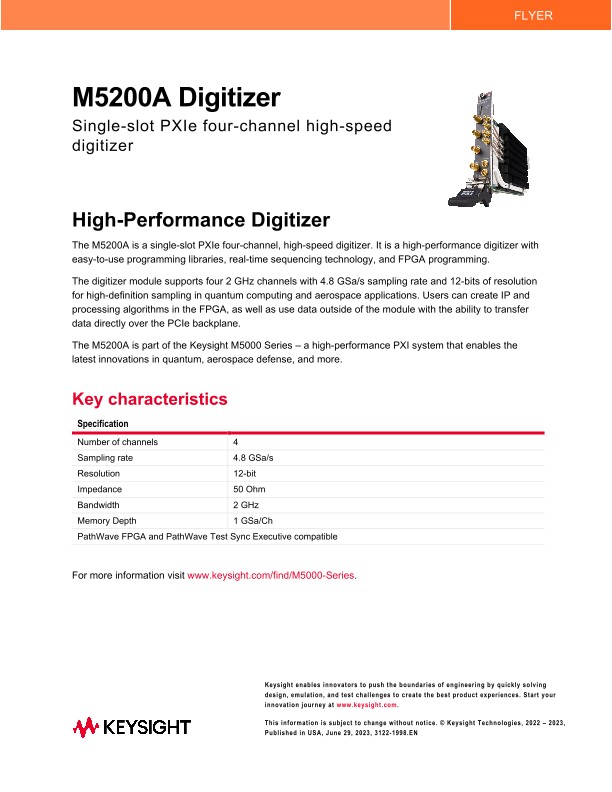

M5200A Digitizer
Flyers
High-Performance Digitizer
The M5200A is a single-slot PXIe four-channel, high-speed digitizer. It is a high-performance digitizer with easy-to-use programming libraries, real-time sequencing technology, and FPGA programming.
The digitizer module supports four 2 GHz channels with 4.8 GSa/s sampling rate and 12-bits of resolution for high-definition sampling in quantum computing and aerospace applications. Users can create IP and processing algorithms in the FPGA, as well as use data outside of the module with the ability to transfer data directly over the PCIe backplane.
The M5200A is part of the Keysight M5000 Series – a high-performance PXI system that enables the latest innovations in quantum, aerospace defense, and more.
Key characteristics
Specification
Number of channels |
4 |
Sampling rate |
4.8 GSa/s |
Resolution |
12-bit |
Impedance |
50 Ohm |
Bandwidth |
2 GHz |
Memory Depth |
1 GSa/Ch |
PathWave FPGA and PathWave Test Sync Executive compatible |
|
