Keysight M8190A-002

Q: When would I need a vector signal generator?

The vector signal generator is a type of signal generator that generates radio frequency signals with complex modulation formats. When a radio signal modulates, it changes either the amplitude or the frequency of the carrier wave.

Q: Signal generator vs function generator

The function generator is a type of signal generator that is used to generate simple repetitive waveforms. Typically this type of signal generator will produce waveforms such as sine waves, sawtooth waveforms, square and triangular waveforms. Please refer to Basic Oscilloscope Fundamentals for more information on waveforms. Digital signal processing techniques may be used to generate the waveforms digitally, then convert them from digital into analog format. This is especially true when you only require the waveforms to be at lower frequencies. However, higher frequency versions can be obtained.

Q: Signal generator vs oscilloscope

An oscilloscope “scopes out” or monitors a given signal applied on its input. It displays the signal as voltage vs time. A signal generator can be used to generate a signal with specific characteristics to test devices. A signal generator and an oscilloscope together form a tool that could, for example, diagnose an amplifier. The oscilloscope could then perform basic math on both the input and output to calculate, for example, changes in gain or linearity over a given range of parameters. Keysight offers two standards of used equipment: Keysight Premium Used and Keysight Used. Keysight Premium Used instruments are fully refurbished to factory new condition, with the same warranty as new ones. Keysight Used equipment is tested and working with the cosmetic appearance described in each product listing.

2 Channels

ID: P08-100094

Instrument may vary

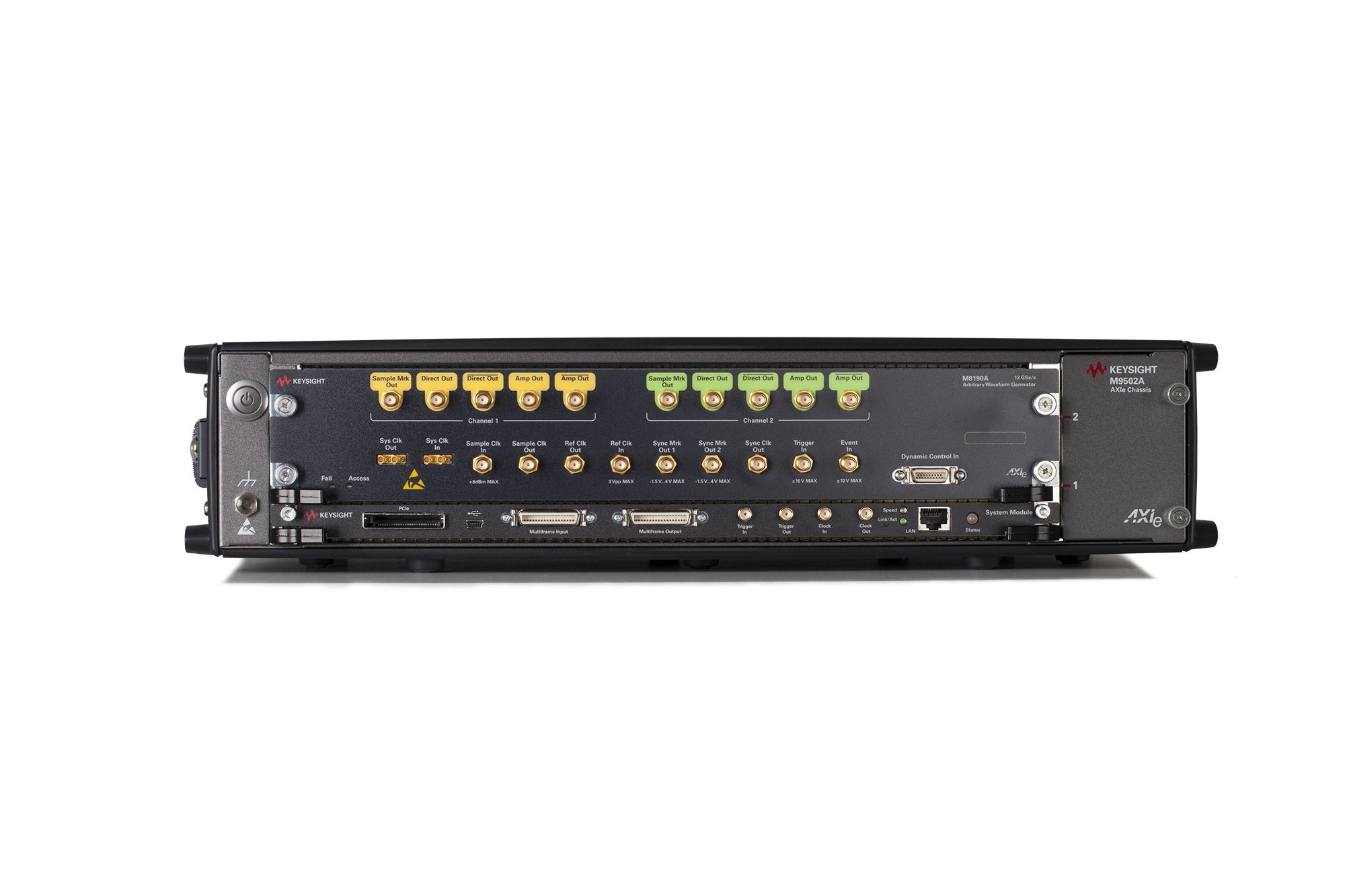

Keysight Premium Used M8190A-002 - Stock Image 1

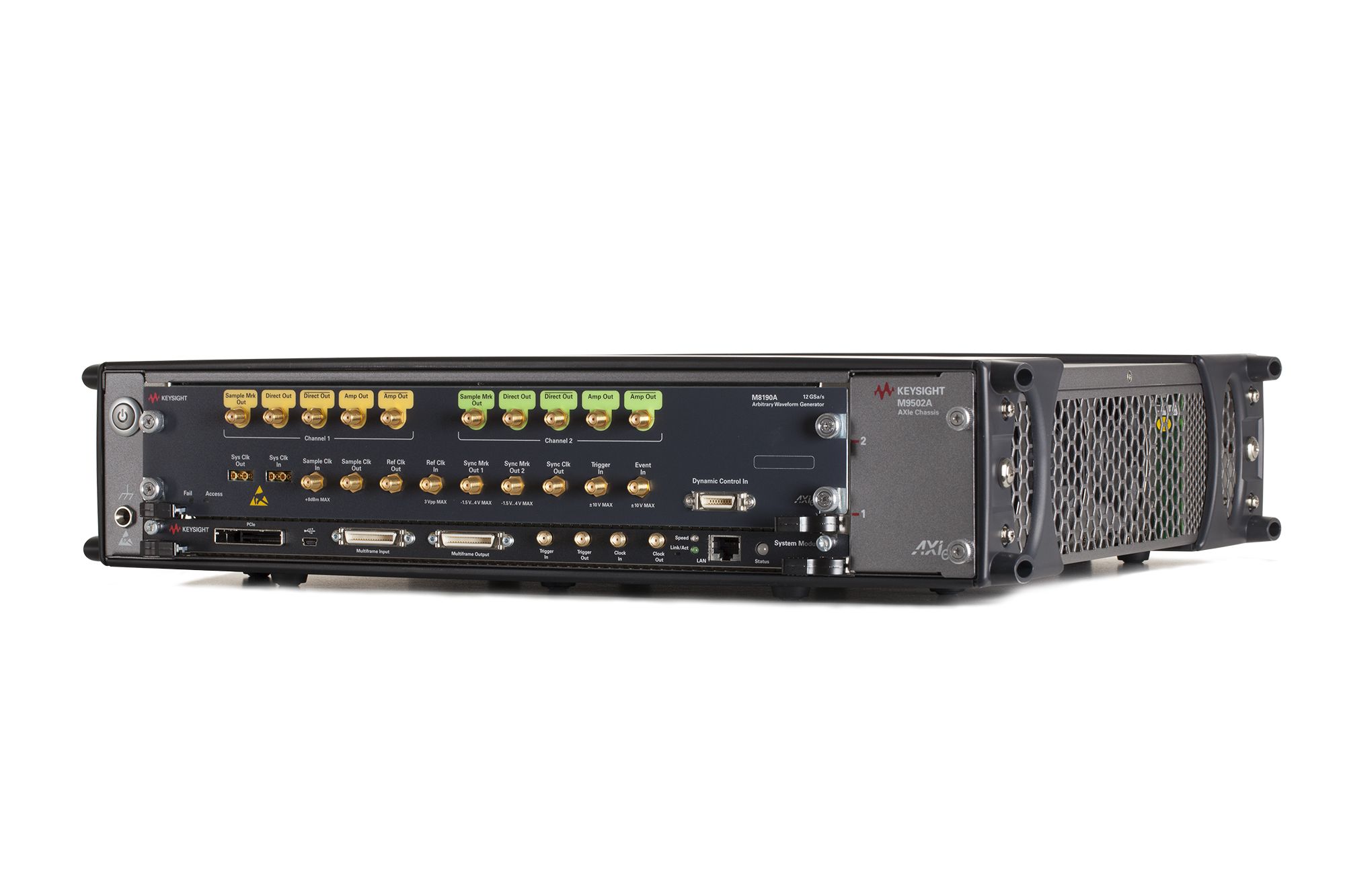

Keysight Premium Used M8190A-002 - Stock Image 2

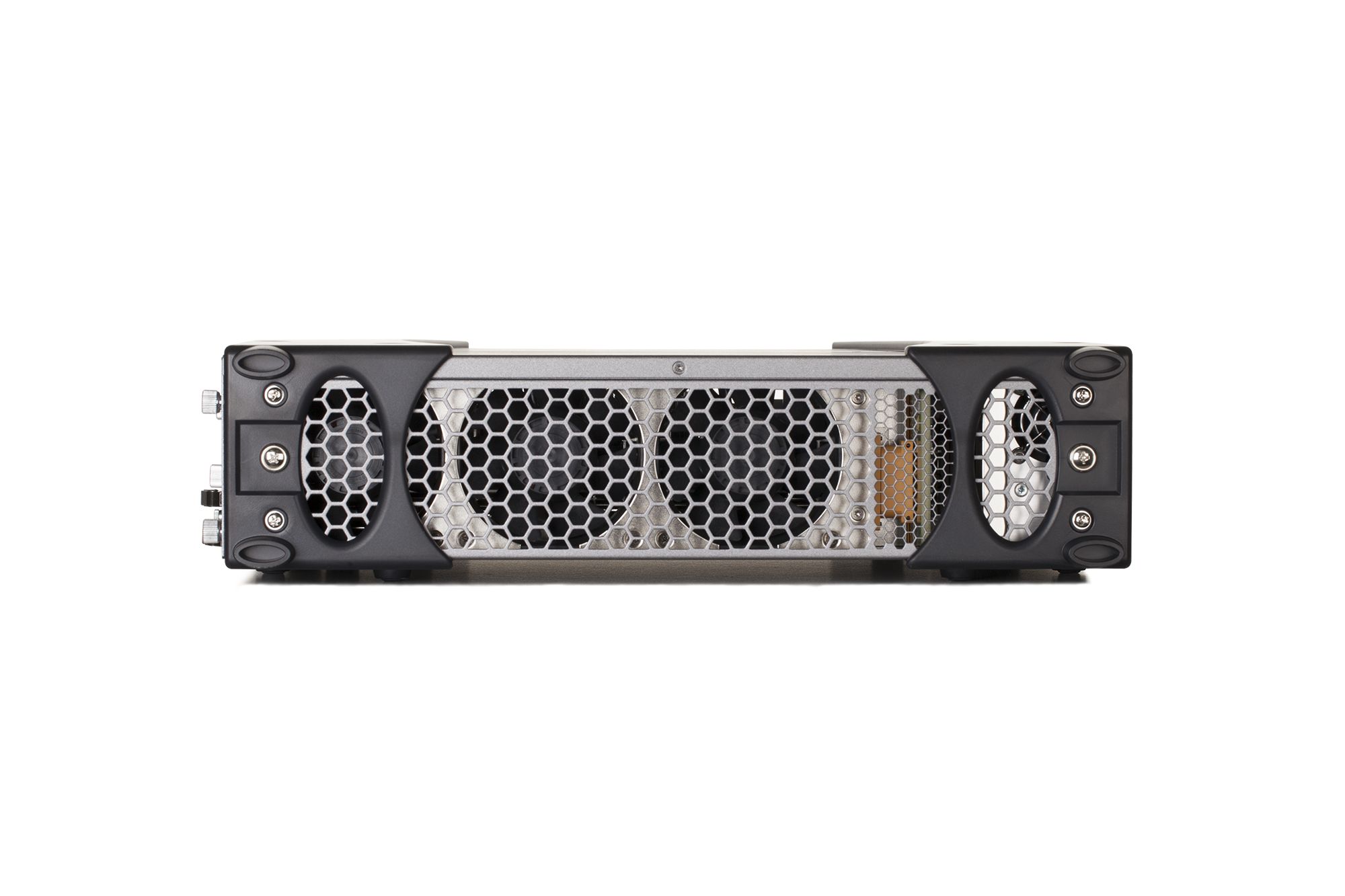

Keysight Premium Used M8190A-002 - Stock Image 3

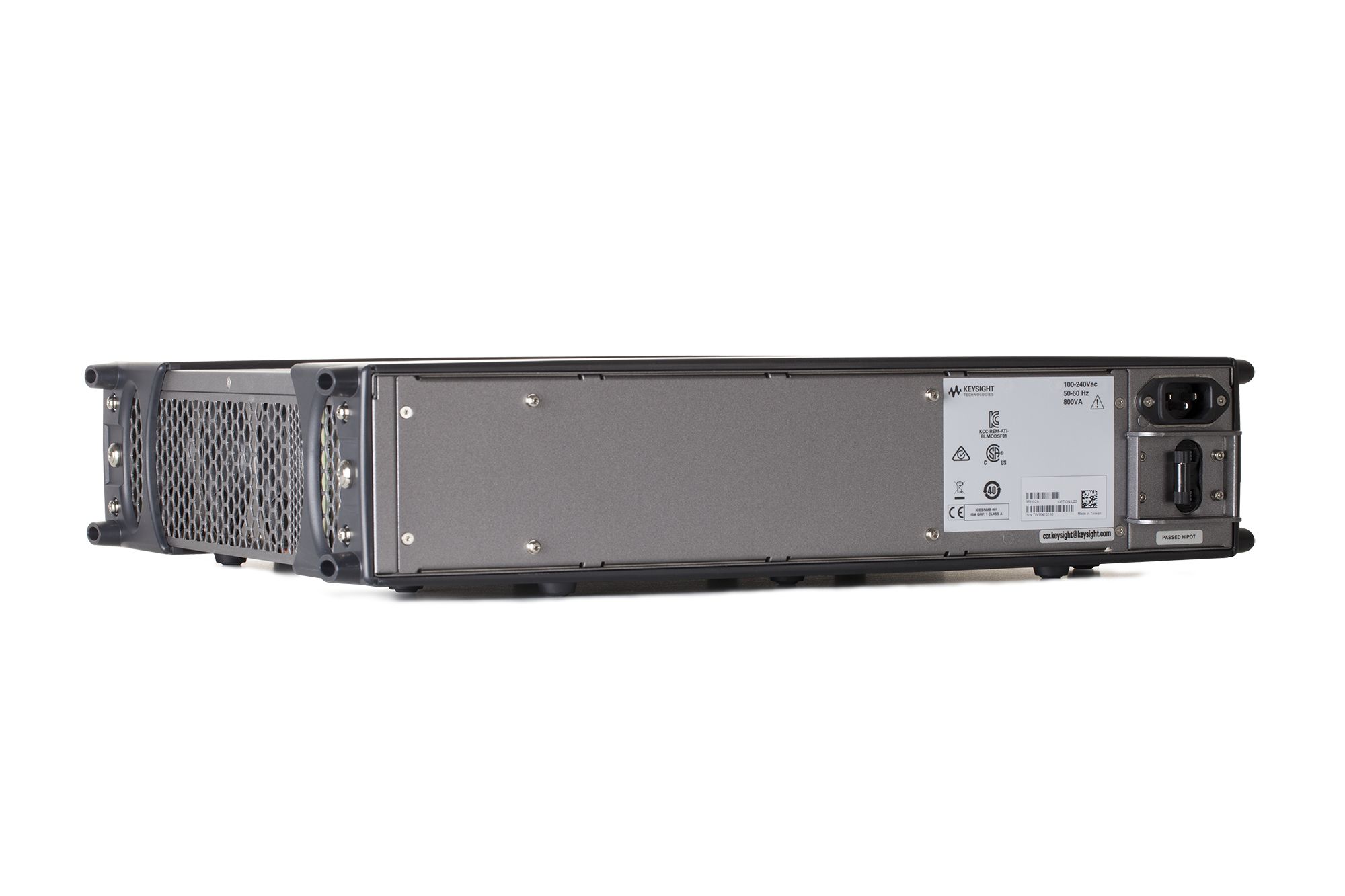

Keysight Premium Used M8190A-002 - Stock Image 4

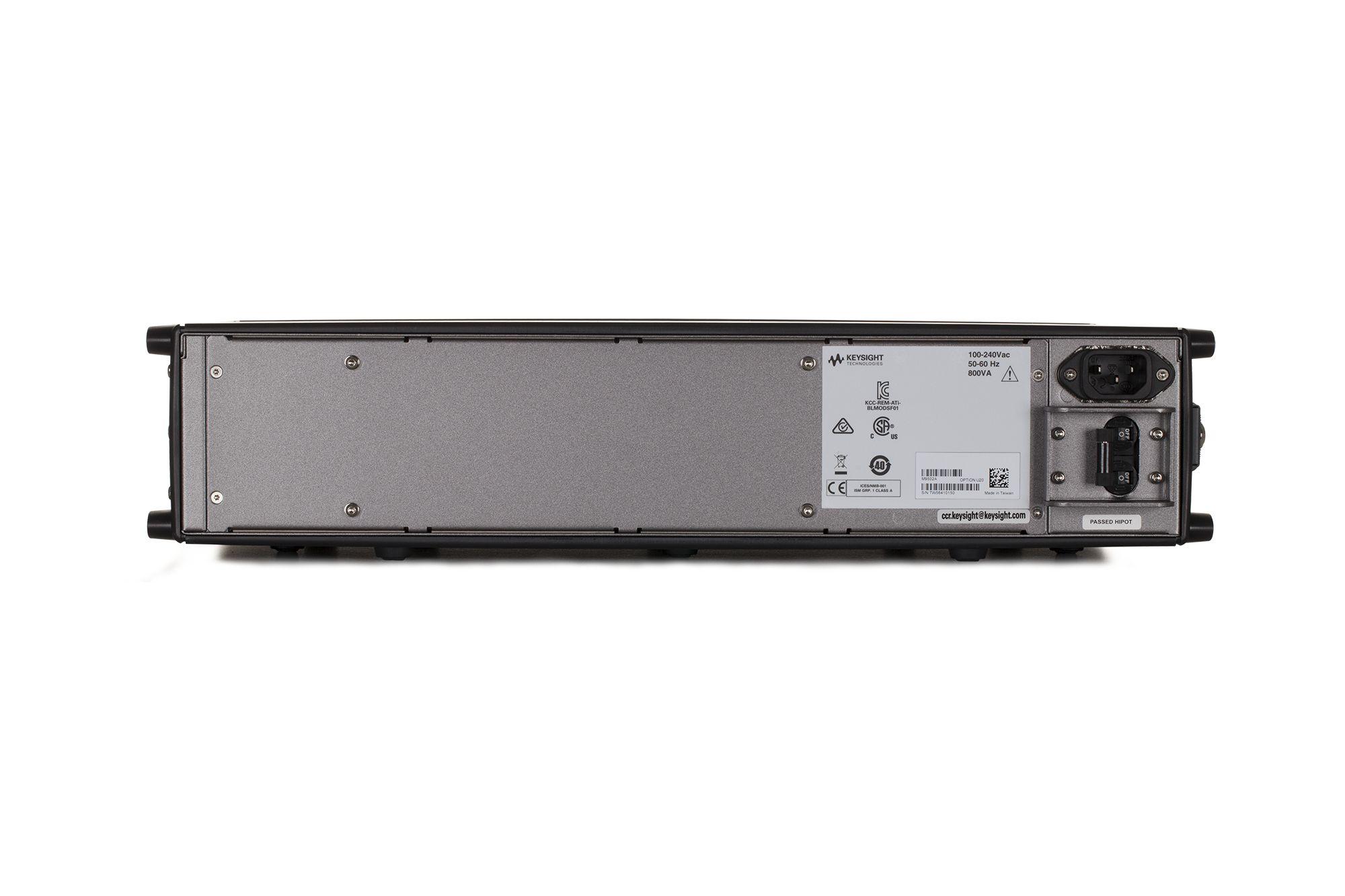

Keysight Premium Used M8190A-002 - Stock Image 5

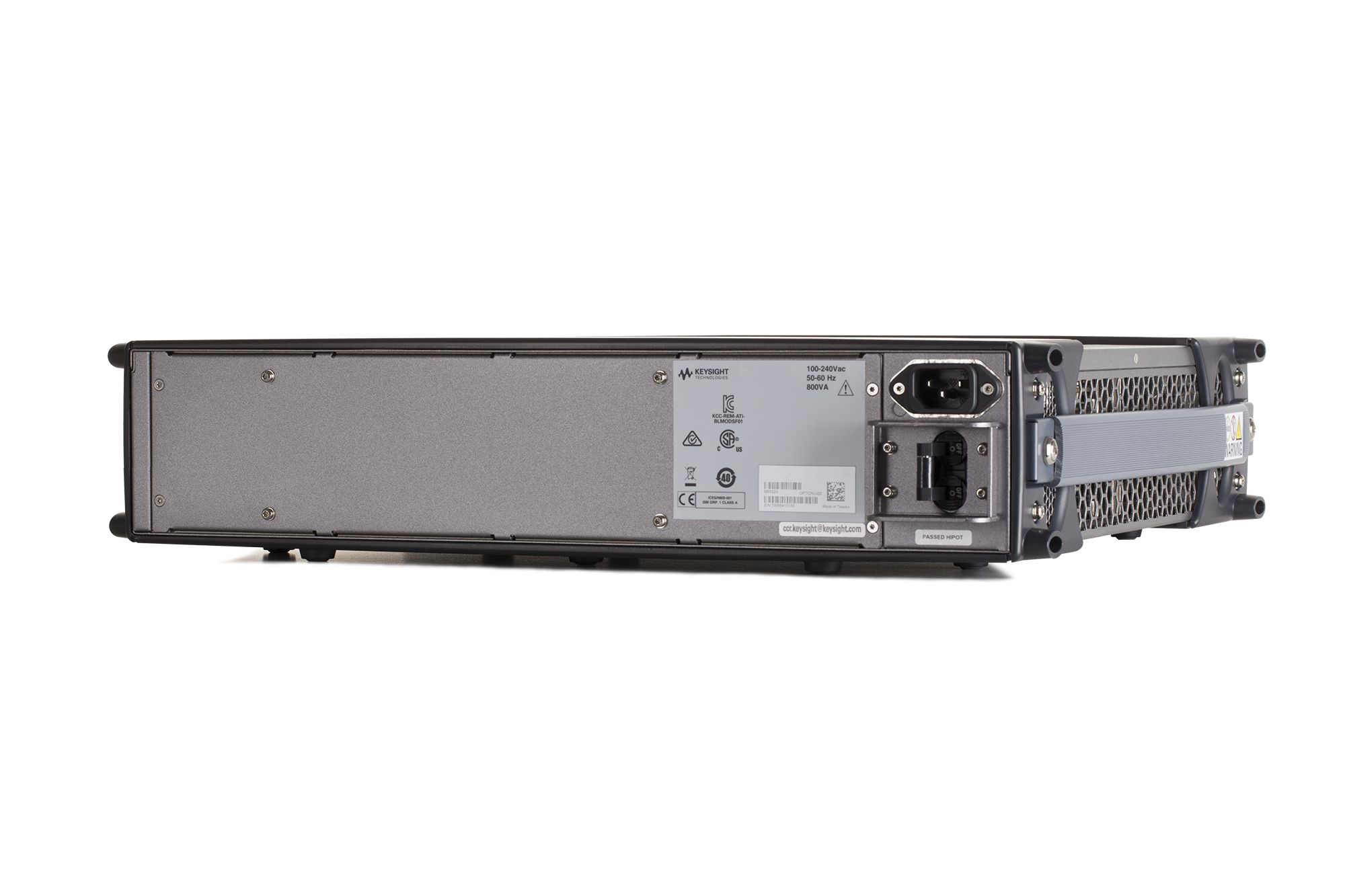

Keysight Premium Used M8190A-002 - Stock Image 6

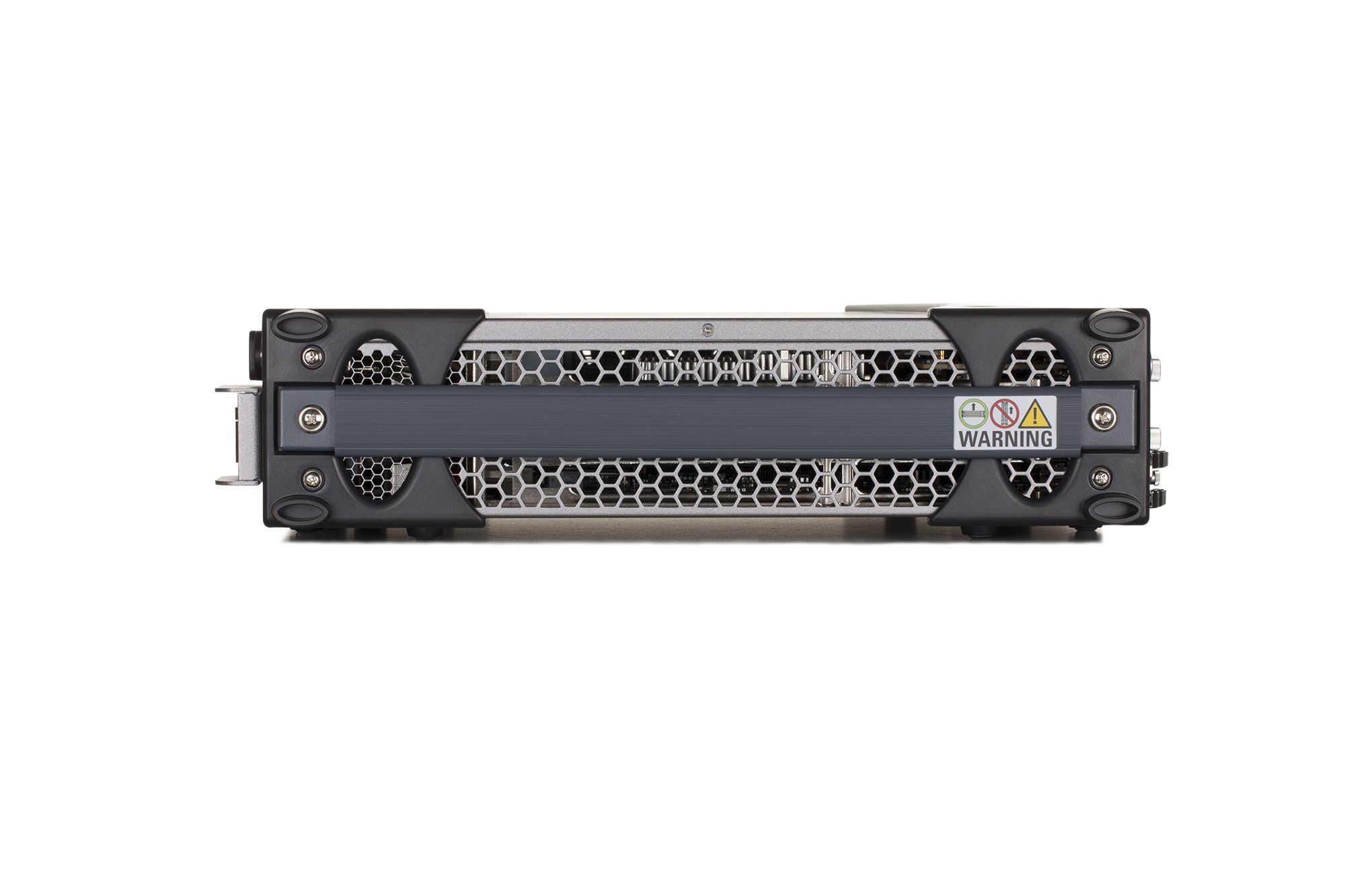

Keysight Premium Used M8190A-002 - Stock Image 7

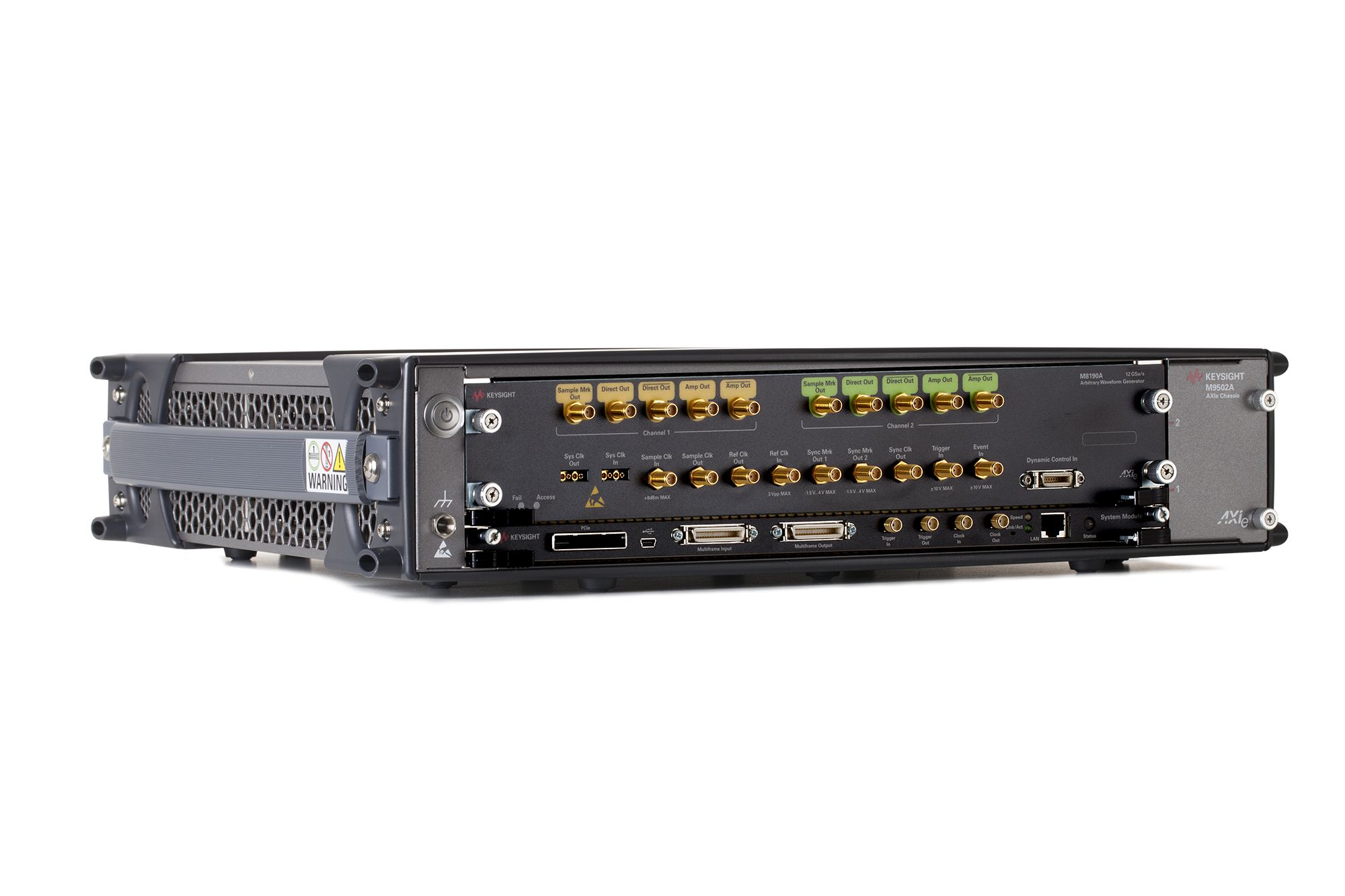

Keysight Premium Used M8190A-002 - Stock Image 8

Keysight M8190A-002

2 Channels

Refurbished, like New

Calibrated + Measurement Report

Like New Warranty

KeysightCare available

Accessories Included

Configurable

Save 25%

CAD 118,729.50

List Price CAD 158,306.00

Excl. taxes.

Set Price Alert

Save

For professional and industrial use only.

Free shipping included. Ships from Malaysia. Ships to Canada within 4 weeks.

Request Quote

Online checkout is unavailable for this offer. Please request a quote to proceed

From

CAD 118,729.50 Save 25%

Request Quote

002	Arbitrary Waveform Generator, 2 Channels	Installed
12G	12 GSa/s with 12 bit resolution	Installed
14B	14 bit resolution with 8 GSa/s	Installed

02G	Upgrade from 128 MSa to 2 GSa Memory	On request
12G	12 GSa/s with 12 bit resolution	On request
14B	14 bit resolution with 8 GSa/s	On request
1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)	On request
AMP	Additional AC and DC Amplifier	On request
BU1	Bundle 1 consisting of one M9505A 5-slot AXIe Chassis with USB Option and M9537A AXIe Embedded PC Controller	On request
BU2	Bundle 2 consisting of one M9502A 2-slot AXIe Chassis with USB Option	On request
DUC	Digital Upconversion License for the M8190A Arbitrary Waveform Generator	On request
FSW	Fast Switching	On request
LPN	Arbitrary Waveform Generator, 2 Channels with Low Phase Noise	On request
SCD	Standard Calibration Document	On request
SEQ	Sequencer	On request
Z54	Calibration Certificate for Z540	On request

Addable options follow the same discount percentage as the listed offer.

Request a customized version of this model by requesting a Custom Quote

Keysight's M8190A - A Keysight AWG is the source of greater fidelity, delivering high resolution and wide bandwidth – simultaneously.

Precision AWG with two DAC settings

14-bit resolution up to 8 GSa/s
12-bit resolution up to 12 GSa/s

High-speed arbitrary waveform generators

Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
Spurious-free-dynamic range (SFDR) up to 90 dBc typical
Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing

Unique Performance – Unique Value

Up to 90 dBc SFDR- Tones clearly stand out of noise (Even with thousands of tones)
2 GSa memory per channel- Realistic signal scenarios with long play time
5 GHz analog bandwidth- Mimic analog imperfections with custom ISI

Key applications

Radar, Satellite, Electronic Warfare, Multilevel Signals
ADC testing (Analog Digital Converter testing), Jitter Margin Testing
Digital Video, Noise Power Ratio Measurement, Wireless HD, HDMI, MHL
IEEE 802.11ad, CaTV, OFDM, Software Defined Radio

Enhance your reality - with the M8190A 12 GSa/s Arbitrary Waveform Generator

From low-observable systems to high-density comms, testing is more realistic with precision arbitrary waveform generation. Now you can take reality to the extreme: A Keysight AWG is the source of greater fidelity, delivering high resolution and wide bandwidth – simultaneously. This unique combination lets you create signal scenarios that push your design to the limit and bring new insight to your analysis. Get bits and bandwidth – and enhance your reality.

Keysight M8190A-002 Data sheet

Keysight M8190A-002 Configuration Guide

Keysight M8190A-002 User Manual

For Keysight Premium Used listings like-new accessories (e. g. a power cord) are included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.

For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.

Resources

Keysight M8190A-002 Data sheet Keysight M8190A-002 Configuration Guide Keysight M8190A-002 User Manual Keysight Terms of Sale - Canada
