Source Measure Units Catalog

Explore the comprehensive range of Keysight source measure units engineered to deliver precise voltage and current sourcing with simultaneous measurement capabilities. This catalog highlights benchtop and modular SMUs across Essential, Expert, and Pro performance levels with up to 6.5 digits source resolution and 10 fA minimum current measurement resolution.

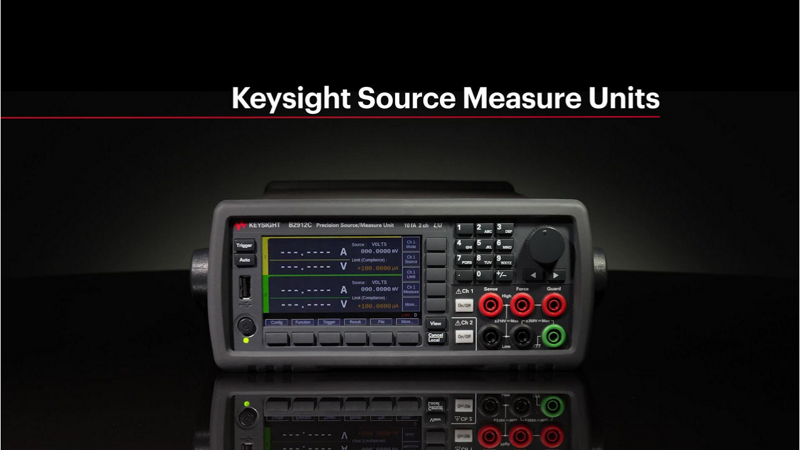

Keysight Source Measure Units

Discover Keysight’s portfolio of source measure units — Essential, Expert, Pro, and Modular — built for high accuracy, precision, integrated functionality, and ultra‑fast sampling from early design through next‑generation R&D.

Using Source/Measure Unit as an Ammeter

This B2900A demo guide shows how easily you can use the B2900A series SMU as an ammeter step by step via an example to measure current from quasi current source circuit.

Source Measure Units Buying Guide

Selecting the right source measure unit (SMU) depends on the accuracy, speed, and performance your application demands. Keysight offers three performance grades of SMUs: Essential, Expert, and Pro. This buying guide compares each grade, their specifications, and the applications they enable such as general-purpose device characterization and high-speed transient analysis.

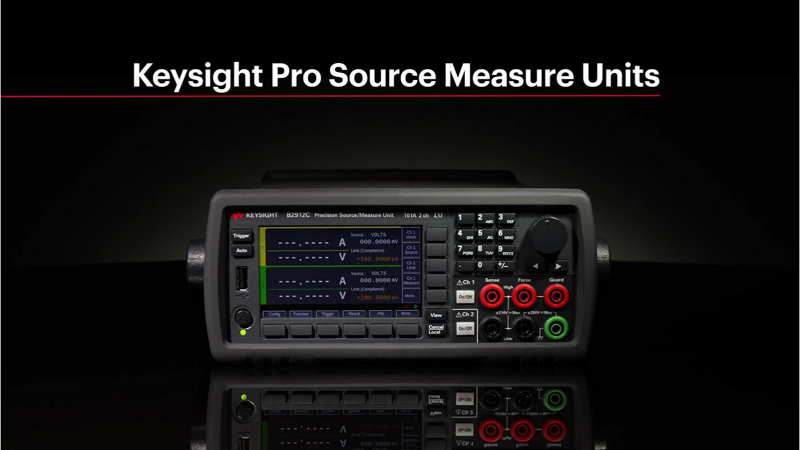

Keysight Pro Source Measure Units

Discover Keysight Pro Source Measure Units, delivering the highest performance in a benchtop SMU with ultra‑high precision, 6.5‑digit measurement resolution, fast 100 kSa/s sampling, roll‑view visualization, high‑capacitance drive mode, and advanced sourcing for cutting‑edge R&D and device characterization.

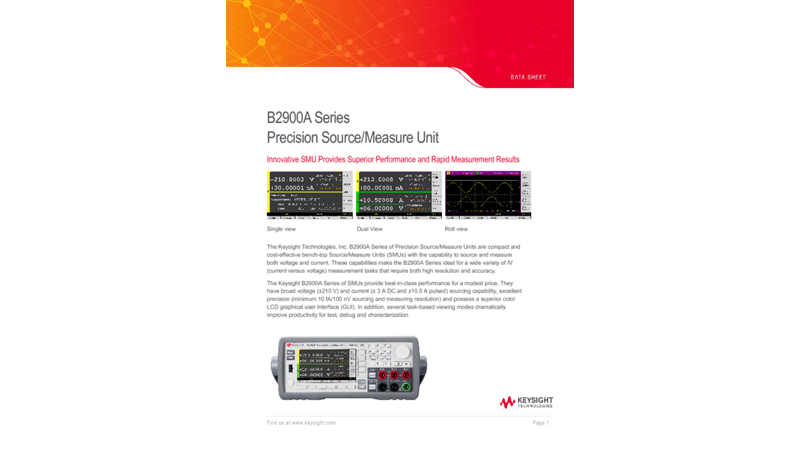

B2900A Series Precision Source/Measure Unit

Keysight B2900A Series Precision Source / Measure Units are cost-effective source/measurement solutions offering superior performance and a graphical user interface.

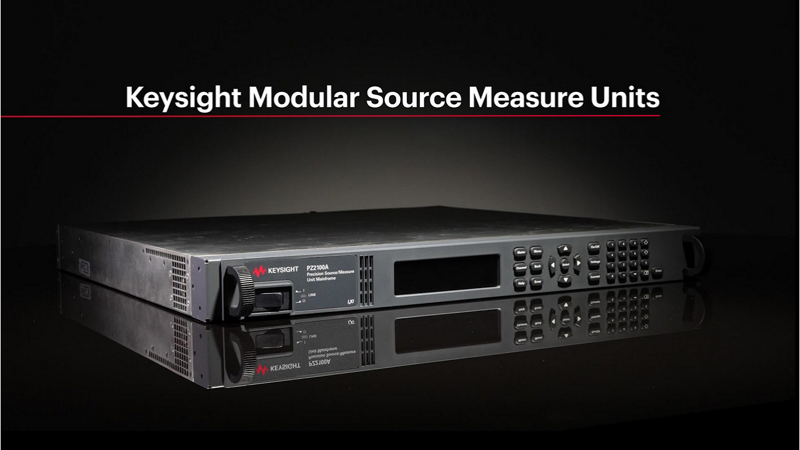

Keysight Modular Source Measure Units

Discover Keysight Modular SMUs, delivering benchtop SMU performance in a compact, high‑density modular form factor. Configure up to 20 channels, choose PXIe or standalone mainframes, and achieve fast sampling, precision sourcing, pulsed operation, and excellent measurement resolution for R&D and automated production testing.

M9601A PXIe Precision Source/Measure Unit

The high-performance PXIe SMU enabling faster precise dynamic measurement from DC to 20 µs pulse, output up to 210 V/315 mA, and 10 fA resolution and low source noise.

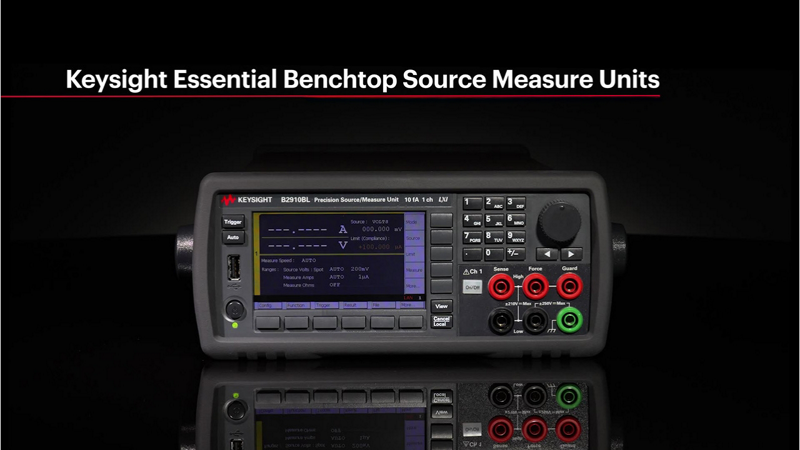

Keysight Essential Benchtop Source Measure Units

Discover Keysight Essential Source Measure Units, delivering enhanced measurement and sourcing capabilities in an entry‑level SMU. With six integrated instruments, 4‑quadrant operation, built‑in math, pass/fail testing, and flexible connectivity, they provide reliable, high‑performance testing in a compact benchtop design.

Keysight Expert Benchtop Source Measure Units

Discover Keysight Expert Source Measure Units, delivering high‑resolution, high‑precision measurements with single‑ and dual‑channel options, pulsed measurement capability, deep memory, and seven integrated instruments—ideal for semiconductor, materials, and advanced electronic device testing.

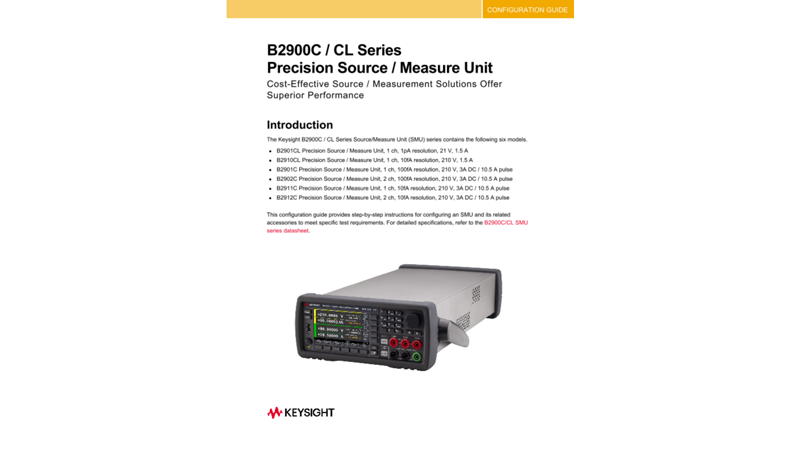

B2900C/CL Series Precision Source/Measure Unit

The B2900C/CL Series Source/Measure Unit (SMU) Configuration Guide provides detailed, step-by-step instructions for configuring the B2900C/CL SMU and its related accessories to meet specific test requirements. It covers the selection of models, optional accessories, measurement methods, and software control options to ensure optimal performance and accuracy in various testing scenarios.

M9111A PXIe High-Speed Source/Measure Unit

Data Sheet and specifications for the M911A PXIe high-speed source measurement unit. SMU

PZ2110A Precision Source/Measure Unit

High-Speed SMU enabling best-in-class dynamic/pulsed measurements with a narrow pulse down to 10 μs at a fast sampling rate of up to 15 MSa/s for a wide range of emerging applications

B2900B/BL Precision Source/Measure Unit (SMU)

B2900B/BL series Graphical SMU solves precision measurement challenges and improve test efficiency from lab to manufacturing for a wide range of applications at the superior cost performance.

B2900C/CL Precision Source/Measure Unit (SMU)

he B2900C/CL Precision Source/Measure Unit (SMU) is a versatile instrument designed to address precision measurement challenges and enhance test efficiency across a wide range of applications. It features integrated 4-quadrant source/measure capabilities, high-speed digitizing, and high-resolution measurements, making it ideal for applications in optical devices, organic devices, photovoltaic cells, nano-technology materials, power management devices, semiconductor devices, and more.

Source / Measure Units

Testing complex systems at a high degree of reliability is a challenging task. Engineers require a precision source / measure unit (SMU), an instrument that combines a source and a measure function on the same channel. Keysight courses cover the mandatory applications to help you develop a deeper understanding of SMUs.

U2722A/U2723A USB Modular Source Measure Unit

This datasheet contains the key features, specifications and ordering information of the U2722A/U2723A USB source measure unit.

B2900B/BL Series Precision Source/Measure Unit

This configuration guide has step-by-step instructions to help you configure an SMU and its related accessories to meet specific test requirements.

M9601A PXIe Precision Source/Measure Unit

This guide provides a step-by-step instruction to help you configure the M9601A to meet the desired test requirements.

M9602 and M9603A PXIe Precision Source/Measure Units

This is a datasheet for M9602/03A PXIe Precision Source/Measure Units.
