Electrical Structural Tester

The Keysight s8050 Electrical Structural Tester (EST) plays a critical role in post-mold semiconductor testing, detecting wire bond defects early and ensuring reliable ICs before functional and final testing.

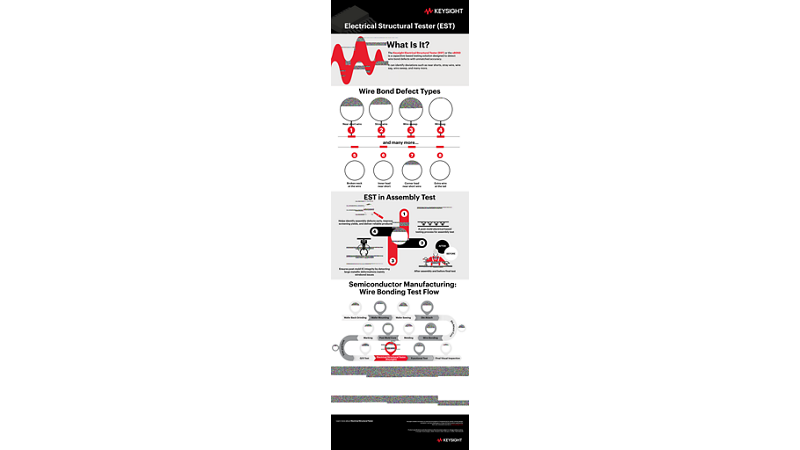

Electrical Structural Tester

The Keysight Electrical Structural Tester is a cutting-edge solution designed to enhance defect detection in integrated circuit (IC) wire bonds using capacitive technology. It identifies various wire bond defects, including near-shorts, stray wires, wire sweep, and wire sags, helping to mitigate challenges posed by Electrical Overstress (EOS) on chip integrity. Optimized for production efficiency, the tester can support up to twenty parallel test sites, achieving a Units Per Hour (UPH) rate of 72,000 ICs, making it ideal for production-level testing processes and field return evaluations. This ensures manufacturers can produce high-quality components, reduce product returns, and maintain the reliability and consistency of electronic products.

Electrical Structural Tester

The Keysight Electrical Structural Tester is a cutting-edge solution designed to enhance defect detection in integrated circuit (IC) wire bonds using capacitive technology. It identifies various wire bond defects, including near-shorts, stray wires, wire sweep, and wire sags, helping to mitigate challenges posed by Electrical Overstress (EOS) on chip integrity. Optimized for production efficiency, the tester can support up to twenty parallel test sites, achieving a unit per hour (UPH) rate of 72,000 ICs, making it ideal for production-level testing processes and field return evaluations. This ensures manufacturers can produce high-quality components, reduce product returns, and maintain the reliability and consistency of electronic products.

How Capacitive-Based Testing Enhances Wire Bond Detection

The Keysight s8050 Electrical Structural Tester revolutionizes wire bond defect detection using nVTEP capacitive testing technology. It provides high-speed, accurate screening of ICs, detecting defects such as near-shorts, sweeping, and lifted wires that are likely to escape conventional testing methods. The s8050 enables manufacturers to achieve higher throughput, reducing reliance on sampling inspections while improving overall product quality.

Wire Bond Integrity Tester for Post-Mold Inspection in High-Volume Semiconductor Assembly

The Keysight s8050 Electrical Structural Tester (EST) functions as a high-throughput screening station, specifically optimized for high-volume wirebonded package testing. It leverages Nano Vecterless Test Enhanced Performance (nVTEP) technology to efficiently detect defects in wirebonded packages. By utilizing this advanced testing method, the s8050 enables rapid identification of regions within the Device Under Test (DUT) that exhibit significant wirebonding deformations, ensuring early defect detection and improved manufacturing quality.

Keysight Electrical Structural Tester

This spotlight video introduces Keysight Electrical Structural Tester (EST) which leverages cutting-edge nano Vectorless Test Enhanced Performance (nVTEP) technology to provide unparalleled defect detection capabilities. By creating a capacitive structure between the wire bond and a sensor plate, the Keysight EST can identify subtle defects such as wire sag, near shorts, and stray wires, ensuring comprehensive assessment of wire bond integrity.

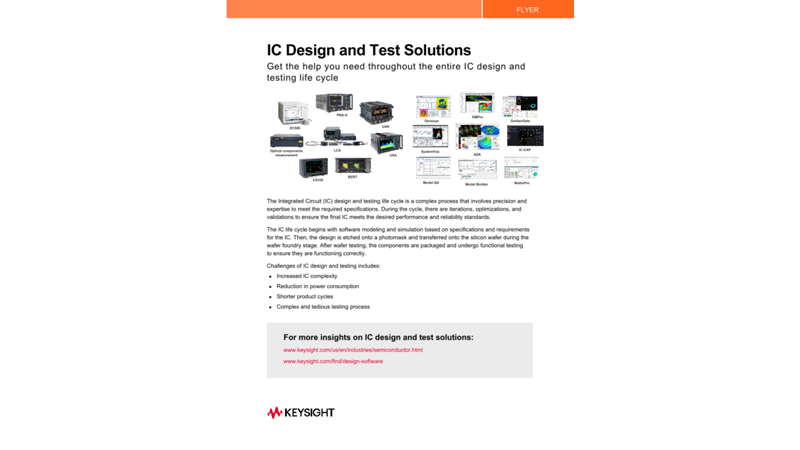

IC Design and Test Solutions

From design all the way to functional test, accelerate your IC design process with software, hardware, and customized professional services from Keysight. Get IC related tools and solutions aimed at different stages of the IC design and testing lifecycle.

Wire Bond Electrical Structural Test Methodologies

Wire bonding, a foundational process in microelectronics, is essential for establishing a robust and low-resistance electrical connection between semiconductor chips and their respective packages or, in the case of multi-chip modules, between different chips. A connection is made from the bond pad on the chip to a corresponding pad on the package substrate or another chip through the meticulous bonding of a fine wire—usually composed of materials like gold, aluminum, or copper. This intricate process ensures the device's functionality, reliability, and overall performance. Several wire bonding testing methods have been developed and adopted to capture defects in molded integrated circuits (ICs) in microelectronics. However, the current testing methods on the market have their own strengths and weaknesses; they are not comprehensive but rather complement each other. An innovative method called capacitive testing has been developed to provide more comprehensive wire bond testing, detecting wire bond defects that are invisible with conventional testing methods. These defects include near shorts, wire sweep, wire sagging, and more.

New Wire Bond Testing Solution Enhances Automotive IC Reliability

This success story highlights how Keysight’s capacitive-based Electrical Structural Tester (EST) enabled a top OSAT provider to eliminate wire bond defects in automotive ICs. By detecting hidden defects at high volumes, the solution reduced costly RMAs, enhanced reliability, and ensured the safety of automotive-grade ICs.

Measuring CNT Structures Using a Semiconductor Analyzer

The B1500A semiconductor device analyzer and the 4156C precision semiconductor parameter analyzer provide an electrical measurement solution for CNT structure characterization.

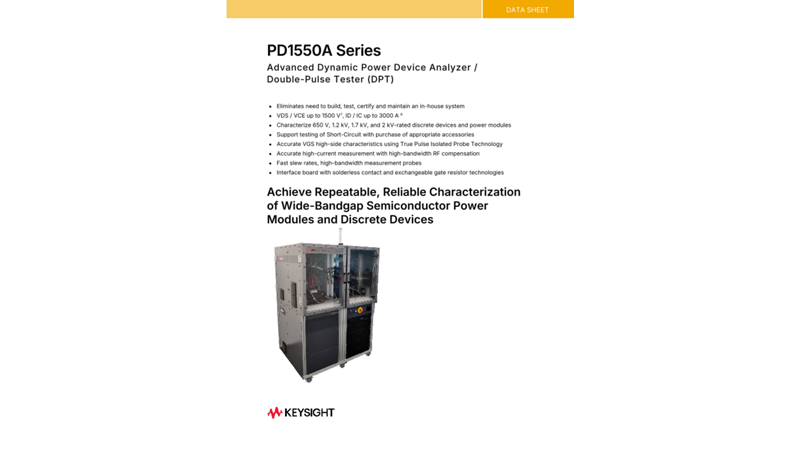

PD1550A Series

This product data sheet describes the PD1550A Advanced Dynamic Power Device Analyzer / Double-Pulse Tester (DPT) solution that is used to test wide-bandgap semiconductor-based discrete devices and power modules for critical power converter applications in automotive and energy applications, such as electric vehicles, photovoltaic inverters, and other power converters.

Accelerate Your MEMS Device Development and Manufacturing Efficiency Using Best-In-Class Impedance Test Instruments

This brochure describes a general overview of Keysight’s capabilities in MEMS device testing and generates awareness of Keysight impedance MEMS test solution to customer.

SL1550A EV - EVSE Charging Communication Interface Tester

The Com Tester is a fully integrated test adapter for electric vehicle communication controllers (EVCC) or supply equipment communication controllers (SECC) according to the Combined Charging System (CCS).

Electronic Components Tolerance and Test Limits for In-Circuit Test

In order for all assembled components to function correctly, components are measured and analyzed electrically using the In-circuit tester to ensure its value and performance are optimal.

Medical Company Increases Signal Integrity in Ultra-High Definition Endoscopy Systems

The medical landscape has dramatically transformed, with endoscopy emerging as a pivotal diagnostic tool that has revolutionized patient care. Endoscopy employs a flexible or rigid scope with a light source and camera. This diagnostic tool provides access to multiple internal organ systems, equipping healthcare providers with insight into internal anatomic structures of a person’s body for diagnostic evaluation and minimally invasive procedures such as laparoscopic surgery. This versatile procedure has expanded its reach across various organ systems, empowering healthcare providers with a comprehensive view of internal anatomic structures.A leading medical technology company specializing in endoscopy continuously produces an endoscope that delivers high-quality images for early diagnosis and minimally invasive surgery. With the advent of 4K and the impending shift to 8K imaging, the demand for high-definition video images is paramount for accurate medical procedures. The company’s R&D team had to ensure that the data transfer rate for these images exceeded 10 Gbps, a major technical hurdle. Keysight’s engineering experts recommended the high-speed digital design solutions, which comprise the Keysight Infiniium Z-Series oscilloscopes, Keysight bit error ratio testers (BERTs), Keysight vector network analyzers with time domain reflectometry (VNA-TDR), and Keysight PathWave Advanced Design System (ADS) software.

The Value of the in-Circuit Tester

This article discusses how in-circuit testers for PCBAs can play a significant role to enhance product value and increase production efficiency for electronics manufacturers. This article first appeared in the April 2011 issue of Circuits Assembly. Reprinted with kind permission from UP Media Group.

Testing Electrolytic Capacitors with In-Circuit Tester

A description of the alternate polarity test solution for electrolytic capacitor that mounted on printer circuit board assembly using the i3070 ICT system.

Scaling AI Data Centers

Scaling AI Data Centers explains why AI-scale computing pushes every part of the data center, and why removing one constraint often exposes the next. It presents a chip-to-cluster framework spanning pre-silicon design, wafers, chips and chiplets, boards, servers, racks, full data centers, and edge deployments. The document positions Keysight Technologies strategic advantage as breadth plus correlation: predict system behavior before hardware exists, map physical margins at the wafer and photonics layer, then validate interconnects and workloads under conditions that resemble production. Across the stack it highlights solution areas such as electronic design automation for chiplet interconnect and photonic design, automated silicon and silicon photonics wafer test, post-silicon validation for die-to-die standards like UCIe, and board-level signal, power integrity, and electromagnetic interference debugging. It then moves into server and rack validation with protocol analysis, 800G and 1.6T Ethernet transceiver workflows, high-scale traffic generation for training and inference patterns, and Ethernet transport validation for RoCEv2 and Ultra Ethernet. At data center and edge scale it adds emulation, security and performance testing, coherent optical transport analysis, network visibility, and wireless and AI-RAN validation. It concludes that multi-layer challenges demand multi-level expertise, pairing physics-based insight with system context to help teams stay confidently generations ahead.

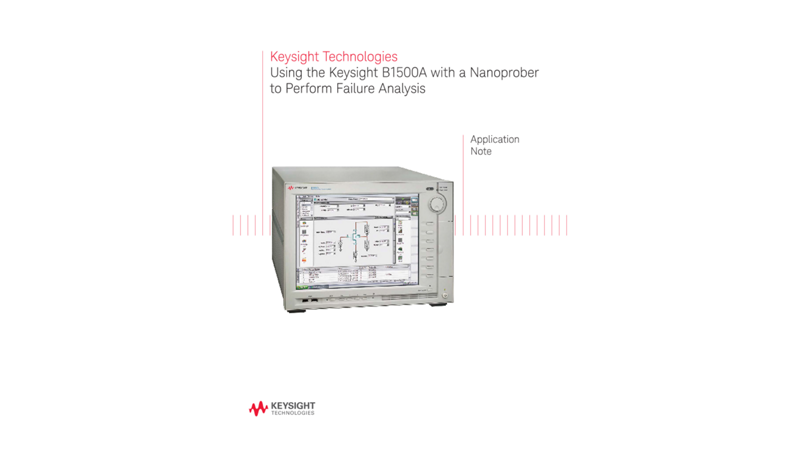

Failure Analysis Using the B1500A with a Nanoprobe

Learn to perform failure analysis and probe individual transistors using the B1500A Semiconductor Device Analyzer with a nanoprobe.

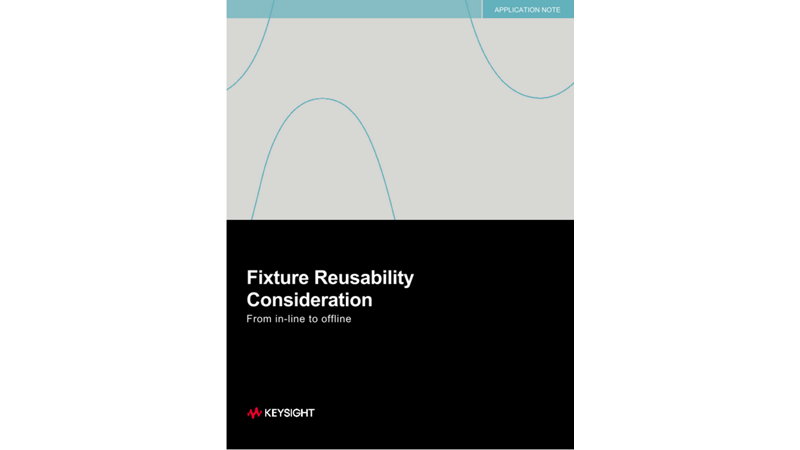

Fixture Reusability Consideration From In-line to Offline
