Deliver exceptional battery life. Only Keysight`s N6780 Series SMUs let you visualize the current drain from nA to A in one pass and one picture unlocking insights to deliver exceptional battery life. Accurately emulate a battery with exceptional sourcing.

• Stable, glitch-free sourcing and sinking (charge/eLoad), just like a battery.
• Programmable output resistance mimics the battery’s internal resistance.

Make measurements you didn’t think were possible.

• Characterize your device’s off-, sleep-, and transmit-mode current in one pass and one picture with Keysight’s exclusive patented seamless measurement ranging technology - no need to make multiple measurement sweeps.
• Perform battery rundown tests and characterize how your device performs with an actual battery with the SMU’s ammeter (zero-burden current shunt) mode.

Output ratings:

• Voltage: 20 V / 15 V / 10 V / 6 V
• Current: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A
• Power: Up to 80 W

Output voltage ripple & noise (PARD) from 20 Hz – 20 MHz:

• CV peak-to-peak: 15 mV
• CVrms: 1.5 mV

Programming accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):

• Voltage, 20 V, 15 V, 10 V, and 6 V ranges: 0.025% + 1.8 mV
• Current, 4 A, 5 A, 6.7 A, and 8 A ranges: 0.04% + 1.4 mA

Measurement accuracy (at 23°C ± 5°C)

• Voltage, 20 V range: 0.025% 1.8 mV
• Current, 8 A range: 0.04% + 1.5 mA
• Current, 100 mA range: 0.025% + 10 µA
• Current, 1 mA range: 0.025% + 100 nA

• Keysight N6785A Data sheet

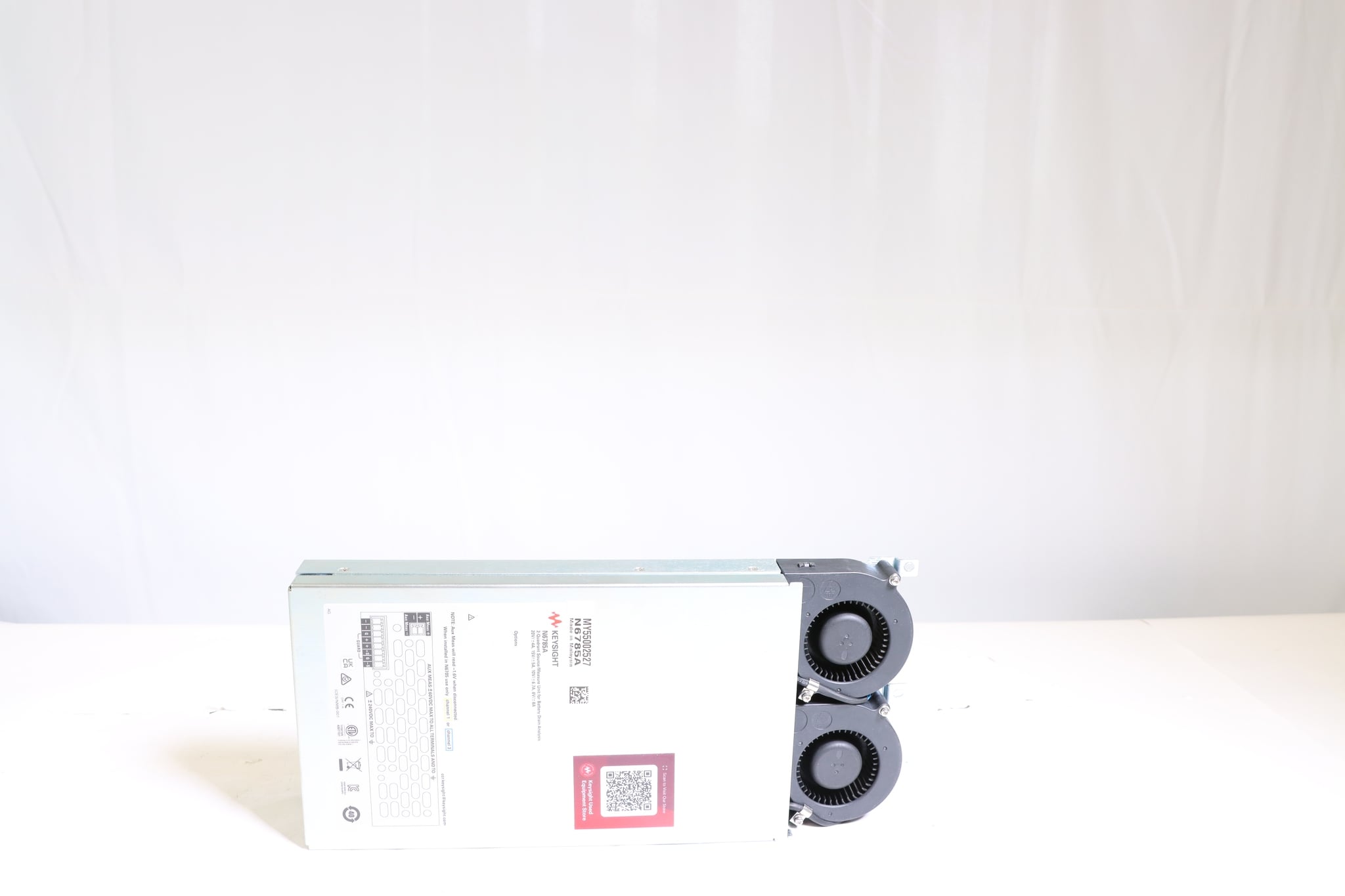

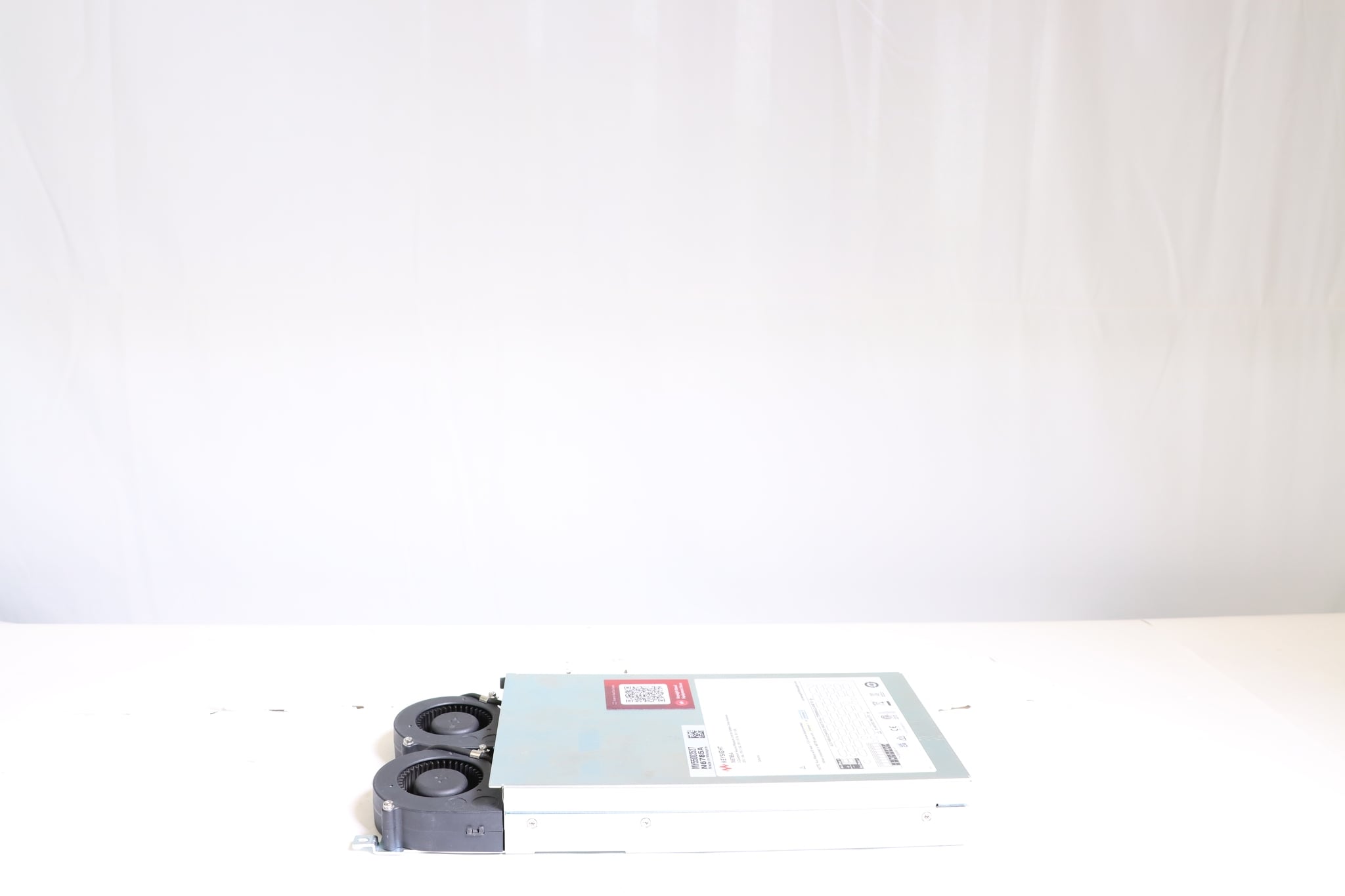

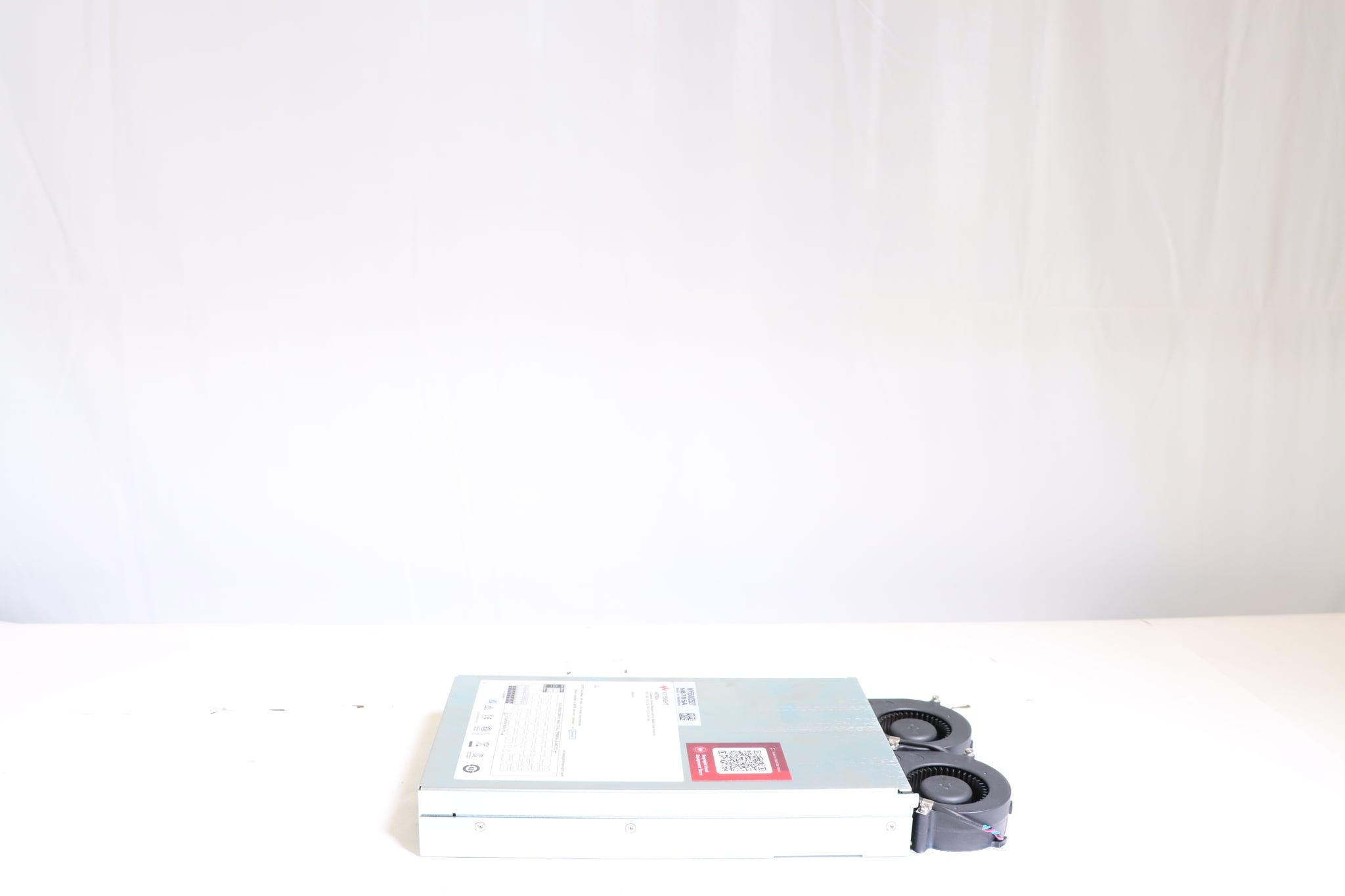

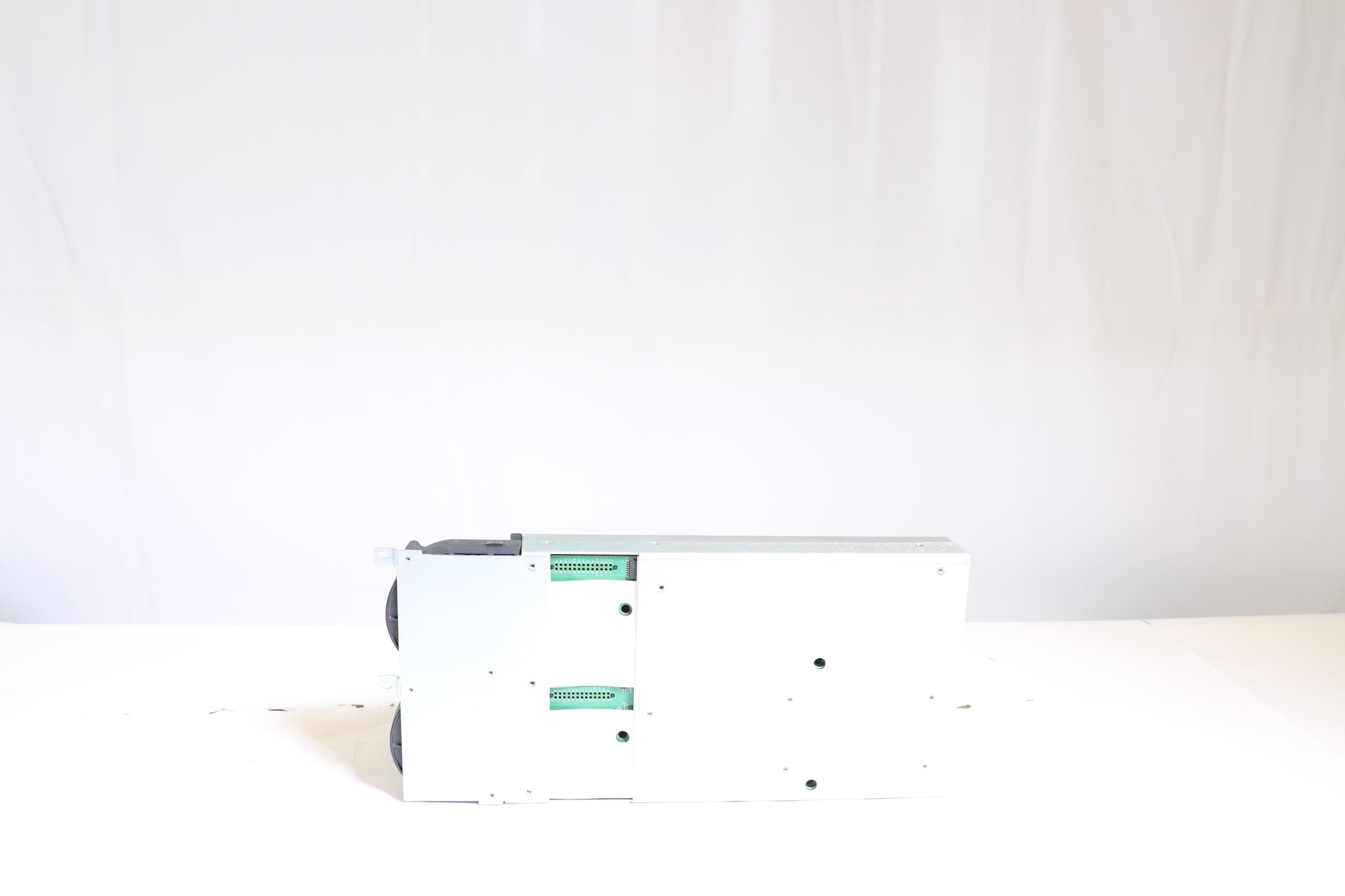

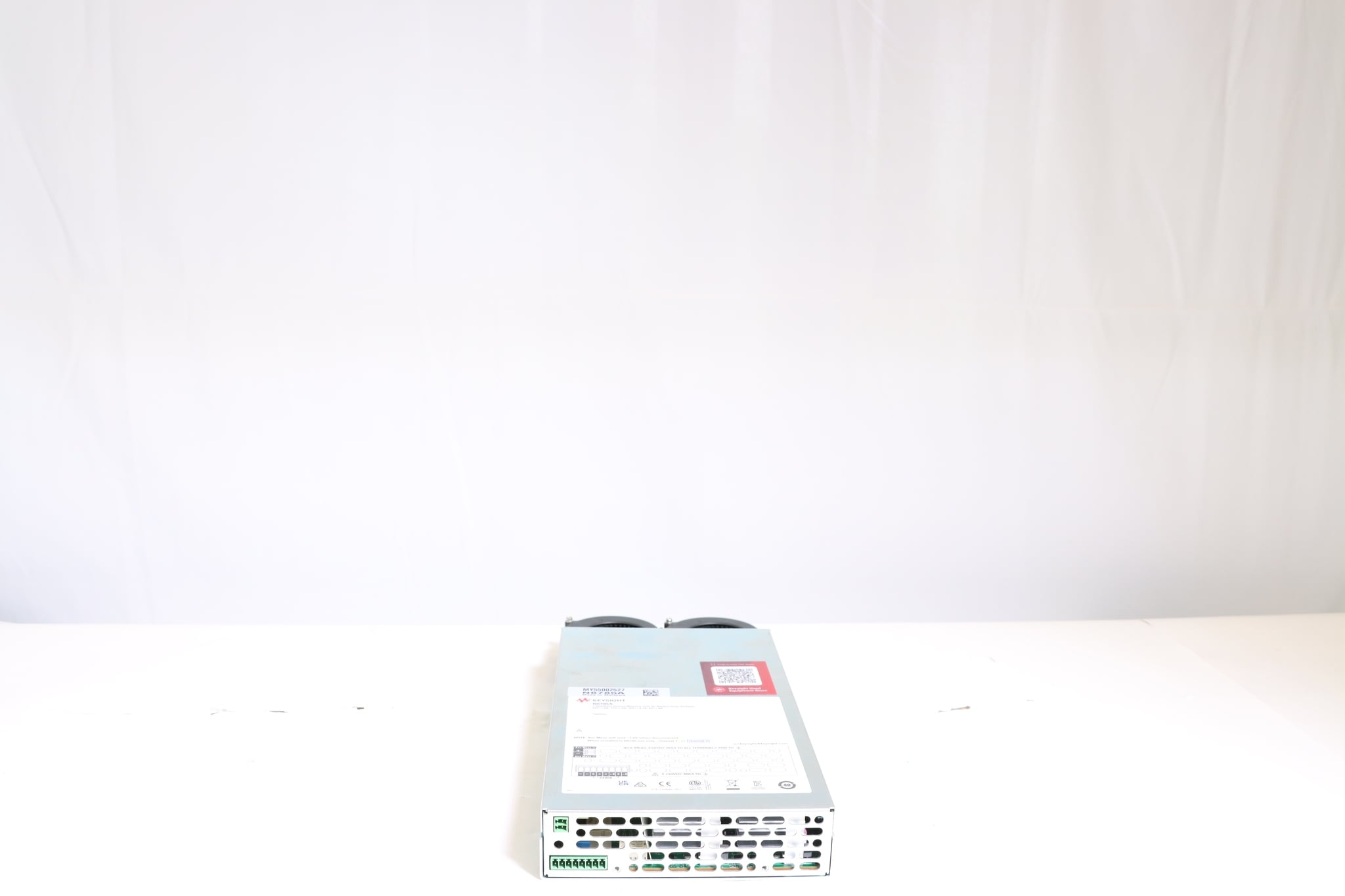

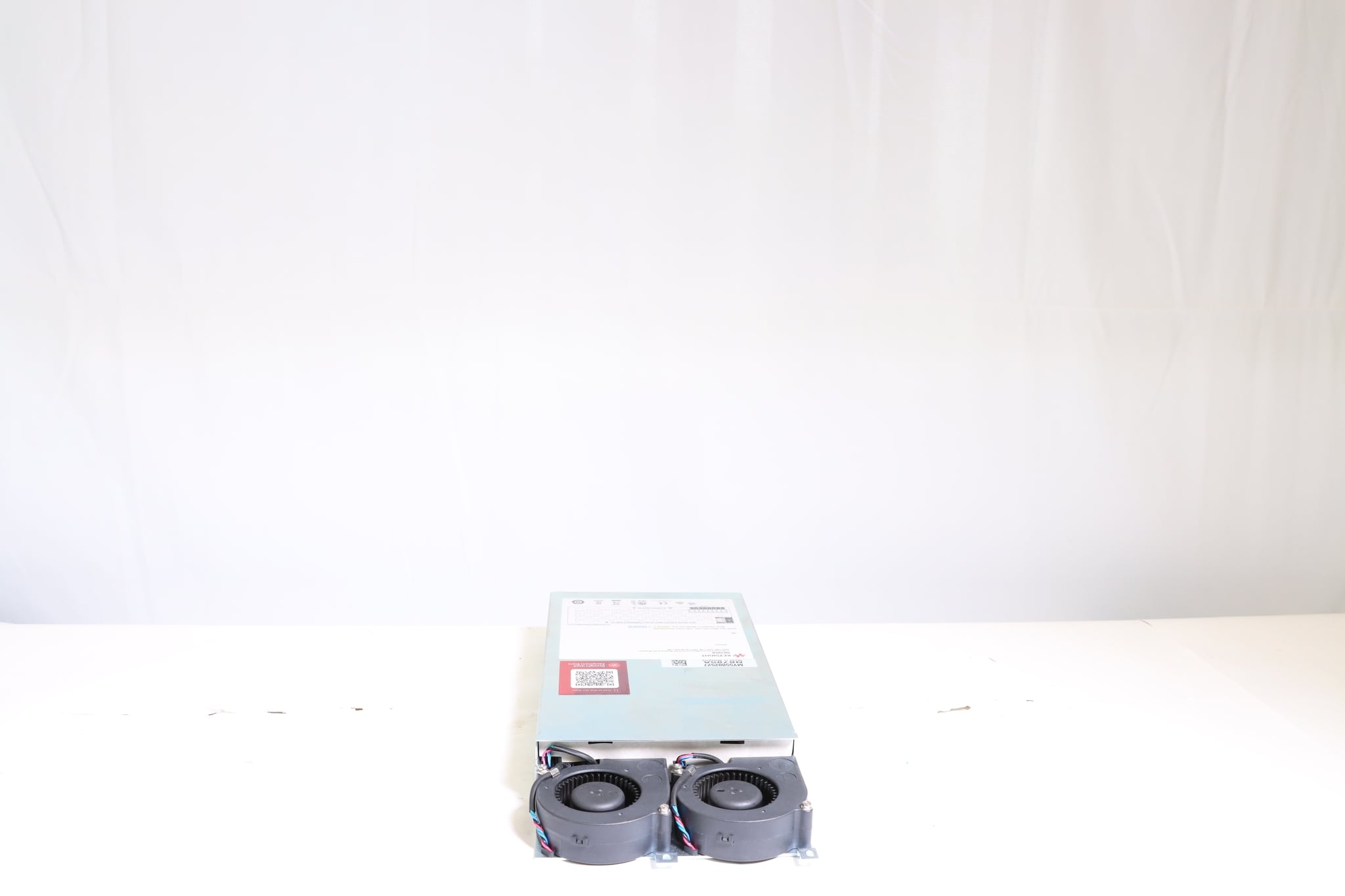

Accessories only included if shown in the pictures. No power cord included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.

For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.
