Output ratings

• Voltage: 50 V
• Current: 3 A
• Power: 100 W

Programming accuracy (at 23°C ±5°C)

• Voltage high range: 0.016% + 6 mV
• Voltage low range (≤ 5.5 V): 0.016% + 1.5 mV
• Current high range: 0.04% + 200 µA
• Current low range (≤ 100 mA, @ 0 - 7 V): 0.04% + 30 µA

Ripple & noise (20 Hz to 20 MHz)

• Voltage peak-to-peak: 4.5 mV
• Voltage rms: 350 µV
• Current rms: 2 mA

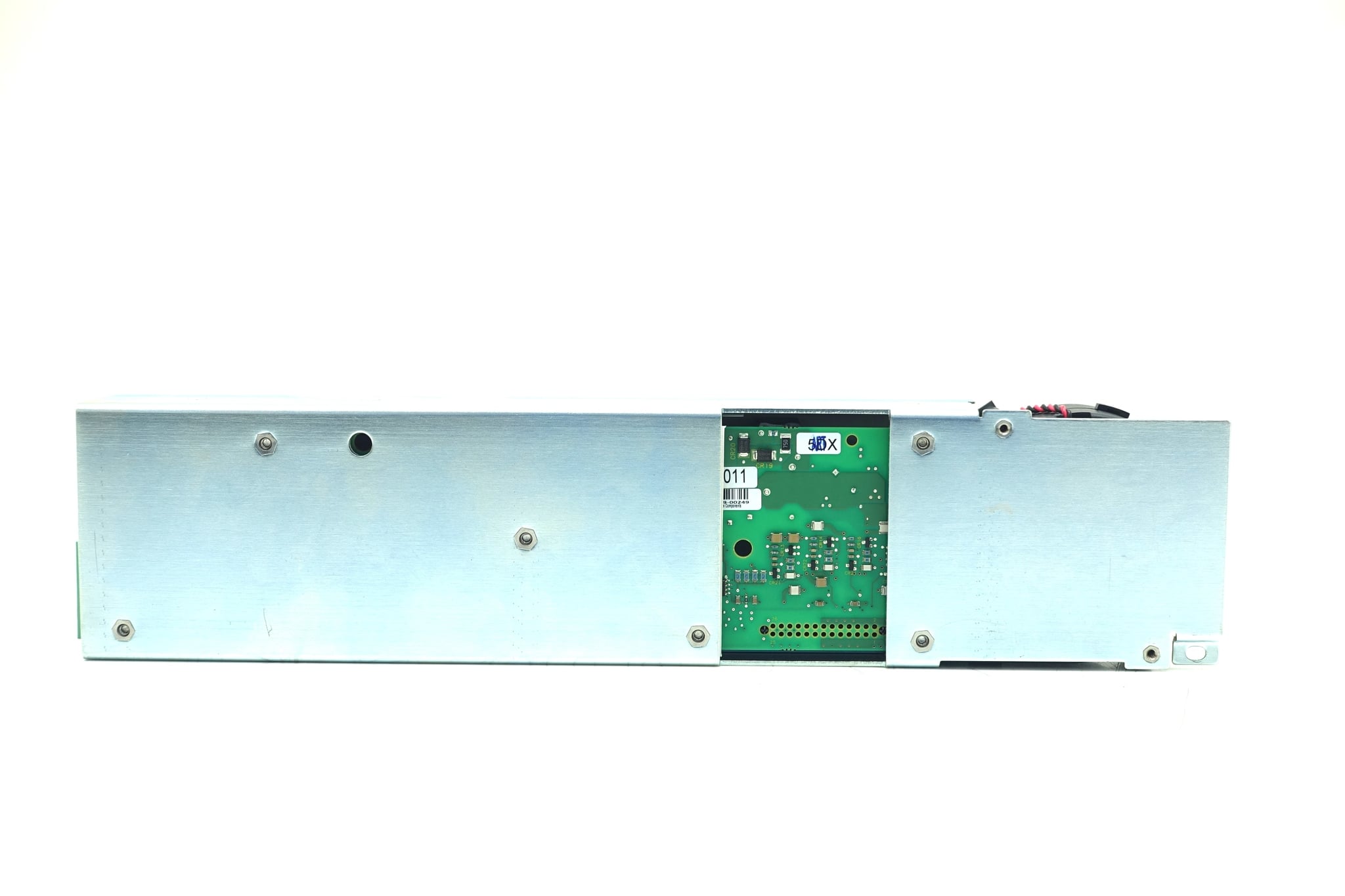

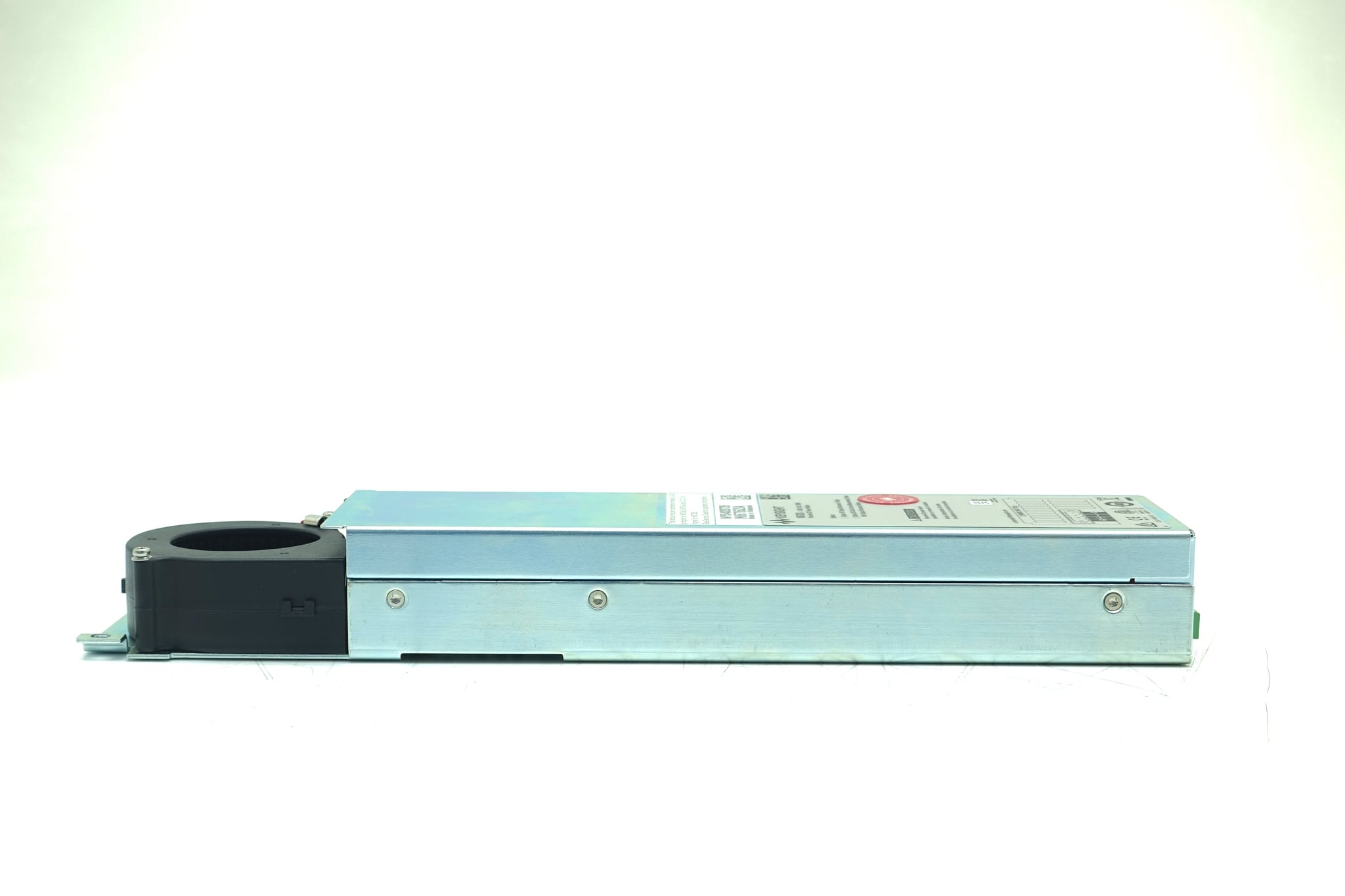

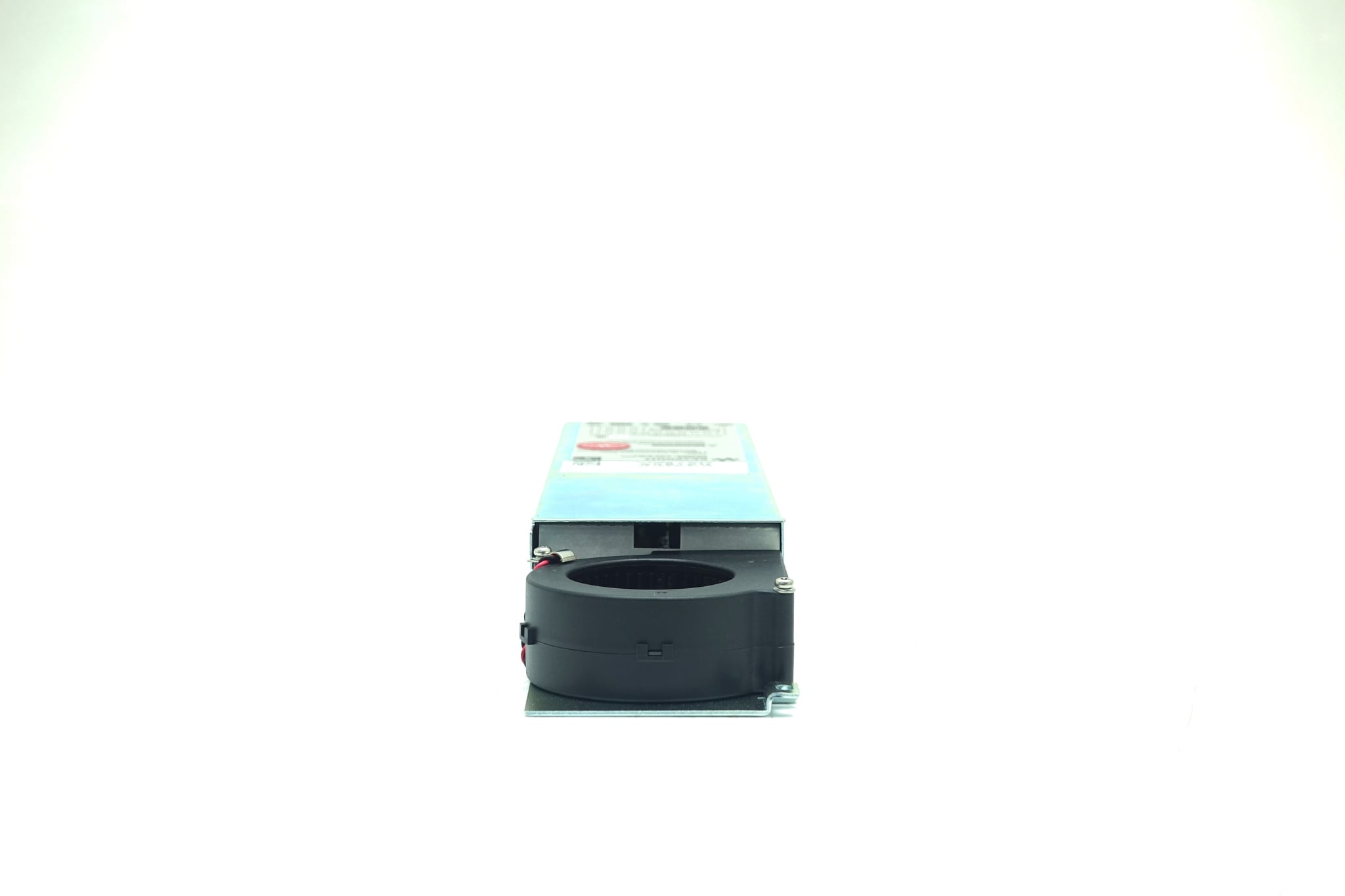

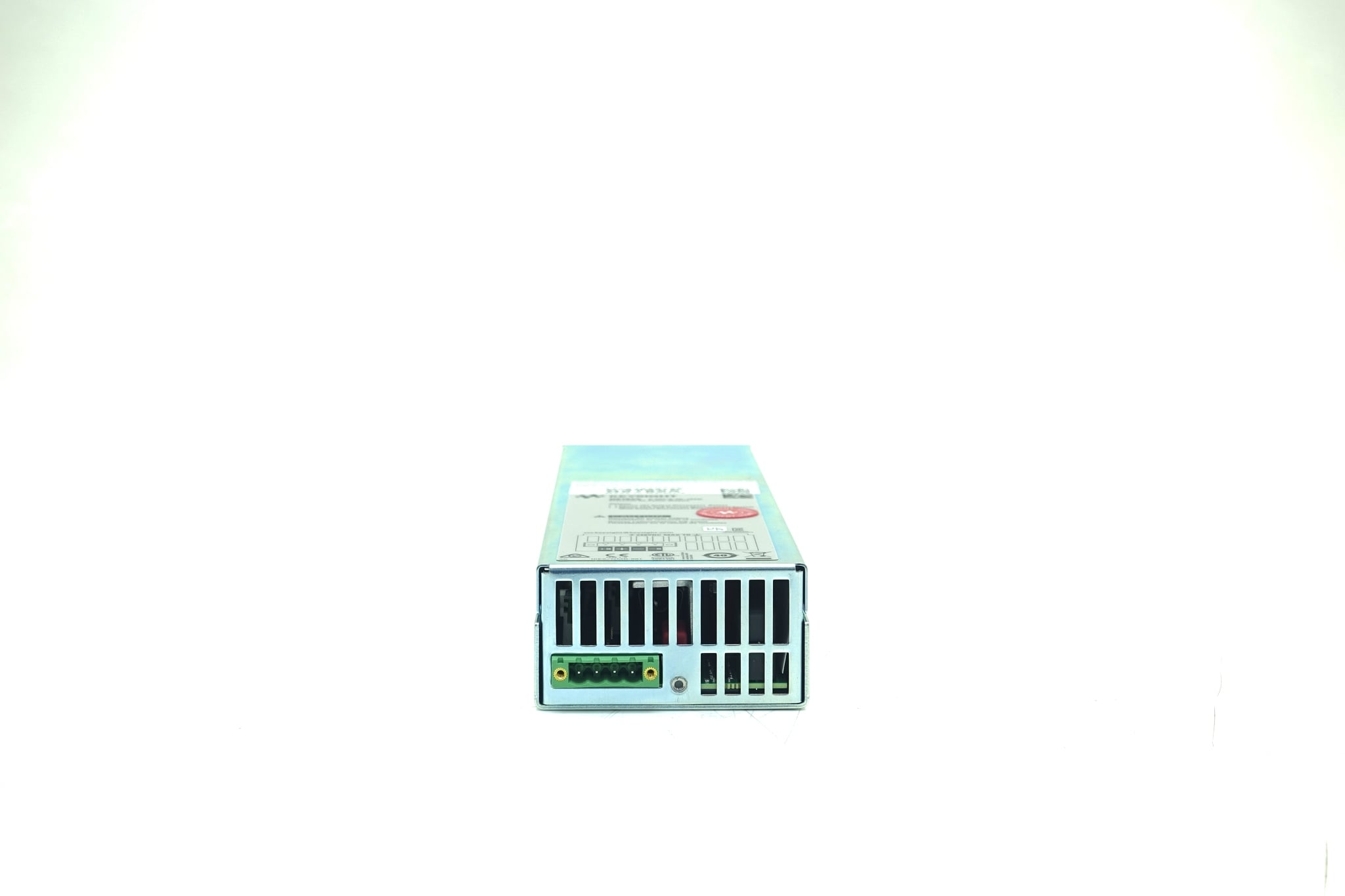

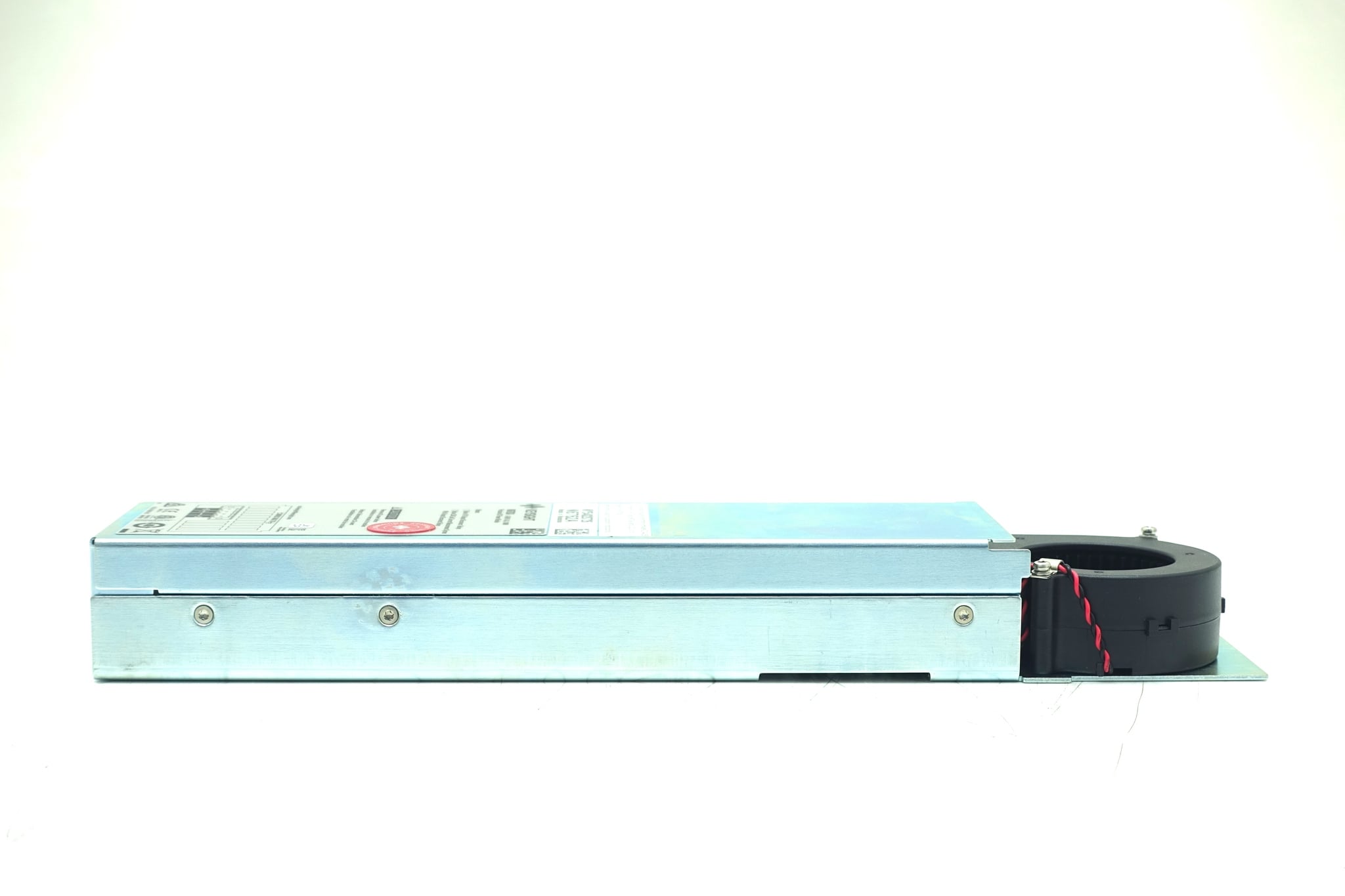

The Keysight N6762A is a 100 W precision DC power module that provides low noise, and precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer. For leakage current or sleep-mode current measurements, add option 2UA for measurement capability down to 1 μA.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

• Keysight N6762A Data sheet

• Keysight N6762A User Manual

Accessories only included if shown in the pictures. No power cord included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.

For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.
