Channels

• 2 per module
• 16 per mainframe

Channel ratings

• 6 V, ±100 A, 437.5 W

Create unique sequences

• Combine charge, discharge, pre-charge, rest state, or a DC internal resistance (DCIR) measurement steps into a test sequence.

Monitor test conditions

Monitor voltage, Current, Power, Amp*Hours, Watt*Hours, ΔV/Δt, ΔI/Δt, ΔV, ΔI during steps.

Safety and cell protection

• Probe-check assures good connections to your cells. Customize or use predefined limits to stop charge and discharging.

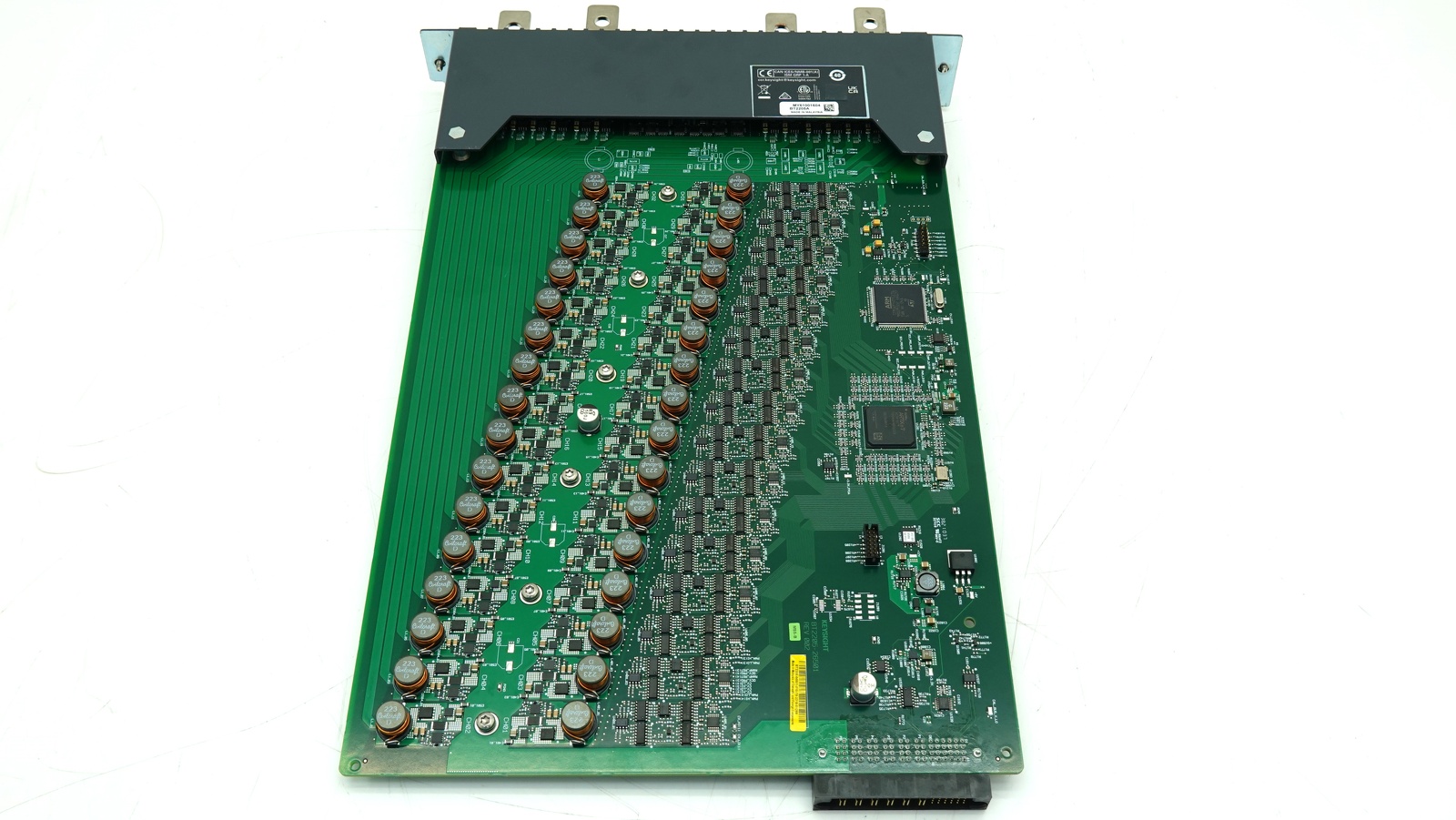

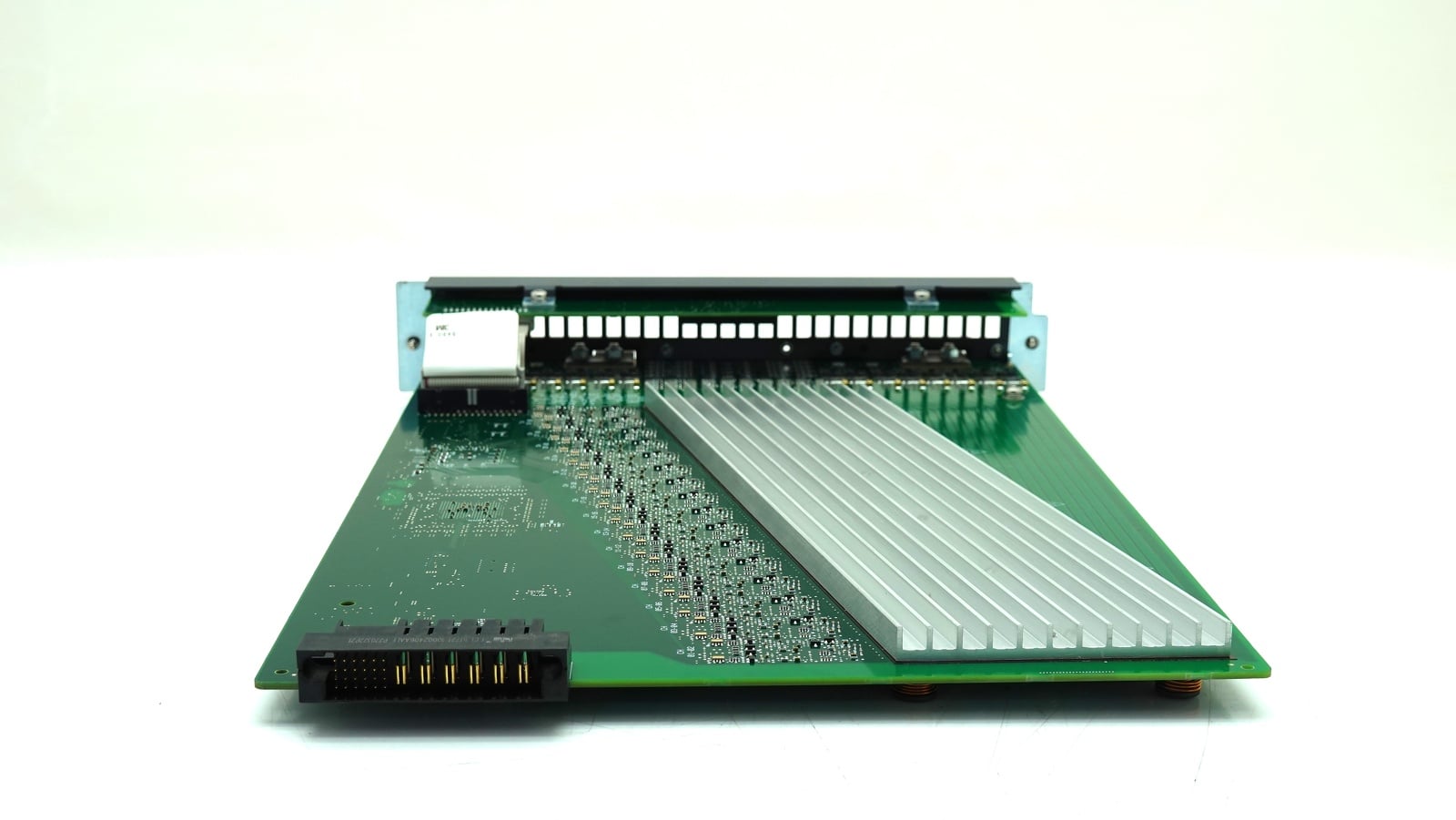

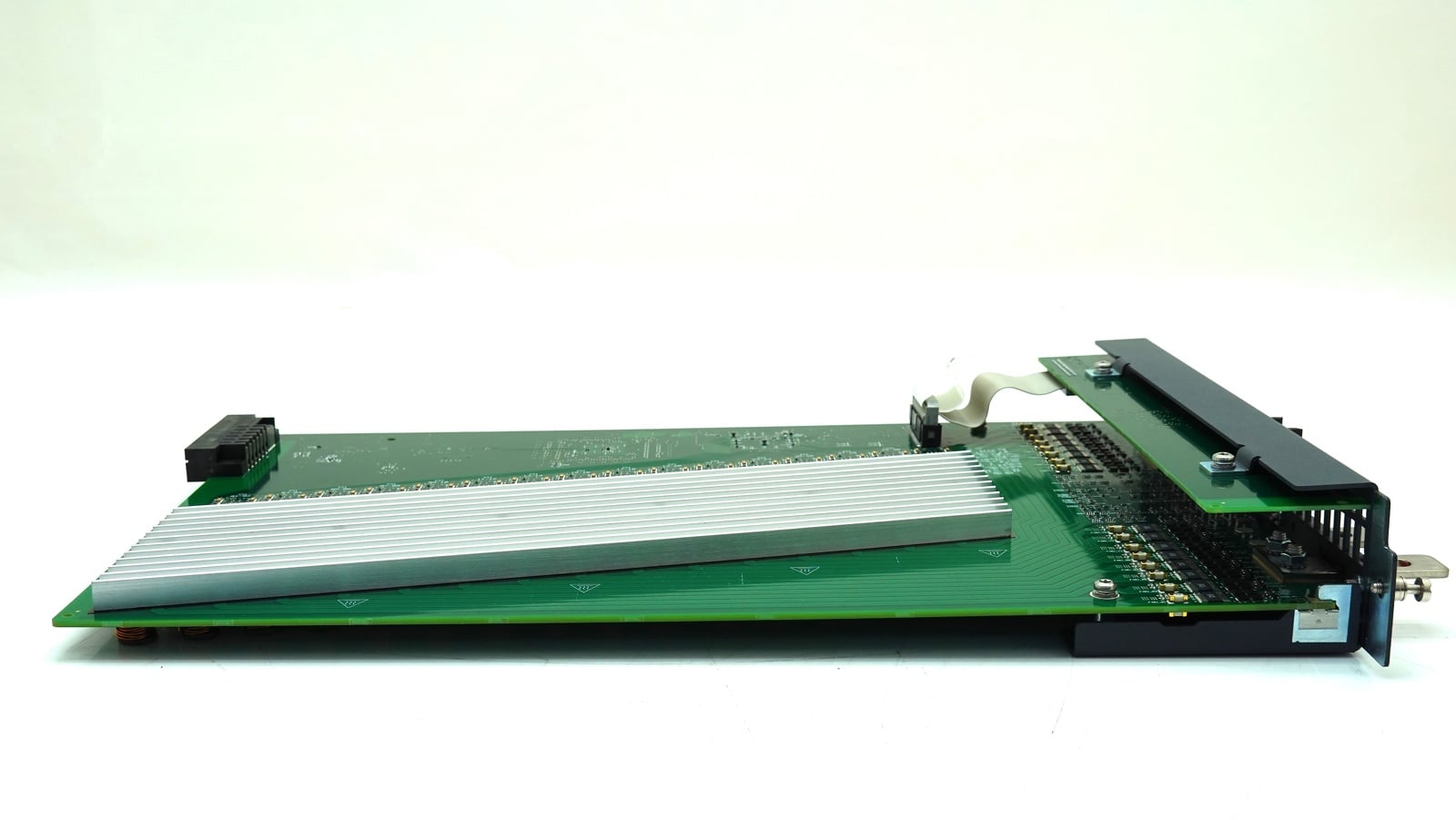

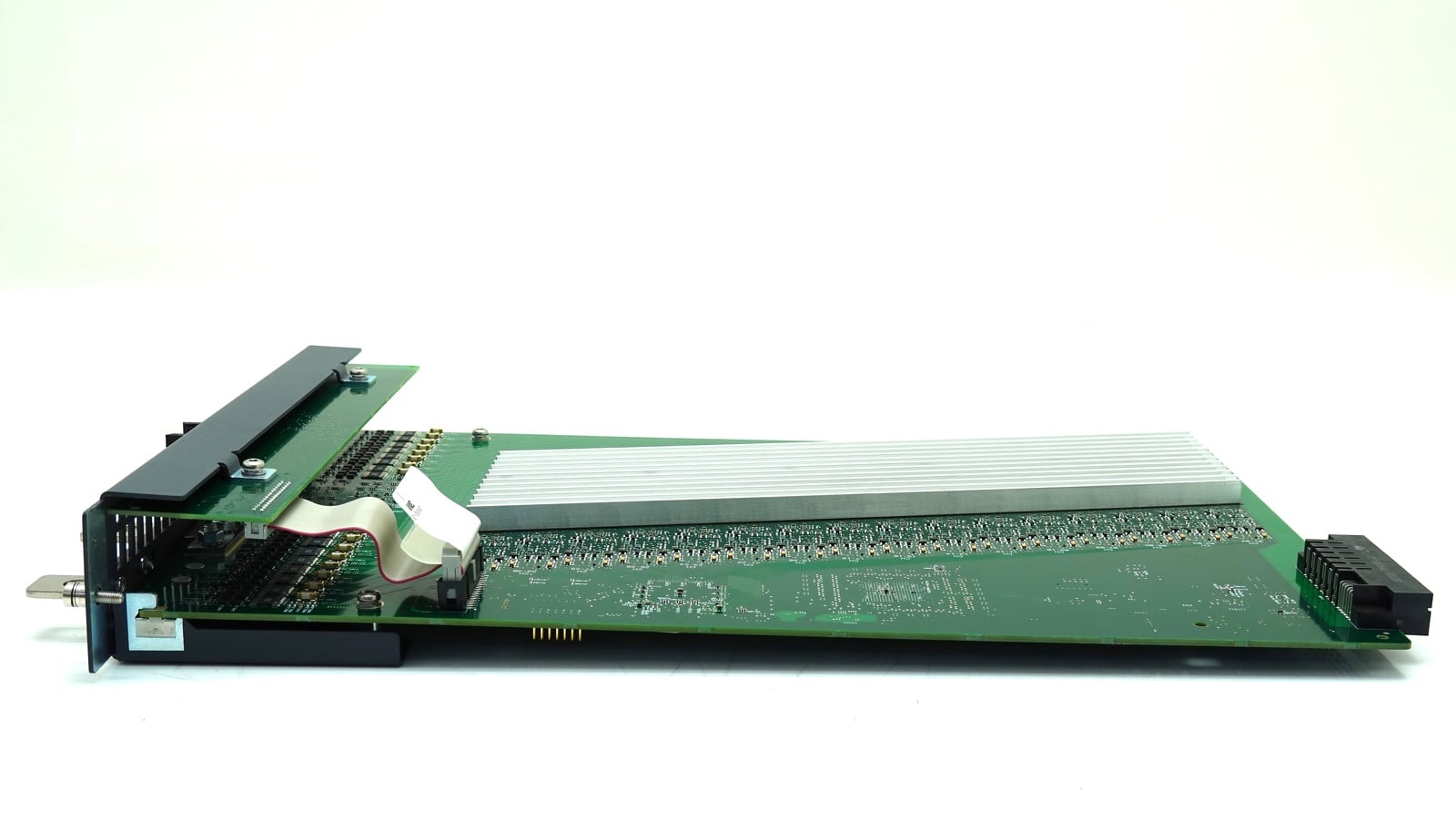

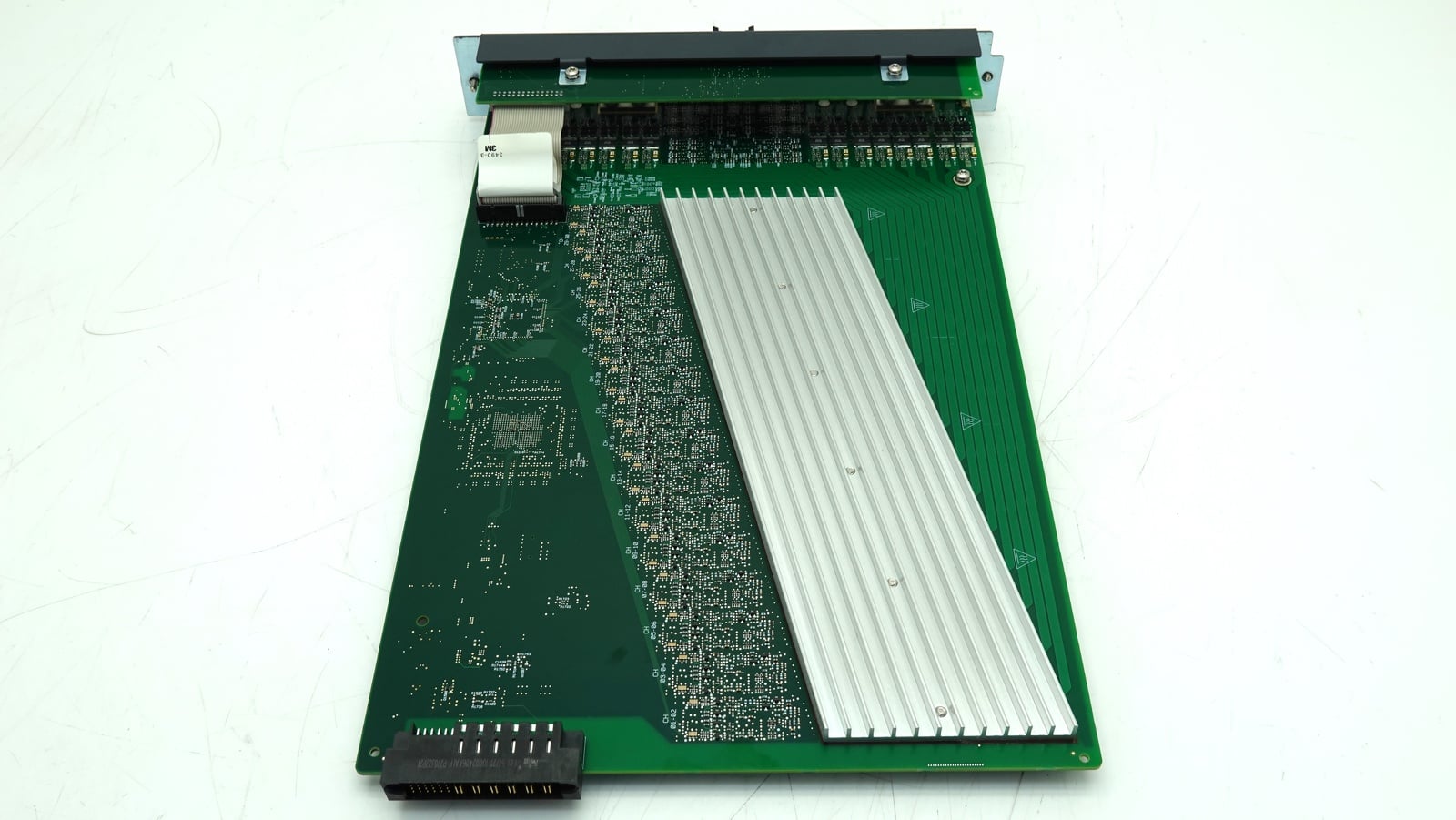

Ideal for testing higher power prismatic and pouch cells, the BT2205A charge-discharge module offers two physical channels capable of up to ± 100 A charge-discharge, and 6 V. Test higher current cells by paralleling channels. Control parallel channels as a single larger user channel. Parallel two, three, or up to 8 channels for a charge-discharge current of up to ± 800 A.

• Keysight BT2205A Configuration Guide

• Keysight BT2205A User Manual

Accessories only included if shown in the pictures. No power cord included.
