Keysight Power Sensors for Automotive, Manufacturing & PCB Design: A Buying Guide

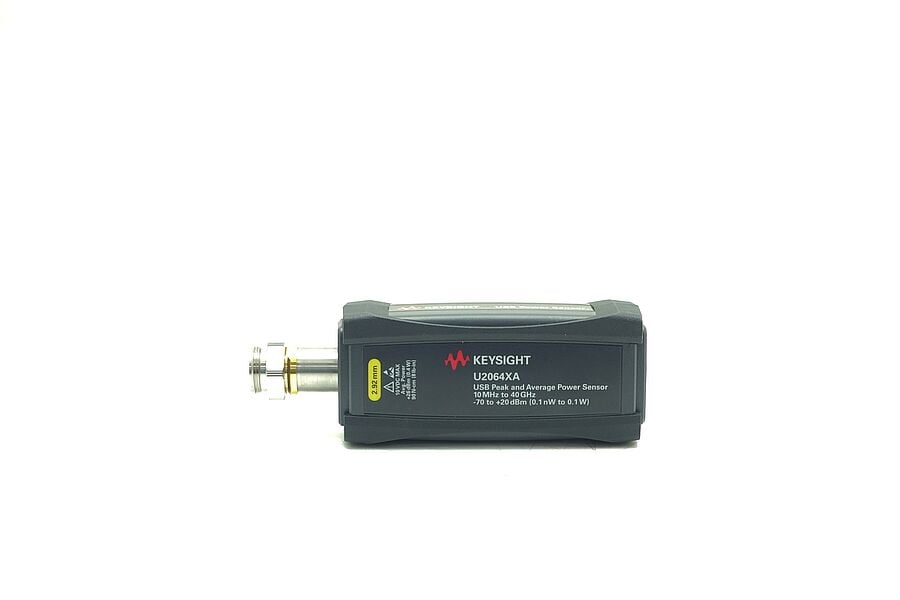

Introduction
You are validating a new RF board late in the cycle. The waveform looks clean, but the numbers do not line up with last week’s results. Peaks disappear, the band edge sits just outside coverage, and production test runs slower than planned.
Now you are rerunning measurements, checking adapters, and explaining schedule risk to a lab manager who wants answers. The wrong power sensor does not just skew data. It burns time and stalls decisions.
That pressure explains why more teams now choose used and factory-refurbished power sensors. Budgets tighten, lead times extend, and validation cycles shrink across PCB RF design, manufacturing test, and automotive radar programs. Engineers need tools that arrive quickly, measure correctly, and hold up under review.
This guide gives you a clear checklist to select reliable Used or Premium Used power sensors, with the specs, documentation, and buying details that matter in real labs.
Why Used Power Sensors Are a Smart Buy Right Now
Engineering teams feel pressure from two sides. Budgets face closer scrutiny, while procurement delays make new equipment harder to schedule around active programs. Used and Premium Used power sensors solve both problems by delivering proven measurement capability without waiting months for availability.
Unlike “as-is” reseller units, factory-refurbished power sensors go through condition checks, verified calibration, and configuration review. You receive documented calibration, defined warranty and return terms, and the correct accessories, which removes uncertainty before the unit ever reaches your bench.
Faster delivery also protects schedules. Teams can move from prototype validation to troubleshooting and into manufacturing without pausing for missing instrumentation.
The practical benefits add up quickly:
- Lower cost without giving up measurement integrity
- Faster deployment compared to new procurement cycles
- Warranty coverage and calibration confidence that support audits and correlation
- Access to higher-tier capabilities such as peak and average measurements, time-gated analysis, wideband coverage, and automation-ready workflows
Better selection upfront reduces re-test loops, correlation disputes, and line downtime later. For teams evaluating USB-based workflows or cable-free setups, the USB power sensor buying guide explains compatibility and integration considerations in more detail.
Top 5 Benefits of Buying Used or Premium Used Power Sensors
Used and Premium Used power sensors give engineers a practical way to balance performance, risk, and schedule. When chosen carefully, they deliver measurable advantages over waiting for new inventory or gambling on unverified reseller units.
- Major cost savings without sacrificing confidence
Used and Premium Used units cost significantly less than new while maintaining OEM-backed performance. Savings vary by model and condition tier, but the measurement integrity stays intact when calibration and refurbishment meet factory standards. - Faster access to the frequency coverage you need
When new inventory stays constrained, used availability often provides quicker access to the right bands, connectors, and sensor types. That speed helps teams keep RF validation and production testing on track. - Lower buying risk with clear warranty and returns
Defined warranty coverage and a right-of-return window reduce exposure for engineers and lab managers. Clear terms make internal approval easier and protect timelines if a unit does not match the application. - Calibration documentation you can defend
Proper calibration certificates support repeatability, audits, and cross-site correlation. They also simplify handoffs between R&D, validation, and manufacturing teams. For details on what to verify, see the calibration certificates guide. - Higher measurement capability on a fixed budget
Used inventory opens access to features that would exceed budget if purchased new. That includes peak and average measurement modes, time-gated analysis, wider frequency bands, and automation-ready workflows.
Quick clarification on condition tiers
- Premium Used units include factory refurbishment, current calibration, defined accessories, warranty coverage, and clear return terms.
- Used units typically include calibration and basic verification with more limited accessories or warranty.
- As-is reseller units often lack verified calibration, accessories, warranty, and meaningful return options, which shifts risk back to the buyer.
Choosing the right tier lets you control cost without compromising measurement confidence or schedule.
Key Selection Criteria for Used Power Sensors (How This Guide Ranks Them)
This guide ranks used power sensors based on the issues that most often delay validation and approvals, including limited band coverage, missed peaks, slow measurement speed, mismatch error, and unexpected accessory costs. Buying factors such as ship time, warranty, and return terms are included to favor sensors that protect schedules and pass review quickly.
The same criteria apply across PCB RF design, high-volume manufacturing test, and automotive radar validation. Engineers and lab leads can also use this framework to justify technical requirements and cost to lab managers and finance with minimal back-and-forth.
Main criteria used in this guide
- Frequency range and connector or waveguide interface to lock band coverage first
- Power range and dynamic range to avoid overload and noise-floor issues
- Measurement mode including average, peak, peak-to-average ratio, and time gating to fit the signal
- Video bandwidth and pulse or burst handling to capture envelope changes correctly
- Accuracy drivers such as linearity, SWR and mismatch impact, and temperature compensation
- Settling time and measurement speed to protect throughput and test time
- Meter and software compatibility across P-Series, EPM, EPM-P, and USB workflows with automation and drivers
- Calibration recency and traceability including certificate, standards, and uncertainty if required
- Included accessories and connector condition such as cables, adapters, power supply, and carrying case
- Warranty, returns, support path, and service turnaround for schedule protection
- Shipping speed and packaging quality to reach productivity faster
- Price to performance versus new plus resale value for total cost of ownership
Quick criteria scoring matrix
| Feature | Weight | What “Good” Looks Like | How to Verify | Red Flags |
|---|---|---|---|---|
| Frequency range | High | Covers highest band with margin | Datasheet, connector type | Upper limit barely meets need |
| Measurement mode | High | Peak or time-gated available when needed | Sensor and meter pairing | Average-only for burst signals |
| Power range | High | Headroom above max, sensitivity at min | Specs plus power budget | Risk of saturation or noise floor |
| Accuracy drivers | Medium | Low SWR, stable linearity | Datasheet, adapter quality | Poor adapters, worn connectors |
| Speed and settling | Medium | Meets throughput target | Bench timing test | Slow settling stalls line |
| Compatibility | Medium | Meter, firmware, drivers supported | Compatibility list | Missing cable or driver |
| Calibration | High | Current, traceable certificate | Certificate review | Missing or mismatched serial |
| Accessories | Medium | Correct cables and adapters included | Quote details | Hidden add-on costs |
| Warranty and returns | High | Defined terms in writing | Quote terms | DOA-only policy |
| Shipping | Medium | Predictable ship date | Order confirmation | Unknown lead time |
| TCO | Medium | Strong value and resale | Price comparison | Cheap unit, high risk |
The Top 10 Used Power Sensor Checks
Use this checklist before you request a quote or submit a PO. Each check addresses a failure point that commonly causes rework, delays, or rejected results.
1) Check Frequency Range First (Your Highest Band Sets the Floor)
The frequency range determines whether the sensor can measure your band, including mmWave use cases.
- Benefits: Prevents invalid measurements and false pass results from out-of-band operation
- How to use: Map your highest operating frequency plus margin and confirm connector or waveguide requirements
- Pro tip: Plan for next-generation bands and higher harmonics
- Caution: A tight upper limit can fail when requirements shift
Choose frequency coverage that supports current needs and near-term expansion to avoid restarting validation.
2) Choose the Right Measurement Mode (Average vs Peak, Time-Gated, Peak-to-Average)
The sensor type must match your signal behavior, whether CW, modulated, burst, or pulsed.
- Benefits: Captures true average or burst peaks instead of masking failures
- How to use: Prioritize peak and time-gated capability for bursty signals or pulsed radar
- Pro tip: List signal types by project to avoid late surprises
- Caution: Average-only sensors can hide compression and crest factor issues
Selecting the correct mode early prevents clean-looking data that misses real failures.
3) Verify Power Range and Dynamic Range (Protect the Sensor and Your Data)
Adequate headroom at high power and sensitivity at low power protect both the sensor and the measurement.
- Benefits: Prevents damage, avoids saturation, and improves repeatability near the noise floor
- How to use: Compare expected minimum and maximum levels at the sensor input, including all losses
- Pro tip: Build a simple power budget for each setup
- Caution: Overpower and overvoltage remain common causes of sensor failure
A defined power budget keeps measurements stable and equipment intact.
4) Check Video Bandwidth and Pulse or Burst Handling
Video bandwidth and sensor architecture determine how accurately fast envelope changes appear in results.
- Benefits: Improves burst, slot, and pulse characterization
- How to use: Match bandwidth and gating needs to modulation and timing structure
- Pro tip: Treat gating as critical when troubleshooting intermittent events
- Caution: Incorrect bandwidth can smooth peaks and under-report events
Correct bandwidth selection ensures transient behavior shows up when it matters.
5) Confirm Accuracy Drivers (Linearity, SWR, Temperature Effects)
Accuracy depends on more than a single headline specification.
- Benefits: Improves correlation between R&D and production results
- How to use: Review linearity, SWR, and temperature-related specs across the full connector chain
- System accuracy improves only when every component in the signal path performs as expected.
- Pro tip: Use high-quality adapters and proper torque practices
Caution: Poor adapters often introduce more error than the sensor itself
6) Evaluate Settling Time and Measurement Speed (Manufacturing Throughput)
Settling behavior and speed directly affect cycle time and readings per second.
- Benefits: Increases throughput and stabilizes SPC metrics
- How to use: Define dwell times, averaging strategy, and throughput targets
- Pro tip: Benchmark end-to-end timing with your actual automation script
- Caution: Accurate but slow sensors can bottleneck a line
Measurement speed directly influences test capacity and delivery timelines.
7) Validate Meter, Cable, and Software Compatibility
Sensors often depend on specific meters, cables, firmware, or drivers.
- Benefits: Avoids duplicate purchases and integration delays
- How to use: Confirm meter family, firmware version, supported modes, and automation interfaces
- Pro tip: Standardize one meter family per lab
- Caution: Missing cables or unsupported firmware can stall a project
Compatibility checks upfront prevent weeks of avoidable integration work.
8) Confirm Calibration Status and Documentation
Calibration and traceability establish trust in measurements.
- Benefits: Supports audits, compliance, and cross-team correlation
- How to use: Verify certificate date, serial match, standards, and uncertainty if required
- Pro tip: Align calibration timing with project start
- Caution: Missing or mismatched paperwork signals procurement risk
Clear documentation turns measurement results into defensible data.
9) Inspect Physical Condition
Connector wear and physical damage directly affect repeatability.
- Benefits: Reduces intermittent failures and unstable readings
- How to use: Inspect connectors, labels, and included protection or attenuation
- Pro tip: Add torque tools and connector care to lab standards
- Caution: Precision connectors are costly and easy to damage
Physical integrity plays a direct role in measurement consistency.
10) Verify Warranty, Returns, Accessories, and Shipping Window
Used value depends on more than the purchase price.
- Benefits: Protects schedule and total cost of ownership
- How to use: Confirm warranty length, return window, included accessories, and ship estimate
- Pro tip: Prioritize tiers with full calibration and strong warranty terms for critical programs
- Caution: DOA-only return policies create avoidable timeline risk
Clear terms convert used purchases into predictable, low-risk assets.
Comparison Table At-a-Glance
This table helps you quickly narrow choices to the most suitable sensor options. Prioritize frequency range first, then confirm measurement mode, power range, and dynamic range. Measurement speed and compatibility often determine whether a sensor fits production or automated test workflows.
Avoid selecting a sensor based on frequency coverage alone. Limits in peak capture, power handling, or integration often surface later and lead to retesting.
| Application | Signal type | Priority specs | Recommended sensor category | What to verify in quote |
|---|---|---|---|---|
| PCB RF design | CW, modulated | Accuracy, dynamic range | Average power sensor or USB workflow (example: Keysight E9300H) | Correct cables and adapters, meter compatibility, driver support |
| Optical test | CW optical | Low uncertainty, wavelength range | Dual optical power sensor (example: Keysight 81635A) | Connector adapters, mainframe compatibility, calibration status |
| Manufacturing and automotive RF | Burst, pulsed, modulated | Peak capability, speed, wideband | Wide dynamic range average and peak sensor (example: Keysight L2066XA) | LAN or USB interface, software support, warranty and ship time |
How to Incorporate This into Your Buying Process
A structured process shortens selection time and makes approvals easier. Use the steps below to move from requirement to PO without backtracking.
- List project needs, starting with the highest frequency band, signal type, expected power levels, and connector constraints.
- Choose the measurement mode based on the signal. Decide early between average-only or peak and time-gated capability.
- Set minimum power range and dynamic range targets, including a protection plan with attenuators or couplers if needed.
- Define speed requirements such as settling time, readings per second, and automation loop time for your test environment.
- Filter available used inventory by compatibility with your meter family, cables or adapters, and required software and drivers.
- Request the calibration certificate, warranty and return terms, and a clear list of included accessories in every quote.
- Compare two or three shortlisted options using the scoring matrix and review the trade-offs with your lab manager.
Aim to complete selection within one week. That pace protects validation and production schedules while giving procurement enough detail to approve quickly.
For consistency across teams, save a simple “minimum spec template” for each use case, such as PCB RF design, manufacturing test, or automotive radar. Reusing that template reduces debate, speeds future purchases, and keeps measurements aligned across projects.
Common Mistakes to Avoid
Even experienced teams run into problems when time pressure and limited availability drive rushed decisions. Most issues trace back to a small set of avoidable mistakes that surface late, after equipment arrives or testing begins.
Frequent errors to watch for:
- Buying the wrong measurement mode, such as choosing an average-only sensor when peak or time-gated capability is required.
- Selecting a sensor that does not fully cover the required frequency band, leaving no margin for harmonics or future updates.
- Ignoring maximum power handling and damaging the sensor during early bring-up or troubleshooting.
- Overlooking meter, cable, adapter, and firmware compatibility, which creates integration delays.
- Accepting missing or unclear calibration documentation, which undermines trust in the data.
- Chasing the lowest price while giving up warranty coverage or meaningful return terms.
- Skipping acceptance testing and discovering issues only after results are questioned.
These mistakes often lead to re-tests, schedule slips, and difficult conversations with lab managers and quality teams.
How to Correct Course
Apply the scoring matrix before requesting quotes to filter out poor fits early. Require calibration certificates, warranty terms, return conditions, and included accessories in writing with every quote.
When the sensor arrives, run acceptance tests immediately using known reference levels and repeatability checks. That discipline keeps used purchases predictable and prevents small oversights from becoming program delays.
Measuring Buying Success
Buying the right used power sensor shows up quickly in both technical results and schedule performance. Track outcomes using the steps below to confirm the purchase delivers value beyond the initial cost savings.
- Run acceptance tests on arrival using known reference levels and repeatability checks to confirm basic performance.
- Validate measurement stability over time by checking warm-up behavior and short-term drift.
- Track production impact, including cycle time, retest rate, and any changes in line downtime.
- Monitor debug-cycle time to see whether root causes resolve faster and correlation issues decrease.
- Calculate return on investment compared to buying new equipment, factoring in avoided delays and schedule savings.
- Track resale value after twenty-four months and review overall asset utilization across teams.
Success indicators include fewer re-tests, faster correlation between labs and production, on-time project delivery, higher internal confidence in results, and stable manufacturing throughput. When these metrics improve, the buying process works as intended.
Advanced Tips
These practices help experienced teams protect their investment and keep measurements consistent as programs scale.
- Bundle the sensor with the correct meter, cables, and a protection chain such as attenuators and couplers to prevent accidental damage during setup and troubleshooting.
- Standardize lab setups across teams so scripts, fixtures, and expectations stay aligned and correlation improves between sites.
- Document connector care and torque procedures for precision connectors to reduce wear and intermittent errors over time.
- Keep firmware and drivers current, and maintain a simple record of sensor IDs and calibration certificates to support asset management and audits.
- Build a “golden setup” that serves as a known-good reference for quick health checks after shipping, maintenance, or production line events.
For additional guidance on protecting equipment during daily use, review Seven Practices to Prevent Damaging Power Meters and Power Sensors, which outlines common failure modes and practical prevention steps. These habits reduce downtime, extend sensor life, and keep measurement confidence high across projects.
Conclusion
Choosing the right used power sensor depends on a small set of factors that directly affect measurement accuracy and schedule risk. Frequency coverage, measurement mode, power and dynamic range, accuracy drivers, speed, and compatibility determine whether results are reliable and repeatable. Clear calibration documentation, warranty, and return terms make the purchase defensible and predictable.
As RF designs move to higher frequencies and automation becomes standard, careful sensor selection plays a larger role in maintaining correlation, throughput, and on-time delivery.
At the Keysight Used Equipment Store, you can access Premium Used power sensors, along with oscilloscopes, network analyzers, and VNAs. Each instrument delivers like-new performance with OEM calibration, extended warranties, and expert technical support. Explore refurbished power sensors from Keysight and bring accuracy, reliability, and confidence to your next project.
Whenever You’re Ready, Here Are 5 Ways We Can Support Your Capacitor Projects
Call tech support US: +1 800 829-4444
Press #, then 2. Hours: 7am – 5pm MT, Mon– Fri
Contact our sales support team
Create an account to get price alerts and access to exclusive waitlists
Talk to your account manager about your specific needs.
FAQs
What is a Keysight power sensor used for?
A Keysight power sensor measures RF and microwave power accurately across a wide range of signals. Engineers use it to validate automotive radar performance, monitor output in manufacturing quality control, and verify power levels during PCB RF design and verification, including early PCB layout reviews where signal integrity issues first appear.
How do I choose the right Keysight power sensor for PCB manufacturing?
Start with the frequency band your boards operate in, then confirm expected power range and required dynamic range. Choose the measurement mode that fits your signals, average for steady-state or peak and time-gated for burst behavior. Speed requirements, connector compatibility, and integration with existing meters matter across both PCB prototyping and the PCB manufacturing process, where throughput and repeatability drive decisions.
What are the differences between peak and average power sensors?
Average sensors report mean power over time and work well for CW and steady modulated signals. Peak sensors capture fast changes, bursts, and pulses using peak, time-gated, and peak-to-average measurements. Bursty and pulsed systems often require peak capability to catch issues that standard layout design reviews may not reveal.
Why is frequency range critical for automotive power sensors?
The sensor must fully cover the target band, such as automotive radar frequencies, with margin. Connector or waveguide requirements must also match the test setup. Incomplete coverage can invalidate results during validation and later PCB fabrication, where rework becomes costly.
What does traceable calibration mean for used power sensors?
Traceable calibration means the sensor includes a certificate that matches the serial number and references recognized standards. This documentation reduces audit risk, supports repeatability, and improves correlation across labs and production sites.
How does settling time affect power sensor performance in production?
Settling time and measurement speed determine how quickly stable readings appear. Faster settling supports higher throughput, shorter test cycles, and more stable SPC results in high-volume manufacturing.
Are Keysight used power sensors compatible with P-Series meters?
Compatibility depends on the specific sensor and meter combination. Capabilities can vary by model, firmware, and cable type. Always verify meter support, firmware requirements, and included cables in the quote.
What warranty comes with Keysight refurbished power sensors?
Warranty terms vary by used condition tier and region. Buyers should confirm warranty length, return window, and service turnaround in writing before purchase to protect schedules and reduce risk.
