• 4-slot mainframe holds up to 600 W of total power and up to 4 modules. More than 30 DC power modules to choose from (modules ordered separately)
• Ammeter accuracy: Up to 0.025% + 8 nA; up to 18 bits
• Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W
• Data logger function: Measurement interval from 20 µs to 60 seconds, with a maximum of 500 M readings per second
• Scope function: Digitizes voltage and current up to 200 kHz, 512 kpts; up to 18 bits
• Voltmeter accuracy: Up to 0.025% + 50 µV; up to 18 bits

Save Test Time

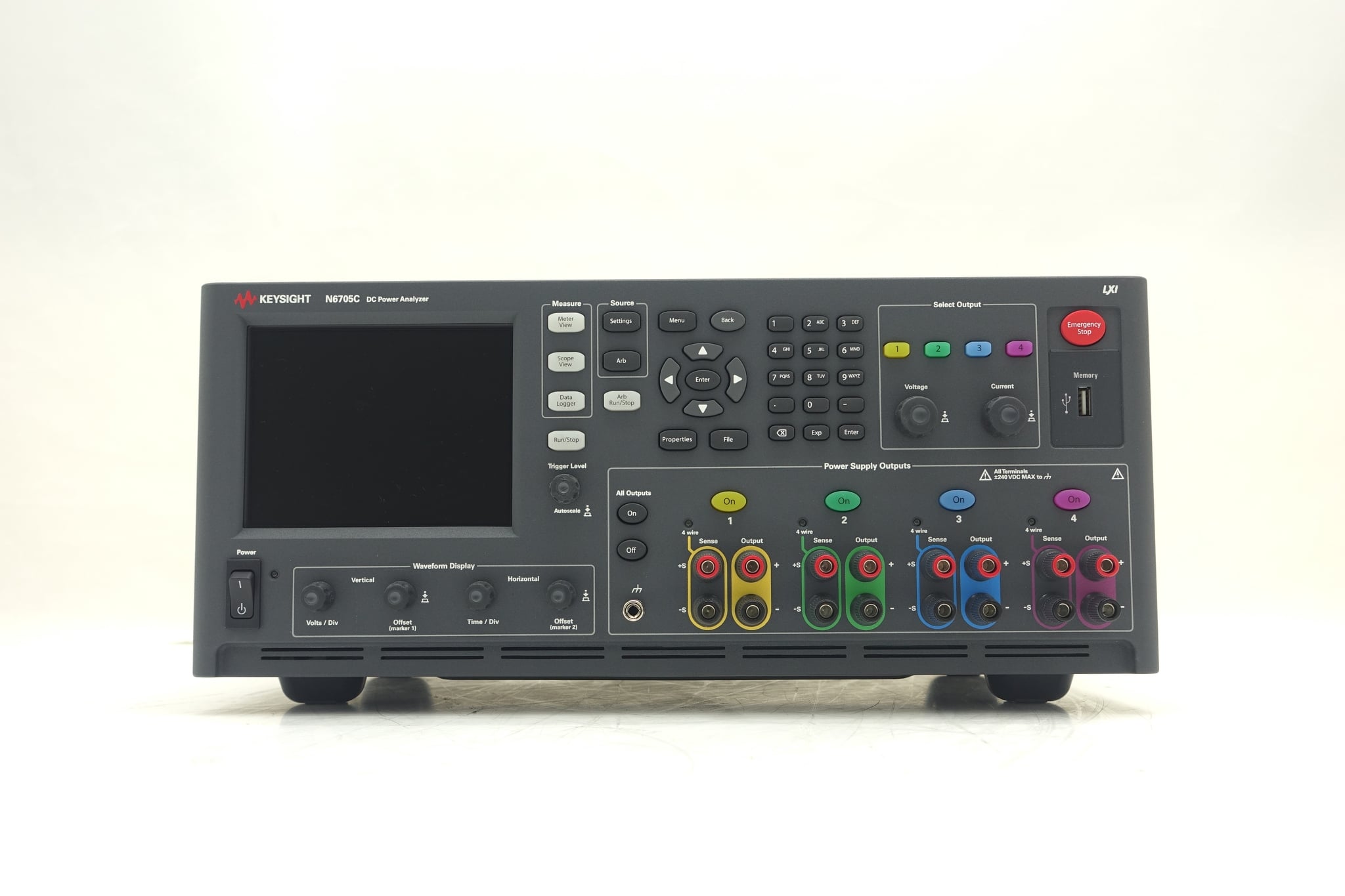

The Keysight N6705C DC power analyzer gives you productivity gains for sourcing and measuring DC voltage and current into the device under test (DUT). The N6705C DC power analyzer has the capabilities of up to four advanced power supplies — a digital multimeter (DMM), scope, arb, and data logger.

The N6705C DC power analyzer eliminates the need to develop and debug programs to control a collection of instruments — all functions and measurements are located on the front panel. Get even greater control and analysis functions by incorporating Keysight PathWave BenchVue BV9200 control and analysis software.

The BV9200 PathWave BenchVue control and analysis software has an updated user interface, new advanced data analysis features, and automation capability. When automated bench setups are necessary, the N6705C is fully programmable over GPIB, USB, LAN, and is LXI compliant.

The N6705C DC power analyzer offers custom configurations to meet your power sourcing and analysis requirements. It has a four-slot mainframe that accepts up to four DC power modules and up to 600 W total DC output power (order modules separately).

Features:

• Easy to use R&D tool for sourcing and measuring DC voltage and current into the DUT
• Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb and Data Logger
• Access all capabilities without programming; either use the front panel controls or the 14585A Control and Analysis Software

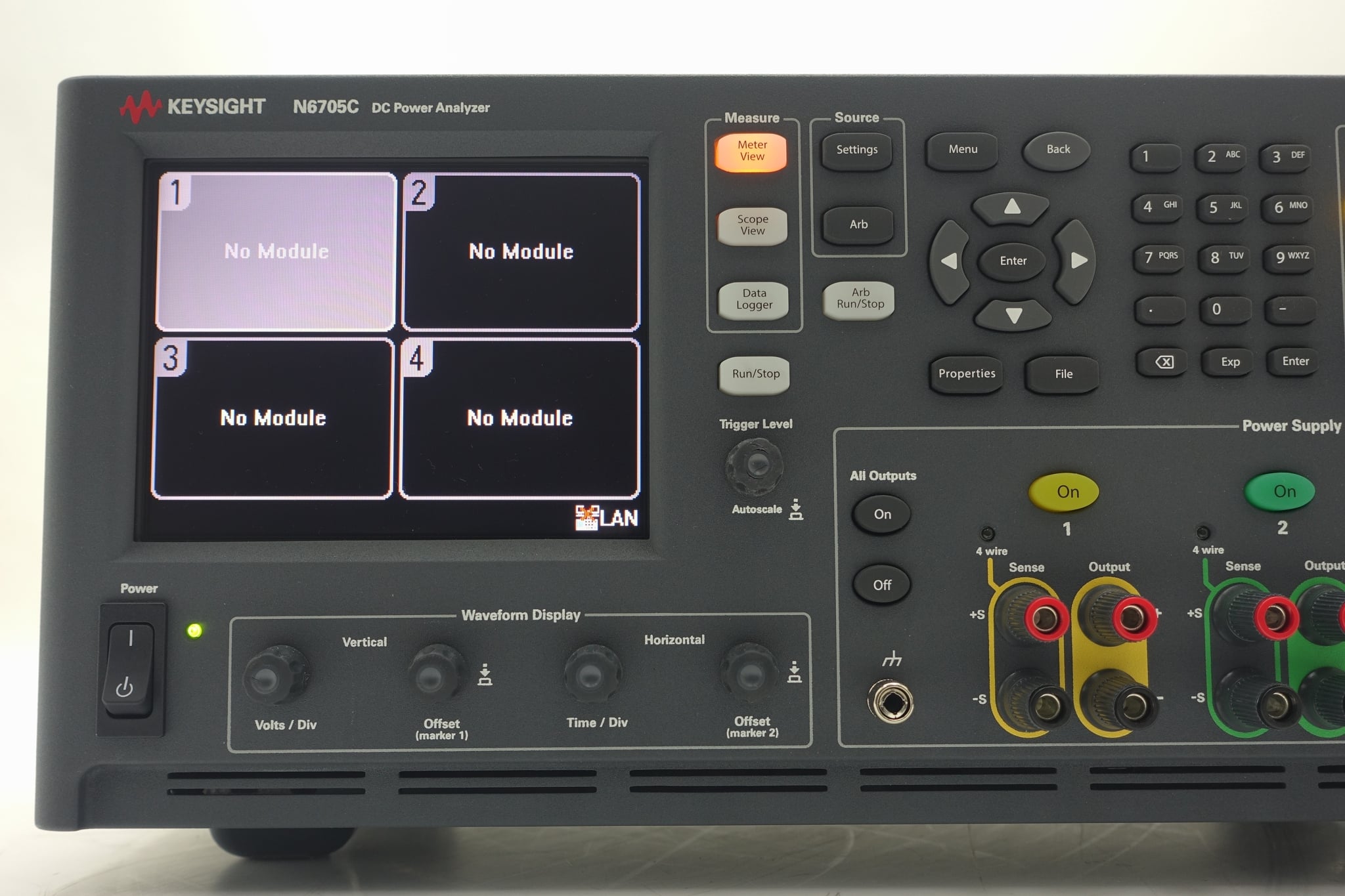

• Intuitive, dedicated physical controls for common functions

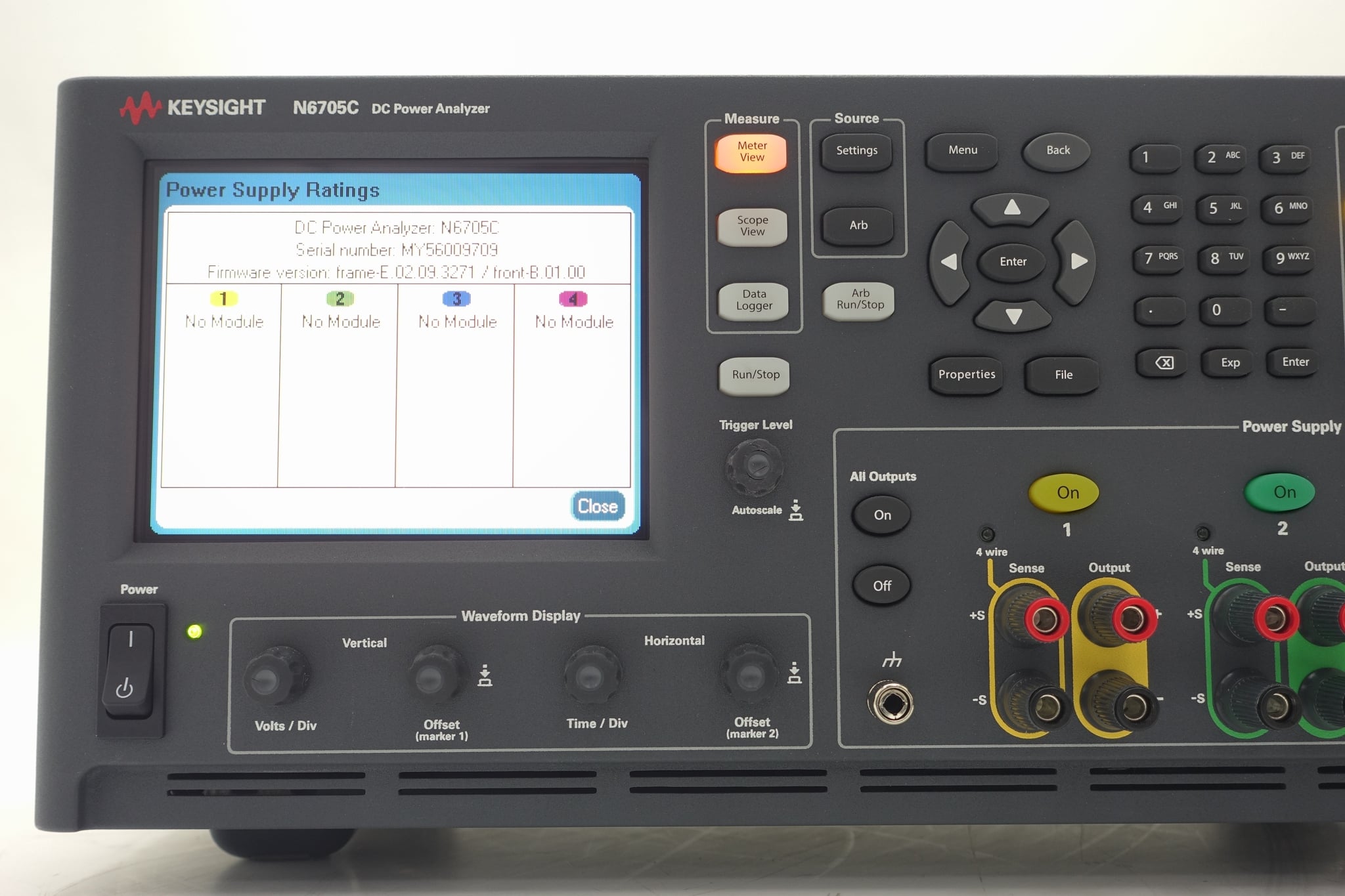

• Large color graphics display for easy viewing of complex data
• Connections and controls color-coded to the display for fast and error-free setup
• Programmable via standard GPIB, LAN and USB; LXI Compliant

• Keysight N6705C Data sheet

• Keysight N6705C User Manual

Accessories only included if shown in the pictures. No power cord included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.

For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.
