Boundary Scan Test Modules for DDR4 DIMM Connector

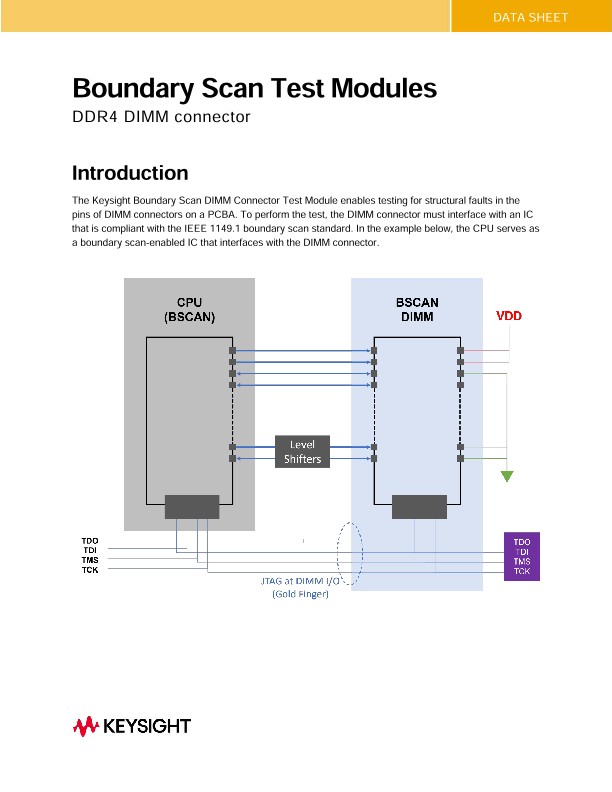

Keysight Boundary Scan DIMM connector test module enables testing the pins of the detecting structural faults on the DIMM connectors of a PCBA. The DIMM connector needs to interface with a boundary scan IEEE 1149.1 compliant IC. In the example below, the CPU is a boundary scan enabled by the IC interfacing with the DIMM connector.

Boundary scan DIMM test cards for DDR4

  • Test DDR4 memory interface signals to CPU or memory management unit using 1149.1 tests
  • Test power and GND pins for the DDR4 connector

High coverage

  • Covers power and ground pins connectivity
  • Critical coverage for all ground pins for high-speed signal return for signal integrity
  • Failure report pinpoints the failing pin

These DIMM test cards are available in three standard sizes for DDR4 DIMM:

  • SODIMM
  • Full-Size DIMM
  • Mini-DIMM

Moreover, these are available in manual and auto-insert versions for DIMM and SODIMM.

×
