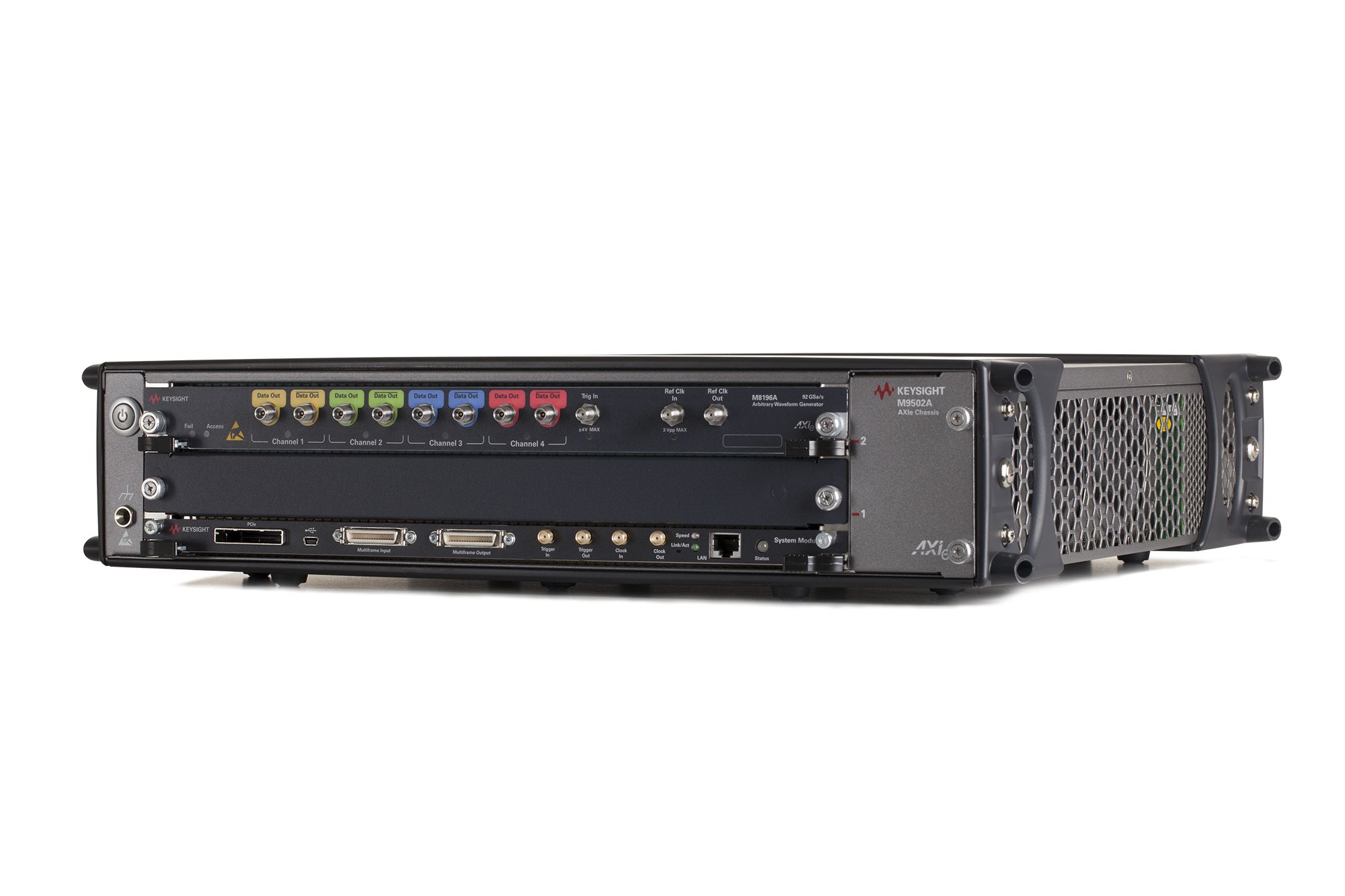

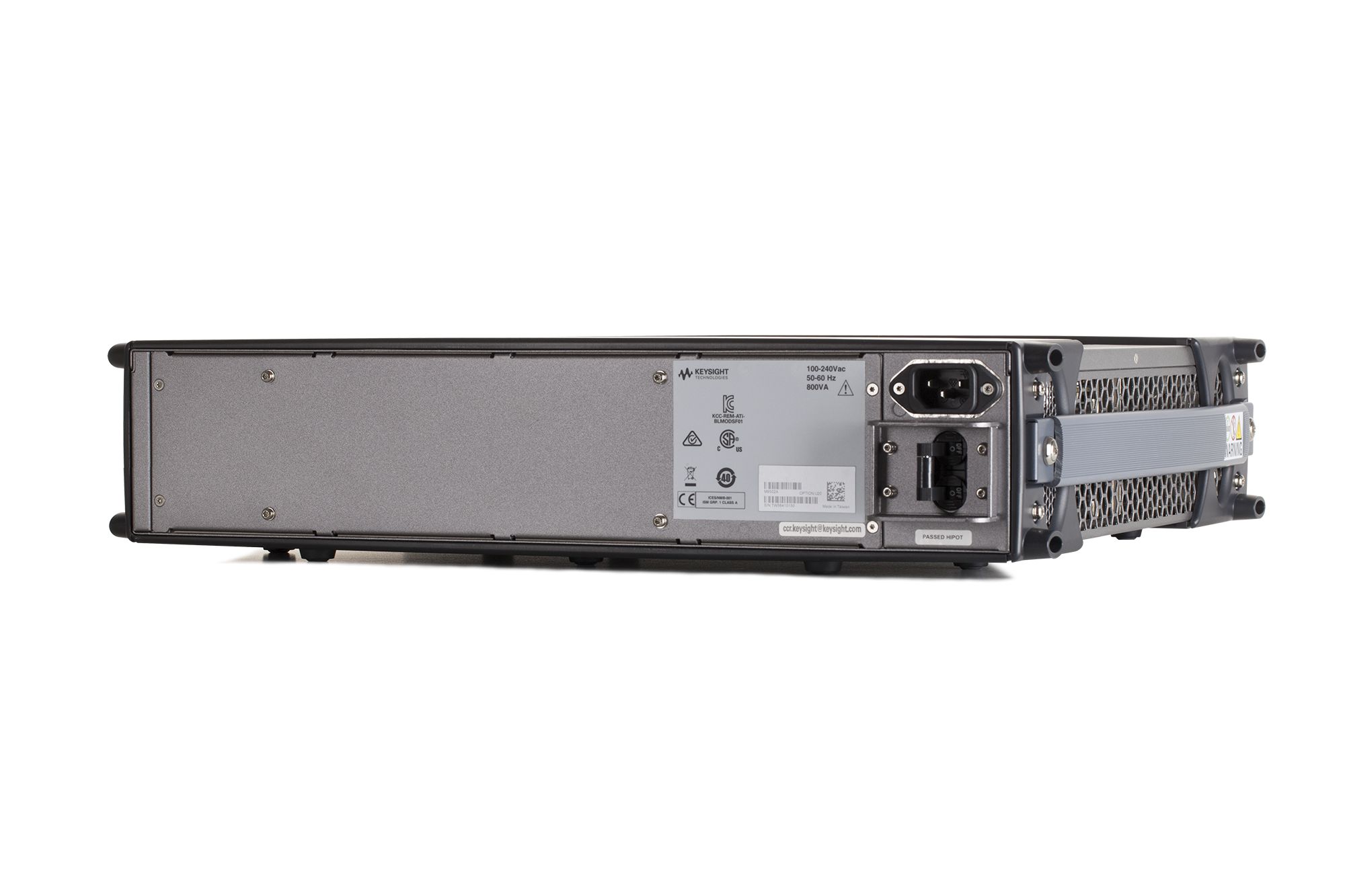

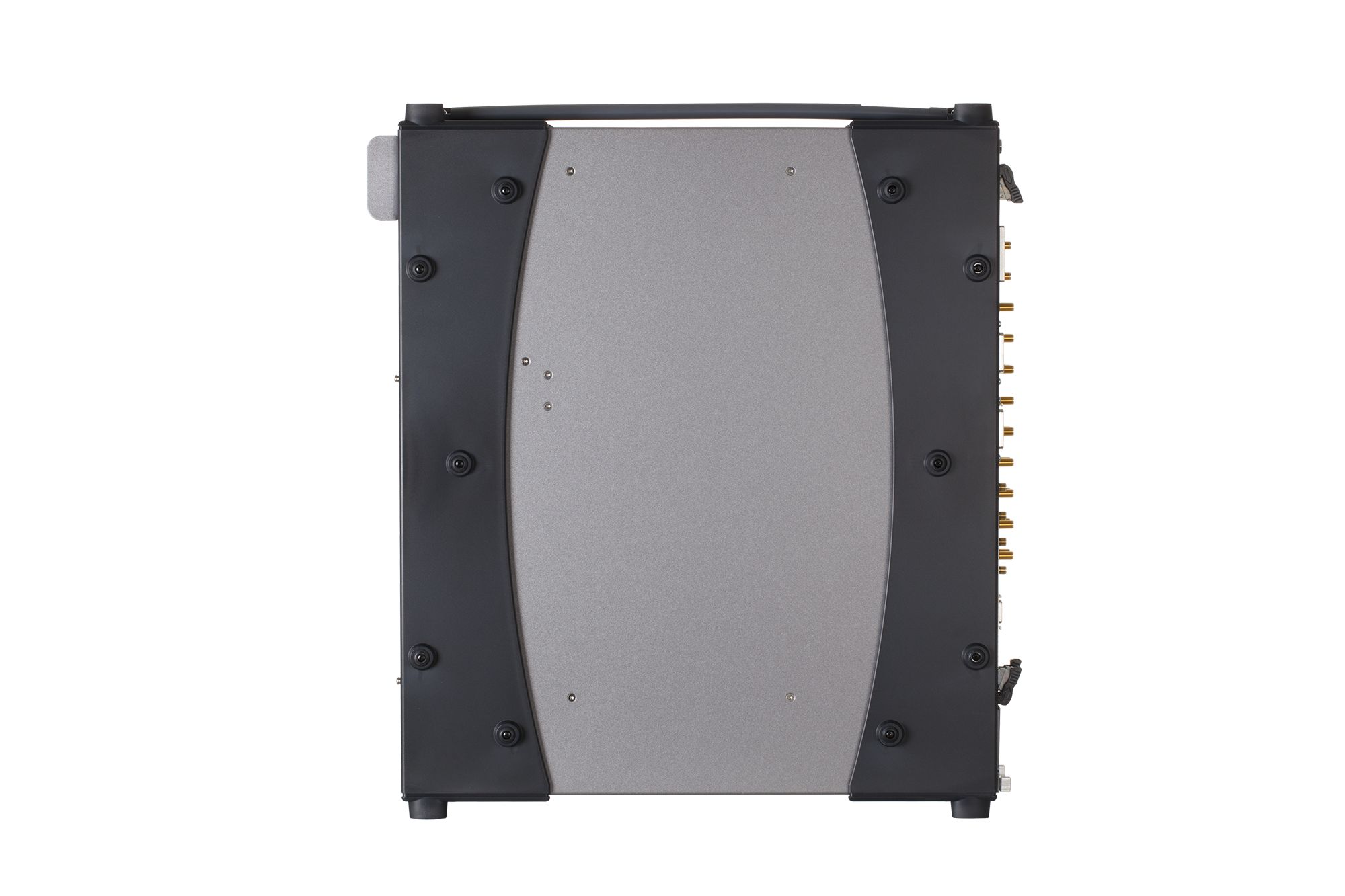

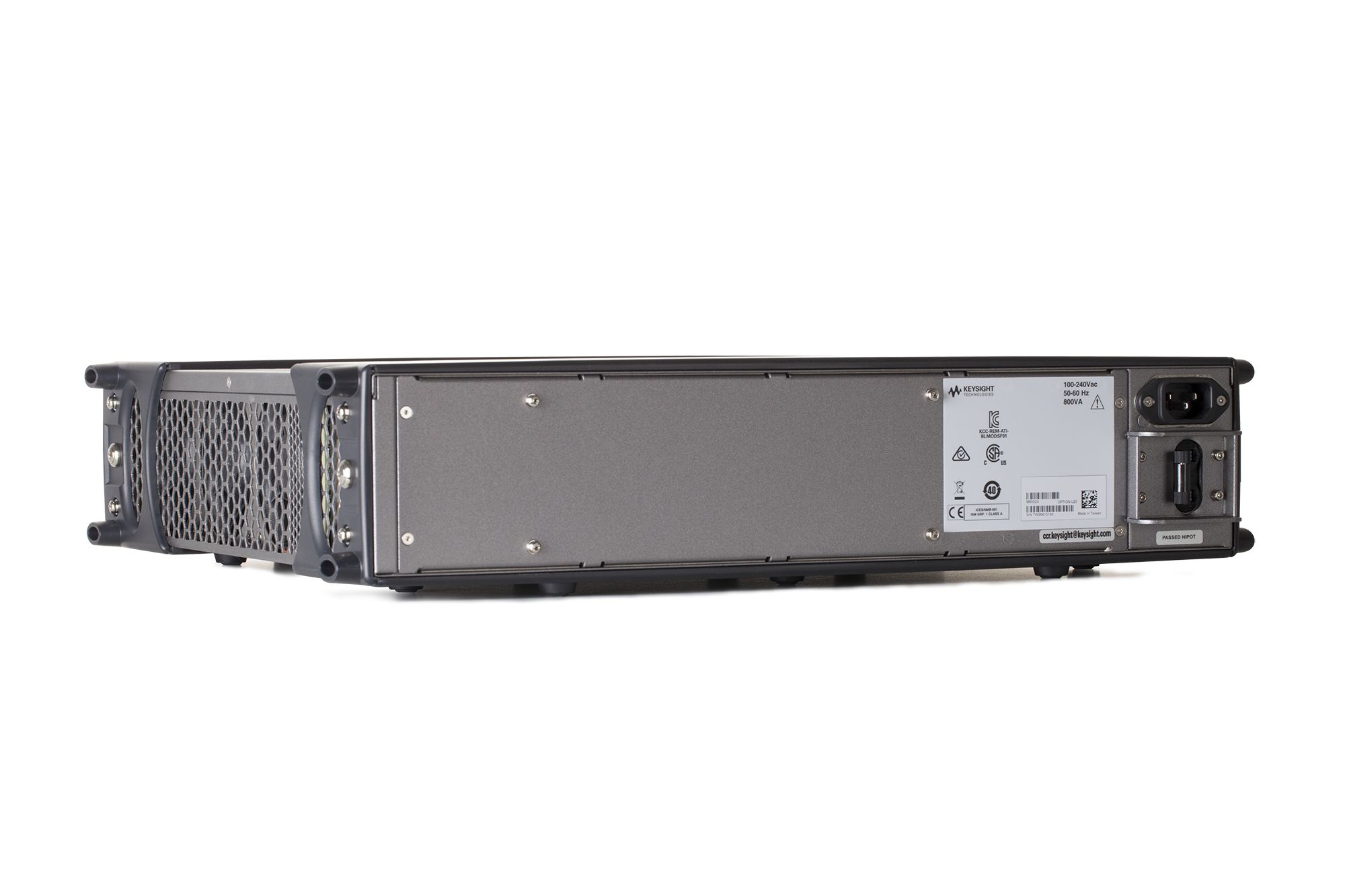

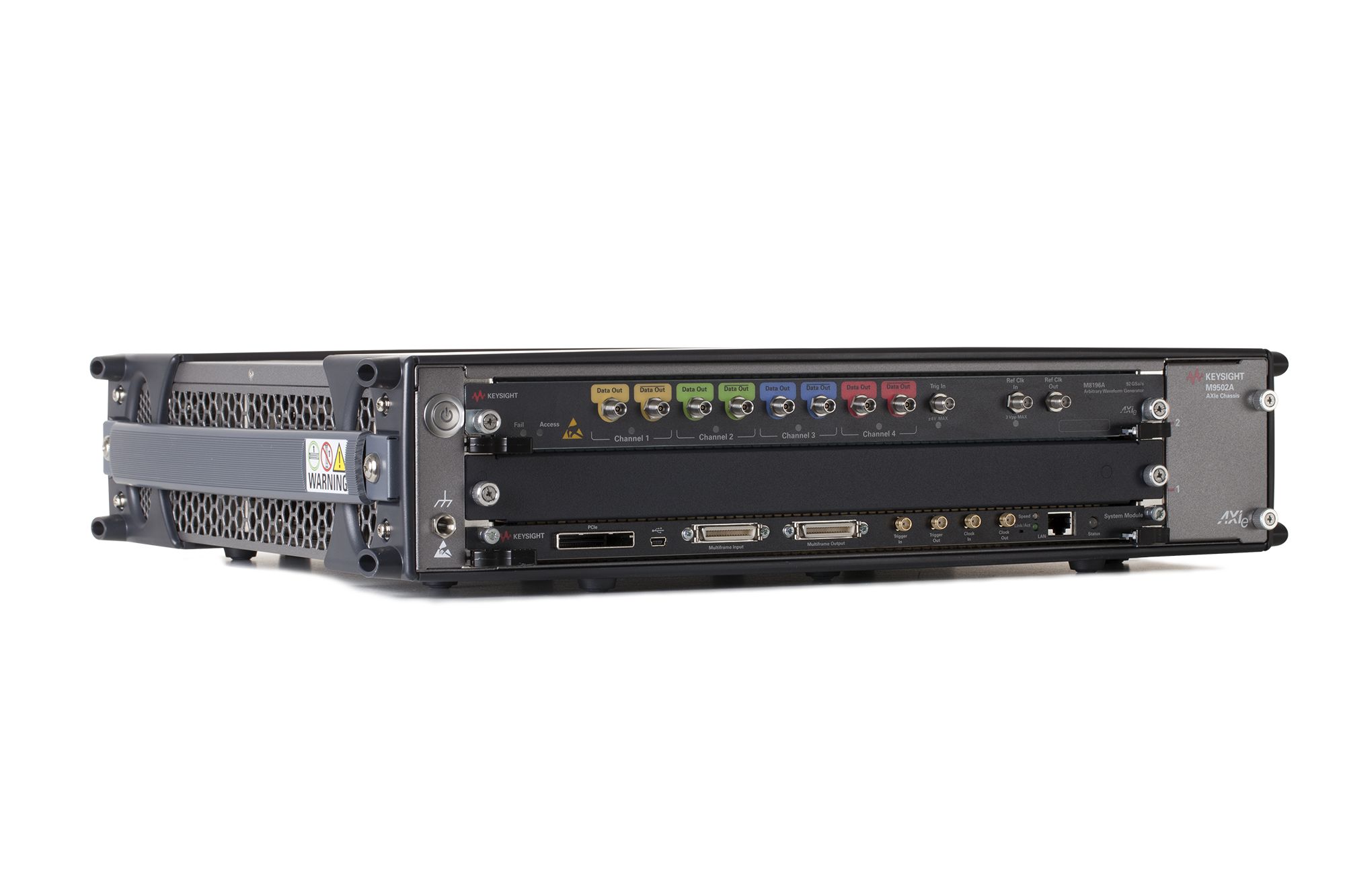

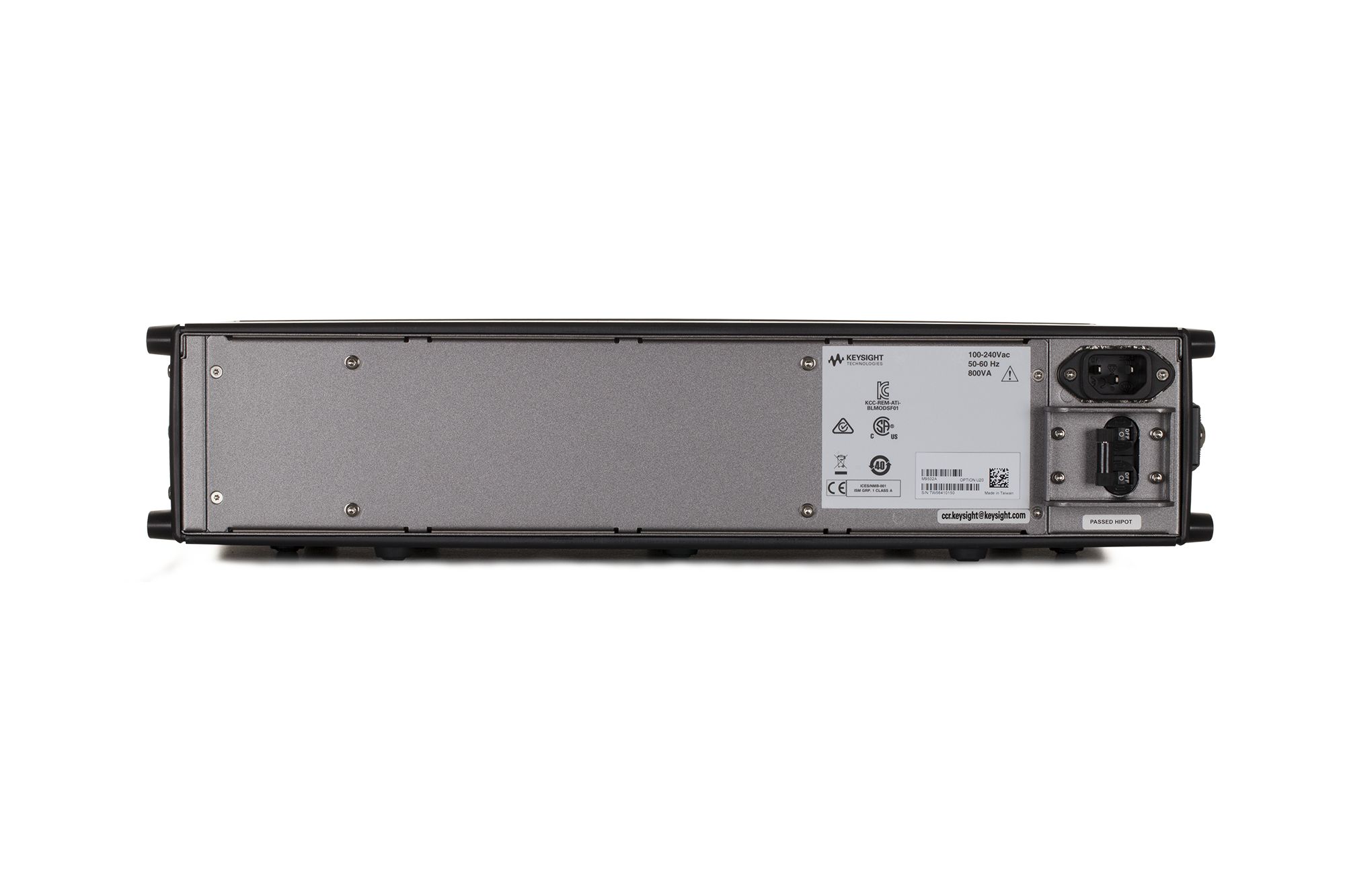

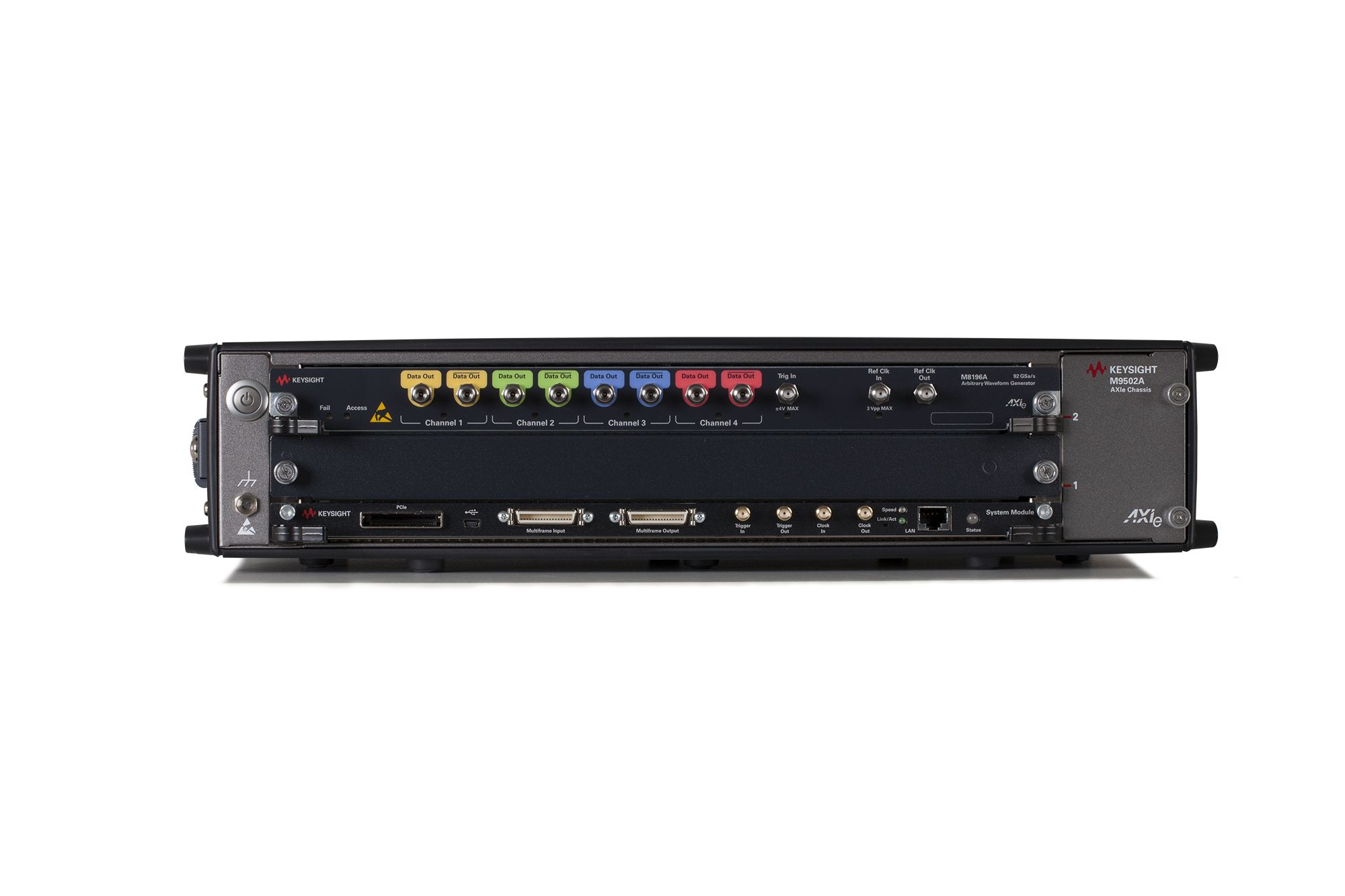

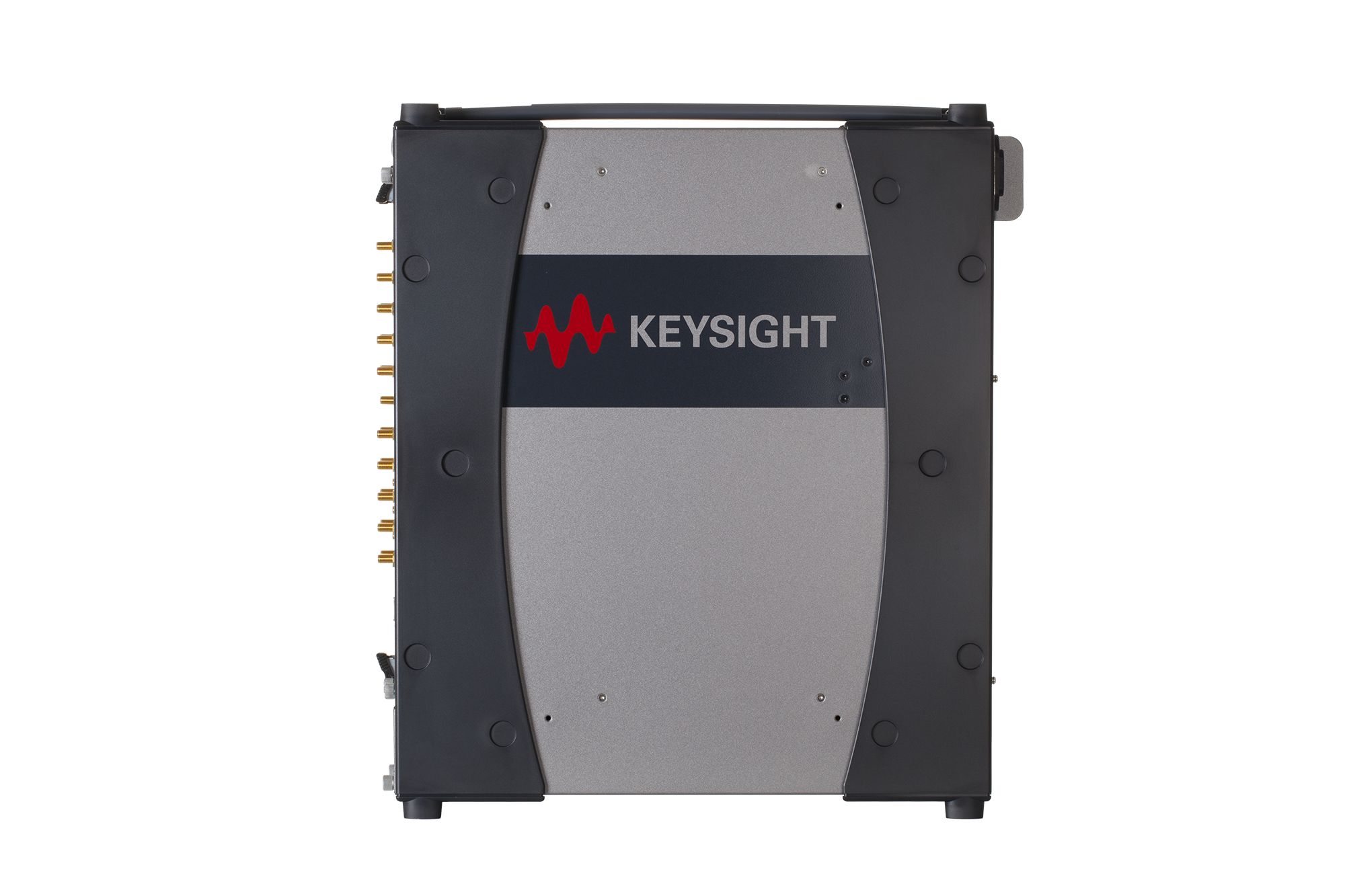

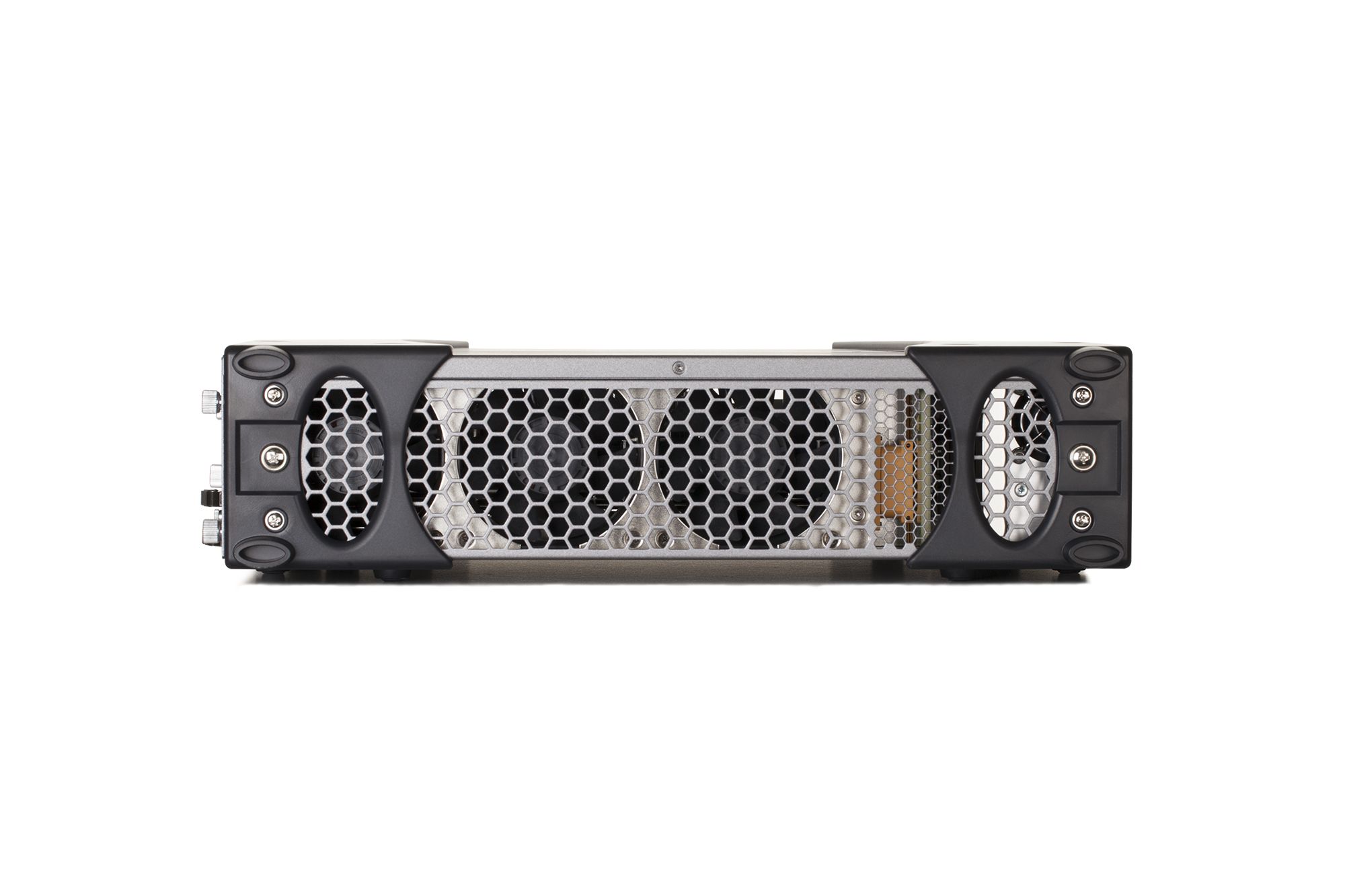

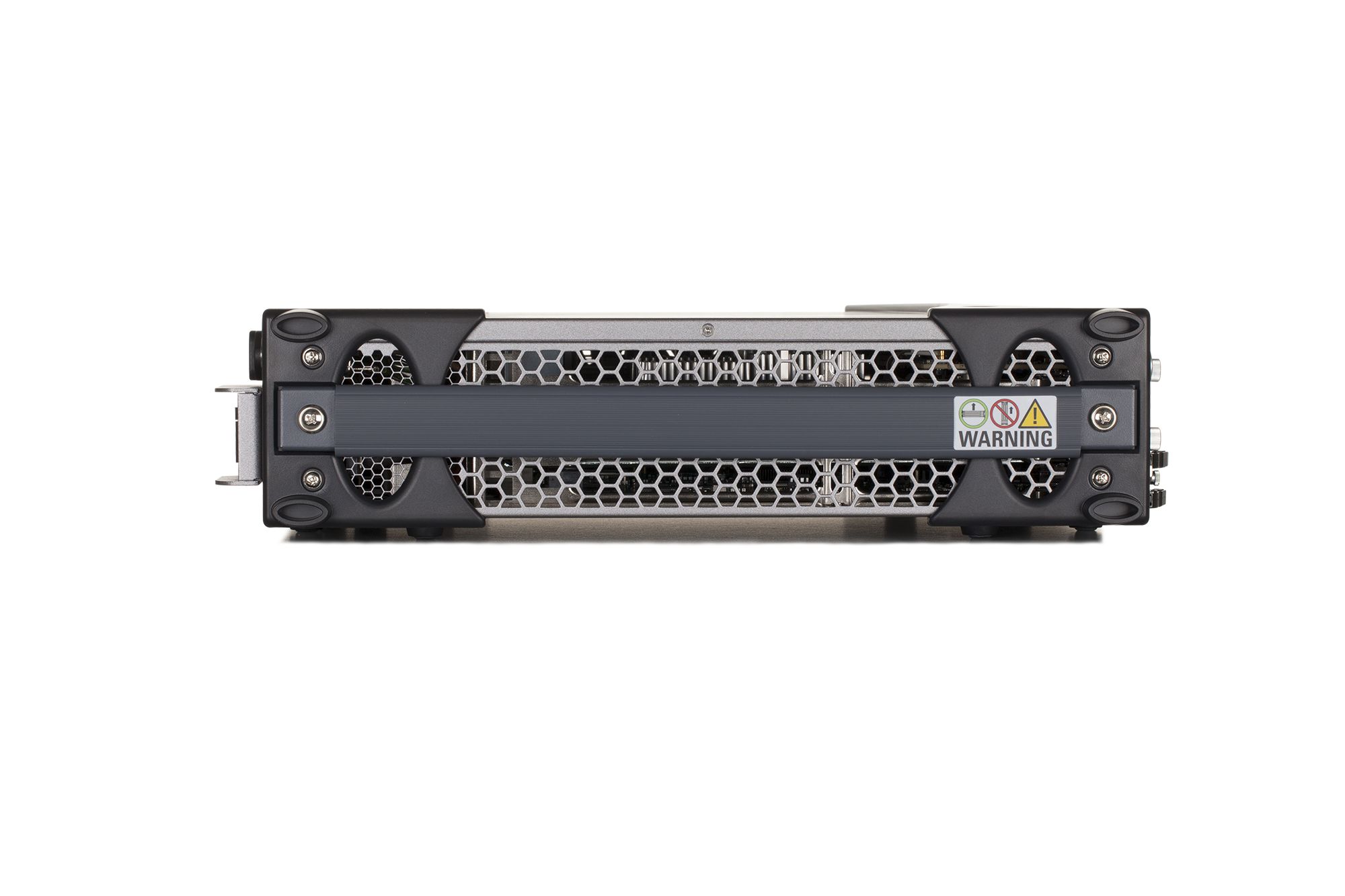

Keysight M8196A-001
1 Channel
USD 163,278.75
List Price USD 217,705.00
Keysight Premium Used
Keysight M8196A-001 USD 163,278.75
From
USD 163,278.75 Save 25%
| 001 | Arbitrary Waveform Generator, 1 Channel, 92 GSa/s | Installed |
| 001 | Arbitrary Waveform Generator, 1 Channel, 92 GSa/s | On request |
| 002 | Arbitrary Waveform Generator, 2 Channels, 92 GSa/s | On request |
| 004 | Arbitrary Waveform Generator, 4 Channels, 92 GSa/s | On request |
| N6171A | MATLAB Software | On request |
| BU2 | Bundle consisting of M9502A AXIe 2-slot chassis with USB | On request |
| BU3 | Bundle consisting of one M9502A 2-slot AXIe Chassis with USB Option and one M9537A AXIe Embedded PC Controller | On request |
| OSP | On request |
Addable options follow the same discount percentage as the listed offer.
Request a customized version of this model by requesting a Custom Quote
Functionality
- provides a combination of high speed, high bandwidth, and high channel density
- high channel density: 1, 2 or 4 channels per AXIe module (number of channels is software upgradeable)
- built-in frequency and phase response calibration for clean output signals
- external clock in and out
Performance
- sample rate up to 92 GSa/s, 8-bit vertical resolution
- 32 GHz analog bandwidth
- amplitude up to 1 Vpp (single-ended), 2 Vpp (differential), voltage window -1.0 to +2.5 V
- supporting signals up to 64 GBaud and beyond
- 512 kSa of waveform memory per channel
- ultra-low intrinsic jitter
- transition times < 9 picoseconds (20% to 80%) with frequency response compensation
- multi-functions with M8070A system software for M8000 Series BER test solutions
- 92 GSa/s sample rate supporting signals up to 64 GBaud on 4 channels in a 1-slot AXIe module simultaneously
Key Applications
200G, 400G and 1 terabit applications demand a new class of generator that simultaneously provides high speed, precision, and flexibility.
- Optical communications (LR4, CFP2-ACO, Coherent, etc.) — 4 synchronized channels allow deterministic emulation and pre-distortion of 2 independent I/Q baseband signals up to 64 GBaud
- Receiver stress test — particularly for multi-level, multi-channel interfaces (NRZ, PAM4, PAM8, DMT, etc.) up to 64 GBaud
- Quantum physics and advanced research — generate any mathematically-defined arbitrary waveforms, ultra-short yet precise pulses, and extremely wideband chirps
- Random interference (RI) and sinusoidal interference (SI) — works with M8020A and M8040A modules. Operate with M8070A BER System control software.
For Keysight Premium Used listings like-new accessories (e. g. a power cord) are included.
Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.
For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.
Support Solutions
KeysightCare
Get full service, just like buying a new instrument. With extended warranty, calibration and technical consulting!
Technical Consulting
Not sure what instrument is the best for your application? Get first class consulting from the OEM
Ready To Get Started?
What You Get
- Keysight M8196A-001 Function/AW Generators
- Fresh Calibration
- Like-New standard accessories
- Like-New Warranty
- Agreed-On configuration
What You Can Add
- Extended Warranty
- KeysightCare Assured / Extended
- Calibration Plan
- Software (depending on model)
