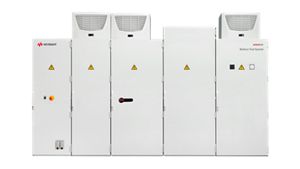

Meet the SL1000A Scienlab Battery Test System Pack Level

The Scienlab SL1000A Battery Test System — Pack Level is an electric system to provide sink and source for high voltage battery packs for automotive and industrial applications.

  • Synchronized control of all components in the test environment, e.g. climate chamber, conditioning of the DUT, and Battery Management System (BMS)
  • Recorded measured values to use as a variable during the remainder of the test sequence
  • Direct evaluation of data using practical analysis tools: post-processing is not necessary
  • Maintenance-free, durable, and reliable test systems with energy recovery for cost-efficient operation
  • Dynamic retracing of the sources set values and thresholds of sources (current, voltage, power)

High Performance for Testing Battery Packs

A battery pack is a complex system involving high voltages and currents, electrical and mechanical components, cooling system and a BMS. All components require thorough testing to draw conclusions about the durability, range, efficiency, and heating of the pack. For the analysis of system behavior, a realistic emulation of the future application must be created even before the first field application; driving and load profiles, reproducible electrical and climatic conditions. The standards set for the test environment are high – the SL1000A offers solutions to meet your needs.

Key Specifications

Output Power

up to ±360 kW

Voltage Range

50 – 1000 V

Current Ranges

±200 A, ±300 A, ±600 A (±2400 A in parallel)

Current Dynamics

-90% – 90%: typ. 1.6 ms

Voltage Measuring Accuracy

±200 mV ±0.05% of measured value

Current Measuring Accuracy

up to ±40/60/120 mA
±0.05% of measured value
