Configurations Available for Silicon Validation (BASE Spec), Add-In Cards and Motherboards (CEM Spec)

  • Validate performance against PCI-SIG® specs
  • Supports PCI Express® 3.0, 2.0, and 1.x receiver designs

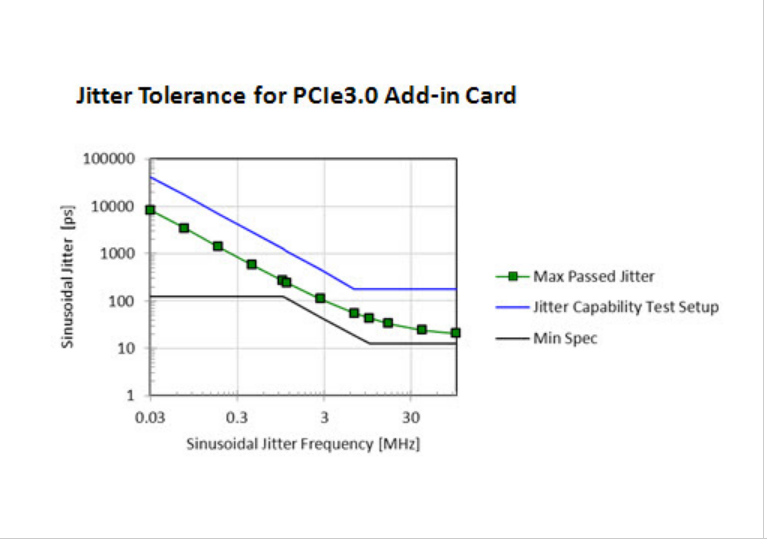

PCIe® 3.0 Add-In Card Receiver Test Setup Sample Configuration





Accessories include:

  • CBB3.0 PCI Express Compliance Fixture (supplied by PCI-SIG)
  • SMP Connector Adapters & Cables (complete list available)
  • Directional Coupler, PSPL 5370-14dB (supplied by Picosecond Pulse Labs)
