Superior power, signal purity, and speed

Keysight portable analog signal generators deliver superior switching speed, lower phase noise, and higher output power than other comparable analog signal generators.

Our general-purpose portable analog signal generators are versatile and offer the ability to:

  • Test devices up to 26 GHz.
  • Characterize devices thoroughly with up to +23 dBm output power and -130 dBc/Hz phase noise.
  • Accelerate testing with 20 µs rapid switching speed.

Visit the Keysight AP5001A or Keysight AP5002A portable analog signal generator product pages for more information.

General-purpose signal generator competitive comparison*



Keysight

AP5001A

Keysight

AP5002A

Rigol DSG3000B

Siglent SSG5000A

R&S

SMCV100B

Frequency Range

9 kHz to 2/4/6.1 GHz

9 kHz to 12/20/26 GHz

9 kHz to 6.5/13.6 GHz

9 kHz to 13.6/20 GHz

4 kHz to 3/6/7.125 GHz

Output Power

-120 to +17 dBm

-120 to +23 dBm

-110 to +13 dBm

-120 to +22 dBm

-120 to +20 dBm

Phase Noise (1 GHz, 20 kHz offset)

-128 dBc/Hz;

-130 dBc/Hz (typ.)

-128 dBc/Hz;

-130 dBc/Hz (typ.)

110 dBc/Hz;

-116 dBc/Hz (typ.)

-120 dBc/Hz (typ.)

-125 dBc/Hz

Frequency Switching Speed

200 μs;

20 μs (typ.)

300 µs;

200 µs (typ.)

10 ms (typ.)

10 ms (typ.)

5 ms

*Competitive data based on Rigol, Siglent, and Rohde & Schwarz datasheets (August 2024).

Find the model that's right for you

Already own one of these products? Visit Technical Support
Prev
AP5001A
AP5001A Analog Signal Generator, 9 kHz to 6.1 GHz
Starting from
Frequency: 6.1 GHz
Harmonics @1 GHz: -40 dBc
Output Power @1 GHz: +17 dBm
Phase Noise @1 GHz (20 kHz offset): -130 dBc/Hz
AP5002A

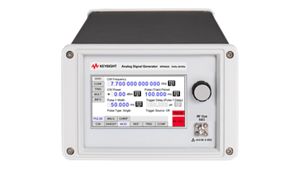

AP5002A Analog Signal Generator, 9 kHz to 26 GHz
Starting from
Frequency: 26 GHz
Harmonics @1 GHz: -40 dBc
Output Power @1 GHz: +23 dBm
Phase Noise @1 GHz (20 kHz offset): -130 dBc/Hz
ellipsis
View and Compare All Models
Next

Signal generator spectral purity

Keysight portable signal generators offer excellent signal purity. Learn more about the definition of signal purity, why it is important for RF applications, and the impact of signal generator spectral purity on measurements.

How Signal Generator Spectral Purity Affects Measurements

Signal Generator Purity
KeysightCare

Three-year KeysightCare

Keysight portable signal generators come with three years of KeysightCare technical support and a three-year extended warranty to derisk your projects. Receive personalized, proactive, and priority support. Find answers in the knowledge center, manage service requests, and interact with Keysight experts. KeysightCare Support plans are upgradable to include calibration coverage.

Learn more: KeysightCare Support
