5G Release 16 Signal Analysis
Stay compliant with 5G release 16 signal analysis standards
Ensure Accurate 5G Release 16 Signal Analysis According to 3GPP Standards
In light of ever-evolving standards, signal analysis test solutions need to support higher frequencies, wider bandwidths, and new physical layer capabilities. Base stations must now pass new conformance tests to ensure they deliver on their promises, according to 3rd Generation Partnership Project (3GPP) signal analysis (or spectrum analysis) standards. 5G New Radio (NR) Release 16 base station transmitter conformance testing at high frequencies, such as millimeter-wave (mmWave), requires reliable signal analysis testing solutions to ensure accurate and reliable results.
The built-in low-noise amplifier (LNA) at the front-end of a signal analyzer (spectrum analyzer) reduces system noise figure and helps to obtain the best 5G signal analysis performance at higher frequencies and wider bandwidths. This signal analyzer (spectrum analyzer) design solution is ideal for 5G NR FR1 and FR2 applications and ensures accurate and reliable signal quality measurement in 5G base station transmitters using signal analyzers.
Comply 3GPP-Compliant 5G signal analysis
Ensure accuracy in your 5G signal analysis
Overcome mmWave testing challenges

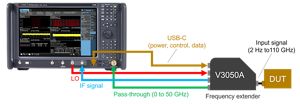

Get up to 110 GHz Frequency/4 GHz BW
Speed up your 5G Release 16 signal analysis
Achieve up to 40% faster speed with VSA SW
Keysight 5G Release 16 Signal Analysis Solution

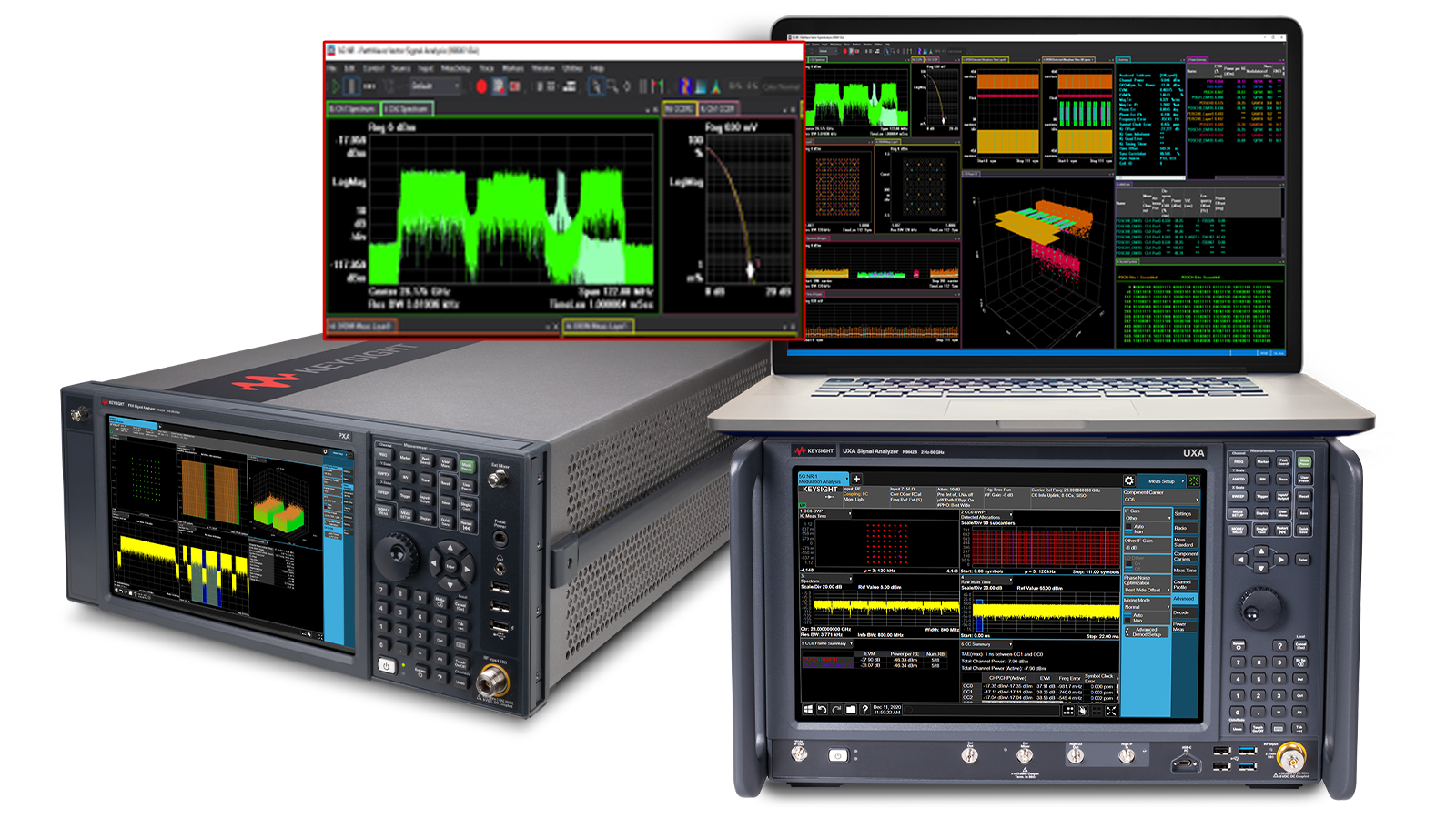

Keysight's 5G Release 16 signal analysis solution combines the power of the UXA and PXA signal analyzers (spectrum analyzers) with the PathWave X-Series family of multi-touch applications and PathWave Vector Signal Analysis (89600 VSA) software. Enable new performance levels for high-frequency and wide-bandwidth applications in 5G base station transmitters with signal analysis for 5G NR FR1, FR2, and beyond.
-
PXA X-Series Signal Analyzer
Hardware for 2 Hz to 26.5 GHz
Watch the 5G Release 16 Signal Analysis Demo
Learn More About 5G Release 16 Signal Analysis
Base Station Signal Analysis Conformance Test Requirements
According to the 3GPP standards, the main signal analysis (spectrum analysis) test requirements for 5G base station transmitters are: Output Power, Output Power Dynamics, Transmit ON/OFF Power, Transmit Signal Quality, Unwanted Emissions, and Transmitter Intermodulation.
Discover the 3GPP test requirements for base station transmitter signal analysis (spectrum analysis). Learn industry tips and tricks to optimize signal analysis (spectrum analysis) at high frequencies, such as mmWave, and wide bandwidths.
