InfiniiVision HD3 Series Oscilloscopes
4x the resolution, 1/2 the noise floor in a portable oscilloscope
Already own this product? View Technical Support
Join Us at the HD3 Virtual Event
Learn how to debug designs with 4x the resolution and 1/2 the noise floor in consumer electronics, power supply testing, and automotive.
Buy an Oscilloscope, Get 100 Mpts Memory Free
Capture longer time spans at full sample rate when you purchase an HD3 oscilloscope.
Highlights
Separate signal from noise
Perform digital debugging using a portable oscilloscope with a custom application-specific integrated circuit (ASIC) that delivers four times more vertical resolution and half the injected noise of other general-purpose oscilloscopes. Troubleshoot your design and ensure product quality by debugging with an oscilloscope that can see the small signals beyond the noise to catch the slightest and most infrequent signal glitches.
- Increase vertical resolution by four times with a 14-bit analog-to-digital converter (ADC).
- See smaller signals with a 50 µVRMS noise floor.
- Find signal glitches with an uncompromised 1.3 M waveform / second update rate.
- Capture longer time spans at full sample rate with 100 Mpts of deep memory.
- Display up to four independent signals and control the scaling individually.
- Isolate signals in seconds with zone triggering — simply draw a box on the screen.
- Characterize signals, hunt for errors, and save automatically with Keysight Fault Hunter.
- Perform advanced analysis with fast Fourier transforms, histograms, and Bode plots.
Debug designs with 4x the resolution, 1/2 the noise floor
Ensure product quality by debugging with an oscilloscope that can see the small signals beyond the noise.
14-bit ADC delivering four times the resolution
Capture smaller signals with a 50 µVRMS noise floor
All electronic devices, including oscilloscopes, generate some level of noise. However, the goal is to minimize the noise as much as possible. A lower noise floor means that the oscilloscope has less impact on the signal, resulting in more accurate measurements.
The Keysight InfiniiVision HD3 sets a new benchmark in noise floor performance with a 50 µVRMS noise floor at full 1 GHz bandwidth. You can further reduce the noise with bandwidth limiting and waveform averaging options on the HD3.
Advanced analysis
Automate complex measurements with advanced software capabilities:
- Convert time-domain signals into frequency-domain signals using a fast Fourier transform (FFT).
- Compare signals to pre-defined templates for quick pass / fail analysis with mask testing.
- Analyze the statistical distribution of jitter and noise with waveform and measurement histograms.
- Perform frequency response analysis with Bode plots.
- Isolate signals in seconds with zone touch triggering — simply draw a box with your finger on the screen.
- Characterize signals, hunt for errors, and save them automatically with Fault Hunter.
7-in-1 instrument
- Oscilloscope with two or four analog channels
- Mixed-signal oscilloscope to add 16 digital channels
- Protocol analyzer
- Frequency response analyzer
- 100-MHz arbitrary waveform generator
- Three-digit digital voltmeter
- Eight-digit counter with totalizer
Probes for every application
- Discover the Keysight N2843A passive probe that offers 500 MHz bandwidth, a 10:1 attenuation ratio, and a high input resistance of 10 MΩ (standard one per channel).
- Explore the mixed-signal oscilloscope (MSO) capability that comes standard on the HD3. If you already use one of Keysight's 16-digital channel MSO cables, simply plug it in.
Need additional functionality? Keysight offers a broad range of voltage, current, and optical probing solutions for oscilloscopes.
Accelerate your designs with technical support
Your oscilloscope purchase includes three years of warranty and three years of KeysightCare Technical Support, providing unlimited access to technical experts and a comprehensive knowledge center. Receive personalized, proactive, and priority support. Find answers in the knowledge center, manage service requests, and interact with Keysight experts.
Extend your peace of mind and eliminate budgetary surprises for up to five years by upgrading to KeysightCare Enhanced. Trust your test results with calibrated in-tolerance instruments and accurate measurements. Available in select countries.
Key Specifications
Bandwidth
200 MHz to 1 GHz
ADC
14 bits
Noise Floor
50 µVRMS
Waveform Update Rate
1,300,000 wfms/s
Max Memory Depth
100M points
Want to see more specifications?
Find the Model That's Right for You

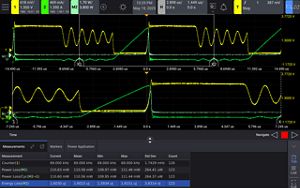

Application Software and Upgrades
Protect your investment with upgradability at any time for features like bandwidth up to 1 GHz, 100 Mpts of memory, and application-specific oscilloscope software. Decode serial buses faster with hardware-based decoding and a broad range of supported serial buses.
