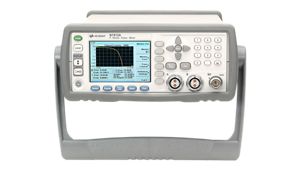

N1912A P-Series Dual Channel Power Meter
The Keysight N1912A P-Series dual channel power meter provides peak, peak-to-average ratio, average power, rise time, fall time NS Pulse width measurements.
Konfigurationsoptionen
E-Mail löschenHIGHLIGHTS
- 30 MHz video bandwidth
- Single shot real time capture at 100 Msample/s per second
- Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
- 22 Predefined formats: WiMAX, DME, HSDPA, etc.
- One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
- Internal Zeroing and Calibration while connecting to the DUT
- A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.
When used with the N192XA wideband power sensors, the N1911/12A P-Series power meter provides a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability.
- LXI-C Compliance
- Average triggering for average power measurement
- Versatile connectivity with USB, LAN and GPIB standard
- High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
- Compatible with the industry standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
- Compatibility with E932x power sensors
- Difference and ratio math functions : (A-B, B-A, A/B and B/A)
- 2-year calibration cycle
Can’t find what you’re looking for? Try our special options.
Easy measurement with Software Downloads
The N1911A/12A P-series power meters are supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform complex pulse analysis and standard average power measurement.
Need to connect this instrument to your PC? View our wide range of GPIB, USB and Instrument Control products
Automate and perform data analysis on your test system easily with Keysight VEE Pro
WICHTIGSTE SPEZIFIKATIONEN
Channels
1
Compatible Power Sensors / Power Meters
• N8480 Series • 8480 Series • E441xA Series • E9320 Series • E9300 Series • N192xA Series
Connector Type
Several connector types are available, power sensors dependent
Features
Peak, pk-to-avg, average power, rise/fall time measurements Internal zeroing and calibration 30 MHz video BW, 100 MSa/s continuous sampling Come with BenchVue PM App software license, BV0007B
Frequency Range
• N8480 Sensors 100kHz to 50 GHz • 8480 Sensors 10 MHz to 50 GHz • Q/R/V/W8486A Sensors 26.5 GHz to 110 GHz • E441XA CW Sensors 10 MHz to 33 GHz • E9300 Sensors 9 kHz to 24 GHz • E9320 Sensors 50 MHz to 18 GHz • N192X Sensors 50 MHz to 40 GHz
Power Range
• N1920 Sensors -35 to +20 dBm • E9320 Sensors -65 to +20 dBm • E9300 Sensors -60 to +44 dBm • E441XA Sensors -70 to +20 dBm • 8480 Sensors -70 to +44 dBm • Q/R/V/W8486A Sensors -30 dBm to +20 dBm
Channels
Compatible Power Sensors / Power Meters
Connector Type
Features
Frequency Range
Power Range
1
• N8480 Series • 8480 Series • E441xA Series • E9320 Series • E9300 Series • N192xA Series
Several connector types are available, power sensors dependent
Peak, pk-to-avg, average power, rise/fall time measurements Internal zeroing and calibration 30 MHz video BW, 100 MSa/s continuous sampling Come with BenchVue PM App software license, BV0007B
• N8480 Sensors 100kHz to 50 GHz • 8480 Sensors 10 MHz to 50 GHz • Q/R/V/W8486A Sensors 26.5 GHz to 110 GHz • E441XA CW Sensors 10 MHz to 33 GHz • E9300 Sensors 9 kHz to 24 GHz • E9320 Sensors 50 MHz to 18 GHz • N192X Sensors 50 MHz to 40 GHz
• N1920 Sensors -35 to +20 dBm • E9320 Sensors -65 to +20 dBm • E9300 Sensors -60 to +44 dBm • E441XA Sensors -70 to +20 dBm • 8480 Sensors -70 to +44 dBm • Q/R/V/W8486A Sensors -30 dBm to +20 dBm
Mehr anzeigen
Channels:
1
Compatible Power Sensors / Power Meters:
• N8480 Series • 8480 Series • E441xA Series • E9320 Series • E9300 Series • N192xA Series
Connector Type:
Several connector types are available, power sensors dependent
Features:
Peak, pk-to-avg, average power, rise/fall time measurements Internal zeroing and calibration 30 MHz video BW, 100 MSa/s continuous sampling Come with BenchVue PM App software license, BV0007B
Frequency Range:
• N8480 Sensors 100kHz to 50 GHz • 8480 Sensors 10 MHz to 50 GHz • Q/R/V/W8486A Sensors 26.5 GHz to 110 GHz • E441XA CW Sensors 10 MHz to 33 GHz • E9300 Sensors 9 kHz to 24 GHz • E9320 Sensors 50 MHz to 18 GHz • N192X Sensors 50 MHz to 40 GHz
Power Range:
• N1920 Sensors -35 to +20 dBm • E9320 Sensors -65 to +20 dBm • E9300 Sensors -60 to +44 dBm • E441XA Sensors -70 to +20 dBm • 8480 Sensors -70 to +44 dBm • Q/R/V/W8486A Sensors -30 dBm to +20 dBm
Speed:
> 1500 readings/second
