D9030DPHC MIPI D-PHY Compliance Test Software for Infiniium Oscilloscopes
MIPI D-PHY V3.5 TX Compliance Test Software
Vertrieben durch:
- Autorisierte Vertriebspartner
- Keysight Direct Sales
Highlights
Features
- Supports MIPI D-PHY testing based on v3.5 specification, up to 9.0 Gbps
- Supports LP and HS tests
- Automated oscilloscope measurement setup, testing and reporting for increased accuracy, time-savings and repeatability
- Automated margin analysis
Requirements
- Infiniium oscilloscope with firmware 11.51.00102 or greater
- D9010DMBA De-embedding software (Precision Probe, InfiniiSim Basic)
- D9020SCNA InfiniiScan Event Identification Software
- D9020JITA EZJIT Complete – Jitter and Vertical Noise Analysis Software

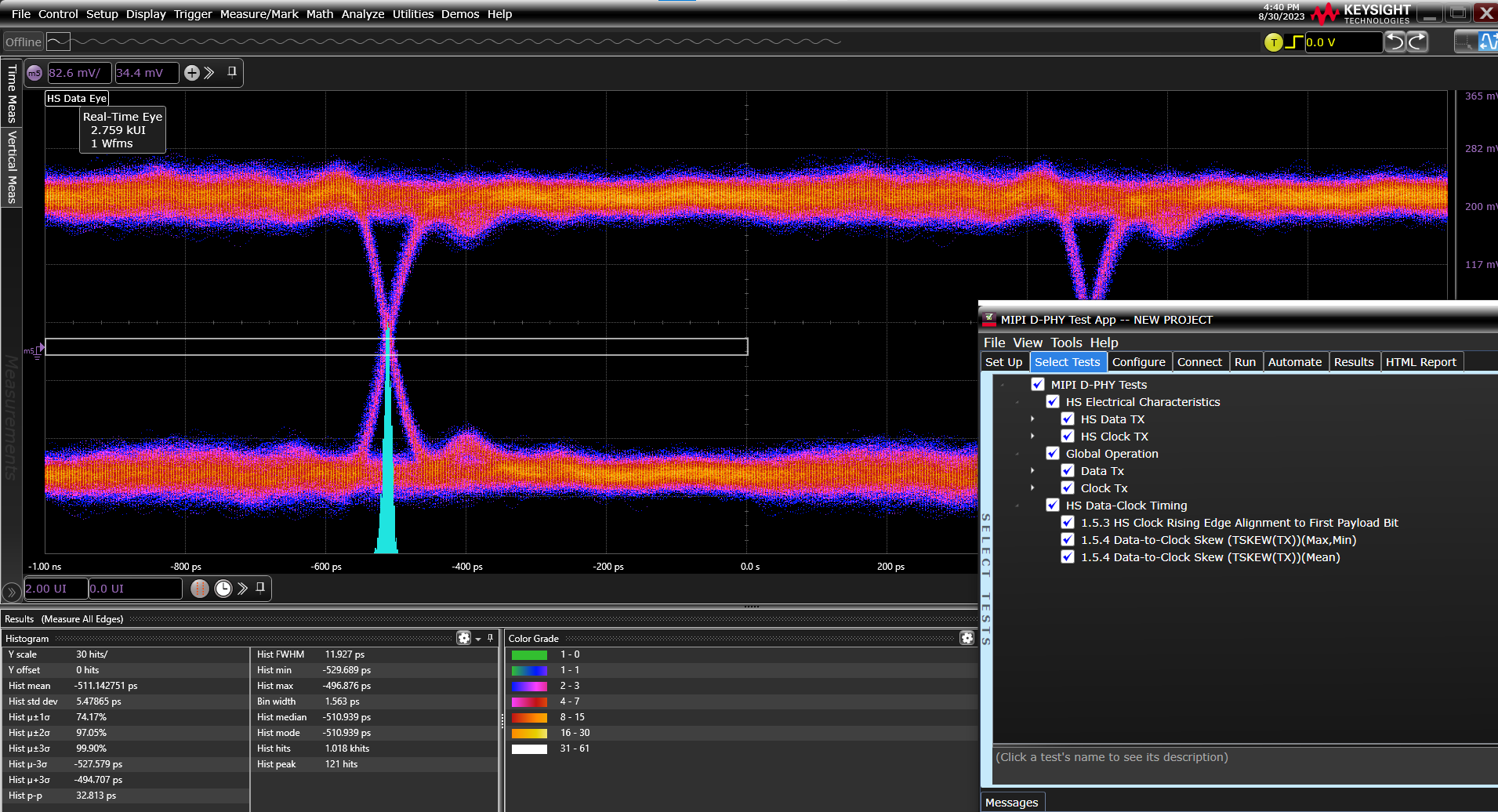

The MIPI D-PHY compliance test software for Infiniium oscilloscopes gives you a fast, easy way to validate and debug your D-PHY data links. The D-PHY electrical test software allows you to automatically execute D-PHY conformance tests for your CSI and DSI architectures. The application automatically displays the results in a flexible report format. In addition to measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.
Free Trials
D9030DPHC MIPI D-PHY Compliance Test Application Software and 30-Day Trial License
Keysight D9030DPHC MIPI D-PHY compliance test application software for Infiniium MXR and UXR-Series oscilloscopes.
